Features:
-
High-Speed Processing
-
34ns instruction execution for demanding applications
-
-
Large Program Capacity
-
252K steps for complex automation tasks
-
-
Built-in Ethernet
-
Enables remote monitoring and control
-
-
Multiple Programming Options
-
Supports various IEC 61131-3 languages
-
-
Extensive Expansion
-
64 module capacity for flexible system design
-
-
Data Security
-
Password protection for programs and devices
-
-
Real-Time Monitoring
-
Built-in diagnostics for system maintenance
-
-
Compatibility
-
Works with Q Series I/O and special function modules
-
Specification
General
-

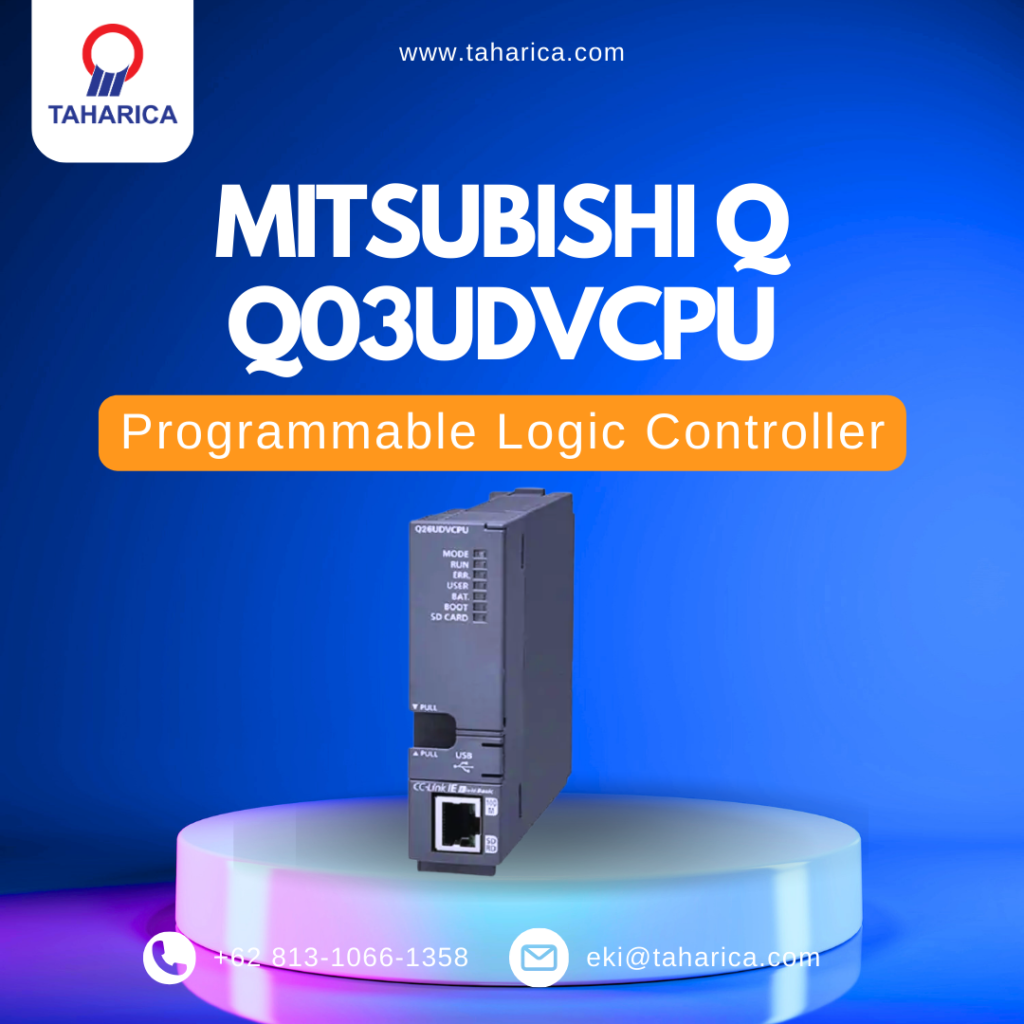

Model: Q03UDVCPU
-
Type: High-Performance Universal CPU Module
-
Series: Mitsubishi Q Series (Q03UDV line)
-
Program Capacity: 252K steps
-
Memory Type: SDRAM (backed by SRAM cartridge for data retention)
-
Processing Speed: 34ns per basic instruction (LD)
2. I/O Capabilities
-
Max I/O Points: 4,096 points (with expansion)
-
Built-in I/O: None (requires separate I/O modules)
3. Power Supply
-
Input Voltage: DC 24V (via base unit)
-
Power Consumption: 1.8A @ 5V, 0.3A @ 24V
4. Communication
-
Built-in Ports:
-
Ethernet (10/100BASE-TX)
-
USB (for programming)
-
RS-232 (for peripheral connection)
-
-
Supported Protocols:
-
MELSEC Communication
-
FTP Server
-
Socket Communication
-
Modbus/TCP
-
5. Expansion
-
Max Bases: 4 levels (with extension cables)
-
Max Modules: 64 modules (including CPU)
6. Programming
-
Supported Software: GX Works2, GX Works3
-
Programming Languages:
-
Ladder Logic
-
Structured Text
-
Instruction List
-
Sequential Function Chart
-
7. Special Functions
-
PID Control: Built-in
-
Data Logging: Supported
-
Clock Function: Built-in real-time clock
-
Floating Point: Supported
8. Environmental
-
Operating Temp.: 0°C to 55°C
-
Storage Temp.: -25°C to 75°C
-
Humidity: 10-90% RH
9. Physical
-
Dimensions: 98mm (W) × 90mm (H) × 89mm (D)
-
Weight: 0.5kg
