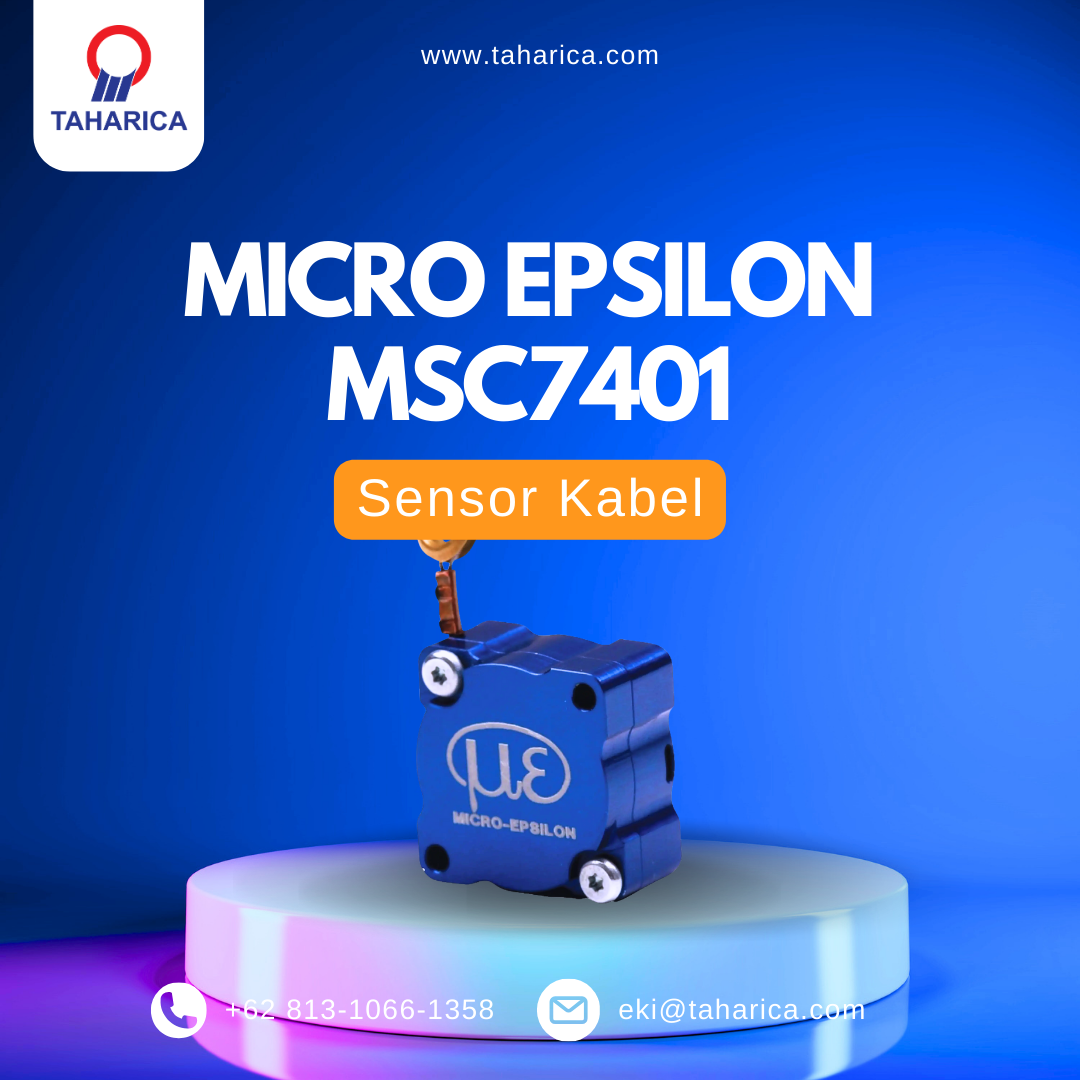

Micro epsilon MSC7401
Micro Epsilon

Micro epsilon MSC7401

Overview

Kontroler kompak untuk sensor perpindahan induktif (DTA/LVDT dan LDR setengah jembatan) dari Micro-Epsilon, dengan housing aluminium IP67 untuk tugas pengukuran industri.

Fitur Utama

  • Kompatibel dengan sensor DTA (LVDT, full-bridge) dan LDR (half-bridge)
  • Housing aluminium die-casting kokoh, IP67
  • Resolusi tinggi dan linearitas ≤ ±0,02% FSO
  • Pengaturan lewat tombol atau software, termasuk penyesuaian nol simetris atau teach-in dua titik
  • Keluaran analog dan RS485; antarmuka Ethernet, EtherCAT, PROFINET, atau EtherNet/IP lewat modul antarmuka
  • Cocok untuk produksi serial di permesinan dan otomasi
Tanya via WhatsApp
Merk
Micro Epsilon
Kategori
Sensor

Detail Produk

Specification Value
Specification
Number of Measurement Channels 1
Compatibility Full-bridge sensor/LVDT (DTA series), half-bridge (LDR series)
Resolution DTA / LDR 13 bits (0.012% FSO) / 12 bits (0.024% FSO) at 50 Hz
Frequency Response (-3 dB) 300 Hz (adjustable via software only)
Linearity ≤ ±0.02% FSO
Temperature Stability DTA ≤ 100 ppm FSO/K; LDR ≤ 125 ppm FSO/K
Supply Voltage 14 … 30 VDC (5 … 30 VDC with restrictions)
Max. Current Consumption 40 mA
Digital Interface RS485 / PROFINET / EtherNet/IP / Ethernet / EtherCAT (via interface module)
Analog Output (0)2 … 10 V; 0.5 … 4.5 V; 0 … 5 V or 0(4) … 20 mA
Temperature Range -40° to +85°C (storage and operation)
Protection Class IP67 (plugged)
Material / Weight Aluminum die casting; approx. 200 g
