Description
Description
Features:
-
Ultra-Compact Design
-
Smallest in FX3 series, ideal for space-constrained installations.
-
-
Relay Output Flexibility
-
Handles both AC/DC loads (2A per point).
-
-
Fast Execution
-
0.21 μs/instruction for rapid response.
-
-
Battery-Free Operation
-
EEPROM memory eliminates battery maintenance.
-
-
Easy Connectivity
-
USB + RS-422 ports for hassle-free programming.
-
-
Basic Expansion
-
Supports up to 4 modules (analog, communication, etc.).
-
-
Robust Construction
-
Withstands vibration & industrial noise.
-
-
LED Status Indicators
-
Clear POWER/RUN/ERROR monitoring.
-
Specification
General
-

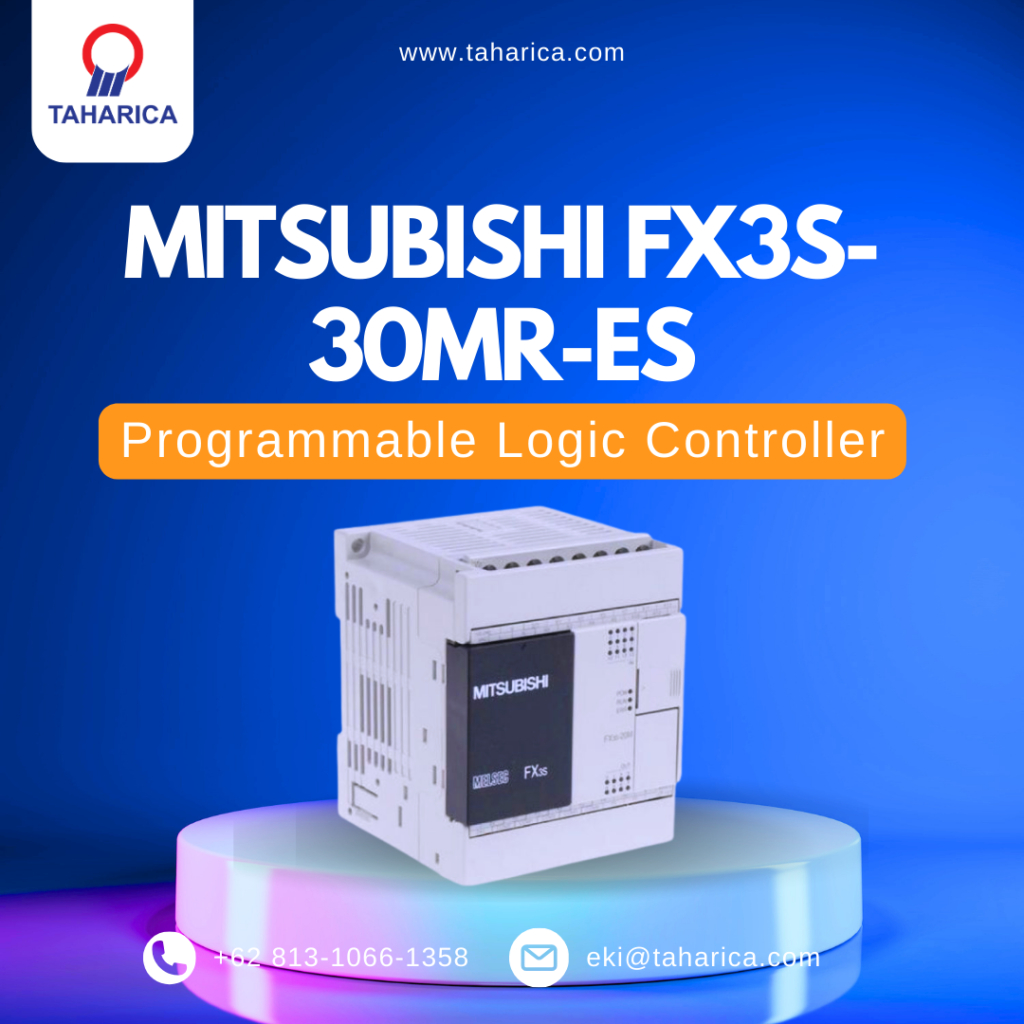

Model: FX3S-30MR-ES
-
Type: 30 I/O Point Micro PLC (AC Power Supply, Relay Output)
-
I/O Configuration:
-
18 Digital Inputs (24V DC, sink/source)
-
12 Relay Outputs (250V AC/30V DC, 2A per point)
-
-
Program Memory: 16K steps (built-in EEPROM, no battery backup)
-
Processing Speed: 0.21 μs per basic instruction
2. Power Supply
-
Input Voltage: 100-240V AC (50/60Hz)
-
Power Consumption: 15W (max)
-
Inrush Current: 20A max for 5ms
3. Input Specifications
-
Input Voltage: 24V DC ±10%
-
Input Current: 5mA (24V DC)
-
ON/OFF Response Time: 10ms max (adjustable via software)
4. Output Specifications
-
Output Type: Relay (Mechanical Contact)
-
Max Switching Voltage: 250V AC/30V DC
-
Max Switching Current: 2A per point
-
Contact Life: 100,000 operations (resistive load)
5. Communication
-
Built-in Ports:
-
1x RS-422 (for programming)
-
1x USB (for programming)
-
-
Optional Communication:
-
FX3S-232-BD (RS-232)
-
FX3S-485-BD (RS-485)
-
6. Expansion Capability
-
Max Expansion Modules: 4 units (FX3S-compatible only)
-
Max I/O Points: 128 points (including main unit)
7. Environmental
-
Operating Temp.: -10°C to +55°C
-
Humidity: 10-90% RH (non-condensing)
8. Physical
-
Dimensions: 90mm (W) × 90mm (H) × 75mm (D)
-
Weight: 0.6kg
