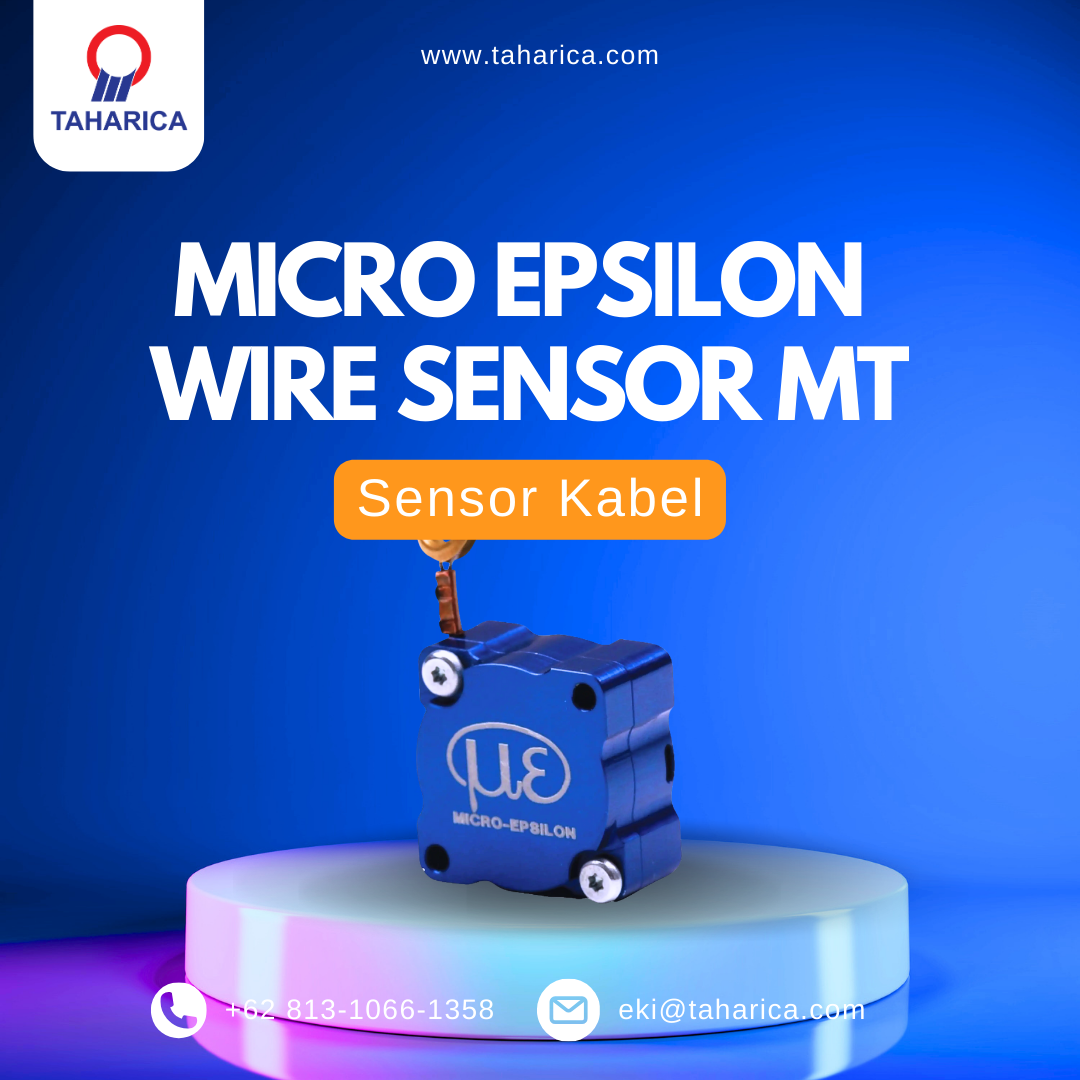

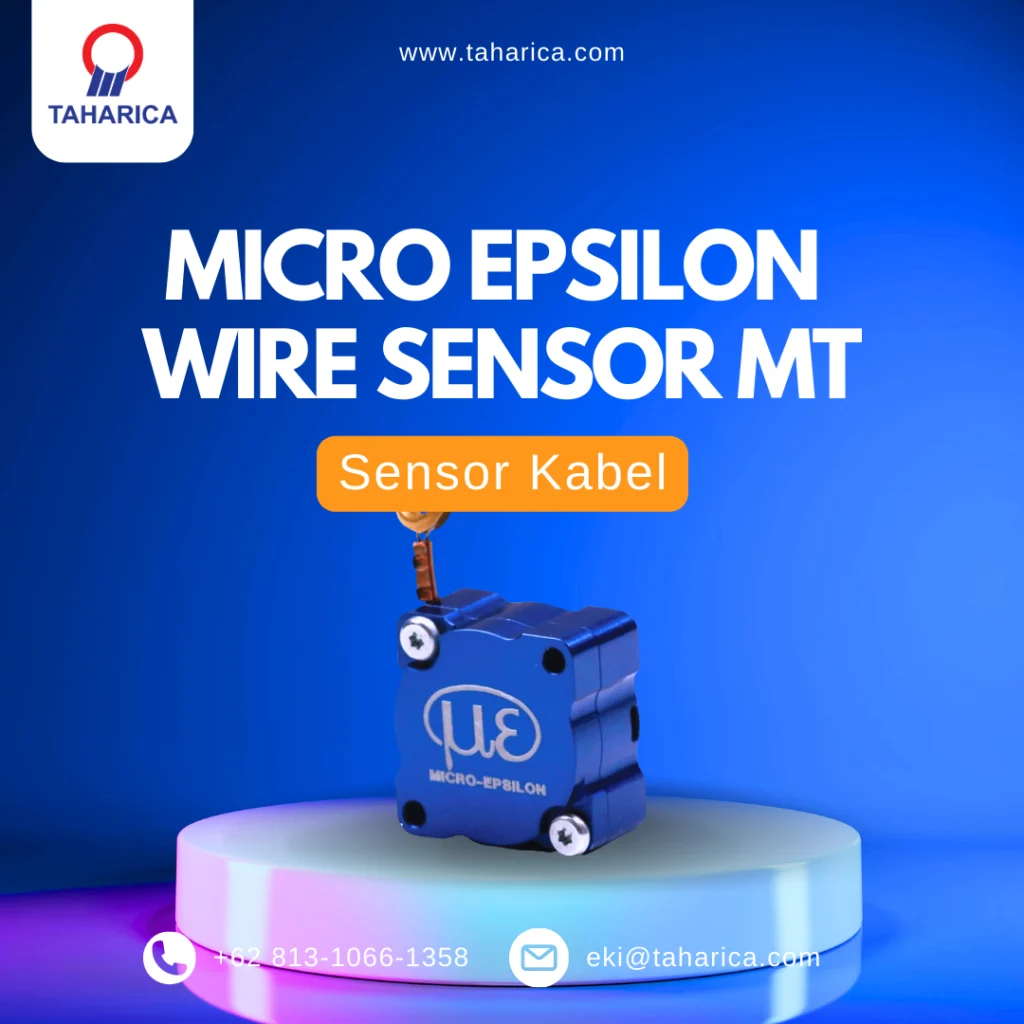

Micro Epsilon Wire Sensor MT
Micro Epsilon

Micro Epsilon Wire Sensor MT

Overview

Sensor draw-wire miniatur seri wireSENSOR MT dari Micro-Epsilon dengan output potensiometer, untuk pengukuran perpindahan pada ruang pasang yang sangat terbatas dan aplikasi uji dinamis.

Fitur Utama

  • Salah satu sensor draw-wire terkecil: bobot sekitar 8 sampai 82 g
  • Tiga rentang: 40, 80, atau 130 mm
  • Output analog potensiometer dengan resolusi praktis tak terbatas
  • Lubang tembus pada housing untuk pemasangan cepat
  • Akselerasi kawat hingga sekitar 60 g (rentang 40 dan 80 mm)
  • Rentang suhu −40 sampai +85°C
Tanya via WhatsApp
Merk
Micro Epsilon
Kategori
Sensor

Detail Produk

Specification Value
Specification
Models WDS-40-MT19-P, WDS-80-MT33-P, WDS-130-MT56-P
Measuring Range 40 mm / 80 mm / 130 mm
Analog Output Potentiometer
Resolution Virtually infinite
Linearity ≤ ±0.4% FSO (≤ ±0.32 mm / ≤ ±0.52 mm for 80 / 130 mm); ≤ ±1% FSO (≤ ±0.4 mm) for 40 mm
Sensor Element Conductive plastic potentiometer
Wire Extension Force (max.) Approx. 2 N / 1.5 N / 1 N
Wire Retraction Force (min.) Approx. 0.7 N / 0.5 N / 0.3 N
Wire Acceleration (max.) Approx. 60 g / 60 g / 15 g
Housing / Wire Aluminum / polyamide-coated stainless steel
Temperature Range -40° to +85°C
Shock / Vibration 50 g / 10 ms; 20 g / 20 … 2000 Hz
Protection Class IP50
Weight Approx. 8 g / 22 g / 82 g
