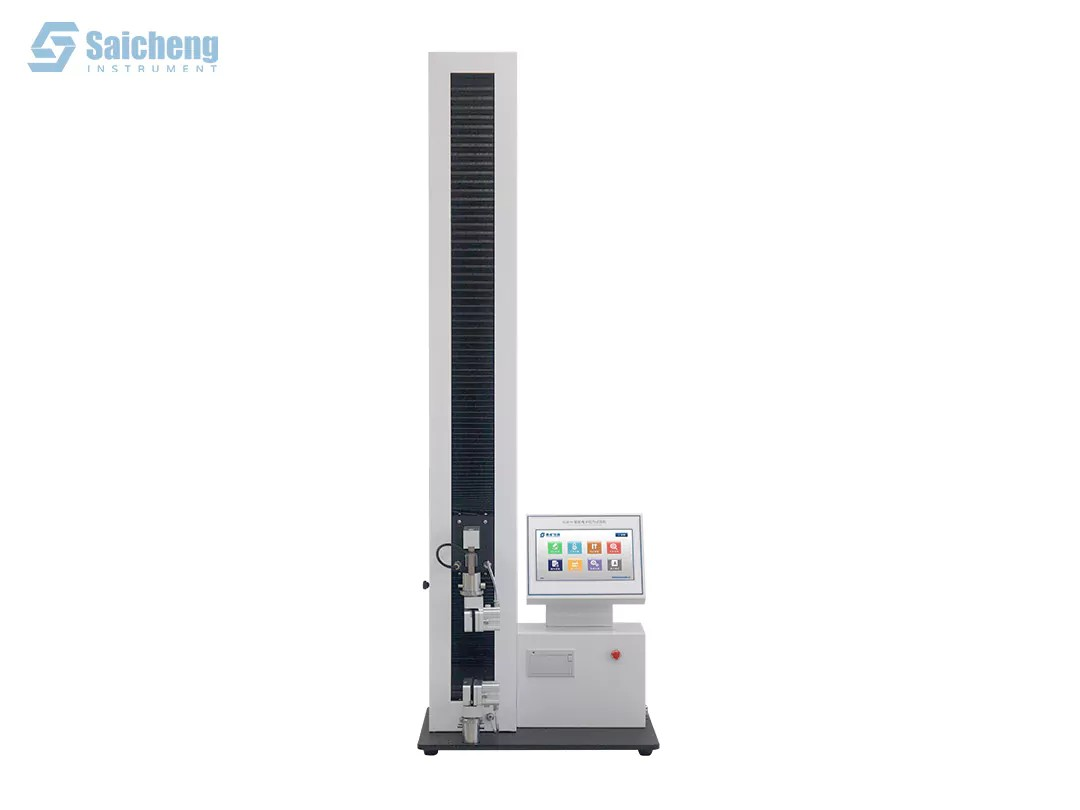

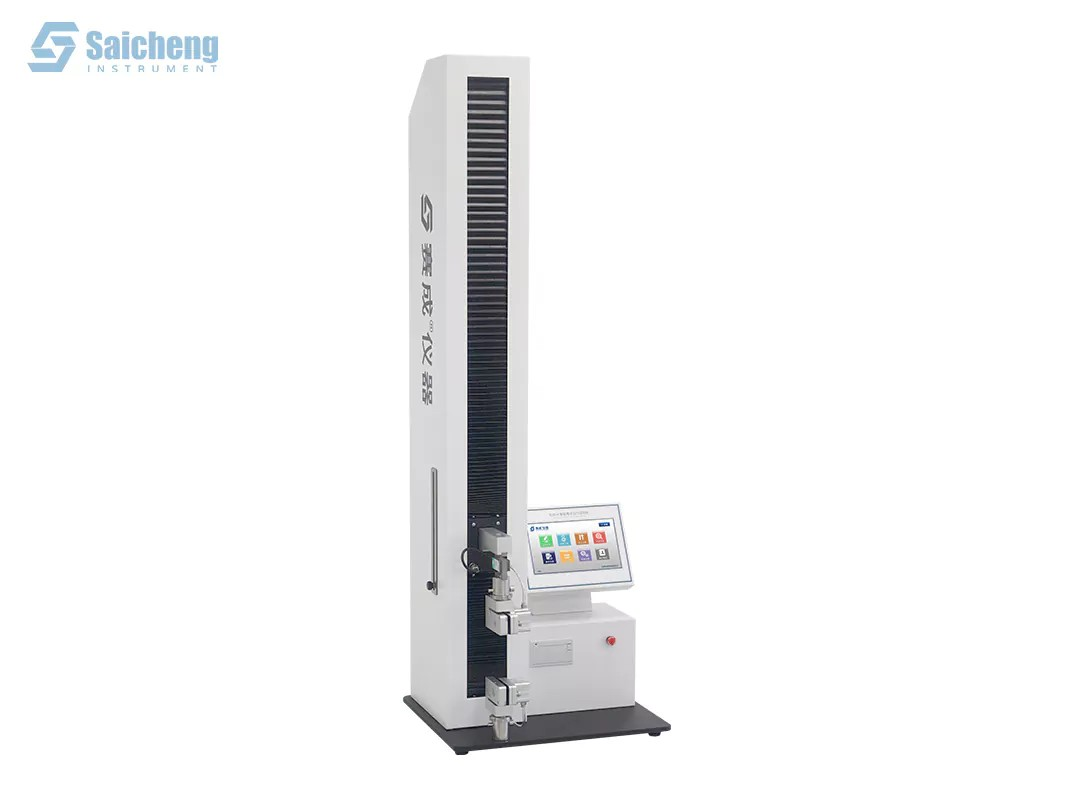

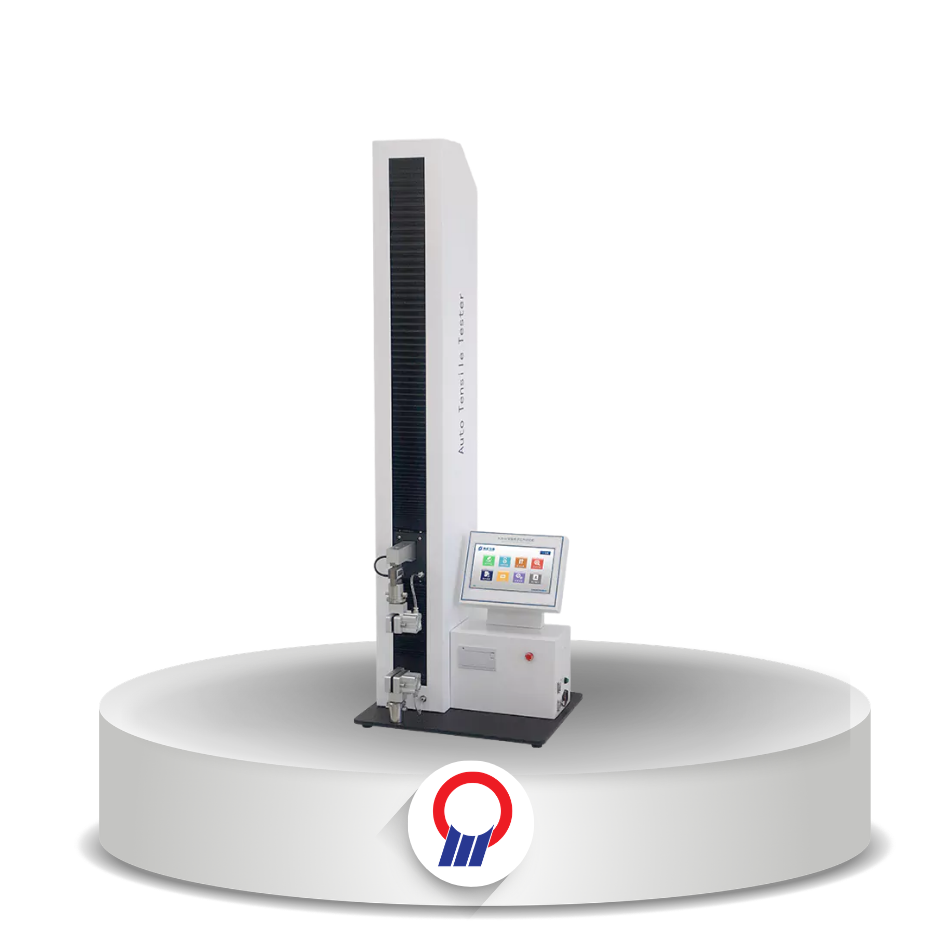

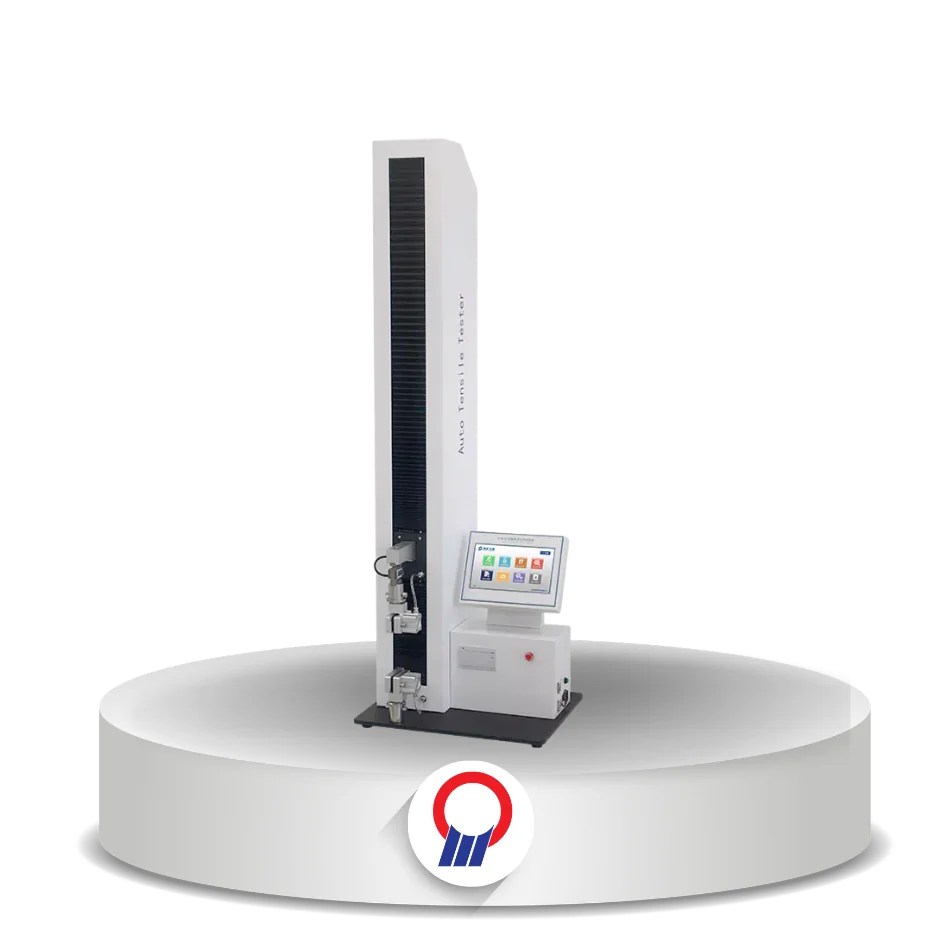

XLW-H Universal Tensile Testing Machine
Saicheng

XLW-H Universal Tensile Testing Machine

Overview

Mesin uji tarik universal XLW-H untuk sifat mekanis bahan kemasan fleksibel: kekuatan segel panas, kekuatan tarik, gaya lepas (peel), dan perpanjangan pada kemasan farmasi, foil aluminium, film PVC kaku, film komposit, dan jarum suntik.

Fitur Utama

  • Kapasitas 500 N (standar); 50 N sampai 2 kN opsional, akurasi 0,5% FS
  • Kecepatan uji 0–800 mm/menit (dapat diatur), langkah 1.000 mm
  • Penjepit spesimen pneumatik; lebih dari 100 jenis jig untuk 1.000+ bahan
  • Layar sentuh warna 10 inci, kurva gaya real-time, dan statistik hasil
  • Proteksi over-travel dan overload, kembali otomatis, memori saat daya mati
  • Otoritas pengguna tiga tingkat sesuai GMP dengan data yang tidak dapat diubah
Tanya via WhatsApp
Merk
Saicheng
Kategori
Strength & Durability Tester

Detail Produk

Specification Value
Specification
Test Range 500 N (standard); 50 N, 100 N, 250 N, 1 kN, 1.5 kN, 2 kN (optional)
Accuracy 0.5% FS
Resolution 0.0001 N
Displacement Accuracy 0.5% FS
Displacement Resolution 0.001 mm
Test Speed 0 ~ 800 mm/min (adjustable)
Sample Width 30 mm (standard); 50 mm (optional)
Clamping Way Pneumatic specimen clamp
Stroke 1,000 mm
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension 540 mm (W) x 450 mm (D) x 1560 mm (H)
Net Weight 72 kg
Test Standards ASTM E4, D828, D882, D1938, D3330, F88, F904; ISO 37; JIS P8113; GB/T 13022, 8808, 1040, 4850, 7753, 7754, 453, 17200, 16578, 7122, 2790, 2791, 2792; QB/T 2358, QB/T 1130; YBB series
Configuration
Standard Instrument, micro printer, pneumatic fixture
Optional Professional software, 485 communication cable, standard roller, test plate, sample cutter, various fixtures, low-speed unwinding device
