WEW-600D 600Kn 60Ton Computer Display Steel Bar Tensile Testing Machine
HST

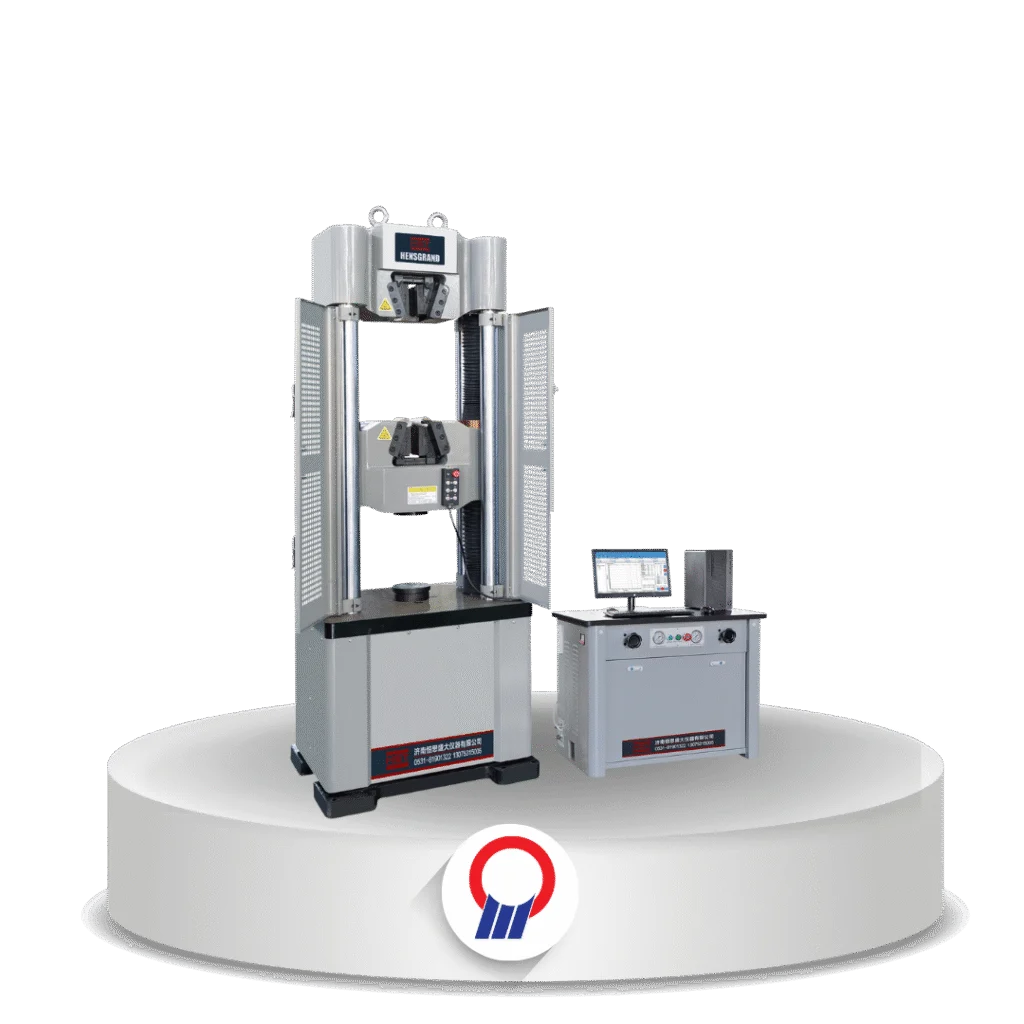

WEW-600D 600Kn 60Ton Computer Display Steel Bar Tensile Testing Machine

Overview

Mesin uji universal hidrolik untuk uji tarik, tekan, lentur, dan geser material logam dengan tampilan komputer. Seri WEW kapasitas 600 kN (60 ton) untuk uji tarik baja tulangan, tampilan komputer.

Fitur Utama

  • Empat kapasitas: 100, 300, 600, dan 1.000 kN dalam satu seri WEW-E
  • Struktur enam kolom (empat kolom dua sekrup bola) dengan klem hidrolik
  • Akurasi beban ≤ ±0,5%; rentang beban 1–100% FS; resolusi perpindahan 0,01 mm
  • Ruang tarik 780–950 mm dan ruang tekan 550–700 mm
  • Langkah piston 200–250 mm; jarak antar kolom 485–560 mm
  • Catu daya 3 fase AC 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification (WEW-E series)
Models HST WEW-100E, WEW-300E, WEW-600E, WEW-1000E
Structure 6 column (four columns two ball screws)
Max. Load 100, 300, 600, 1000 kN
Load Accuracy ≤ ±1% / ≤ ±0.5% (as printed)
Load Range 2% ~ 100% FS / 1% ~ 100% (as printed)
Displacement Resolution 0.01 mm
Max. Tension Test Space (mm) WEW-100E, 300E: 780
WEW-600E: 800
WEW-1000E: 950
Max. Compression Test Space (mm) WEW-100E, 300E: 550
WEW-600E: 650
WEW-1000E: 700
Column Effective Spacing (mm) WEW-100E, 300E: 485
WEW-600E: 500
WEW-1000E: 560
Max. Piston Stroke (mm) WEW-100E: 200
WEW-300E, 600E, 1000E: 250
Clamping Method Hydraulic clamping
Round Specimen Clamping Range (mm) WEW-100E: Φ4-Φ10, Φ10-Φ20
WEW-300E: Φ10-Φ20, Φ20-Φ32
WEW-600E: Φ13-Φ26, Φ26-Φ40
WEW-1000E: Φ13-Φ26, Φ26-Φ45
Flat Specimen Clamping Range (mm) WEW-100E, 300E, 600E: 0-15
WEW-1000E: 0-20
Flat Specimen Clamping Width (mm) WEW-100E, 300E: 80 x 80
WEW-600E: 90 x 90
WEW-1000E: 100 x 100
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
