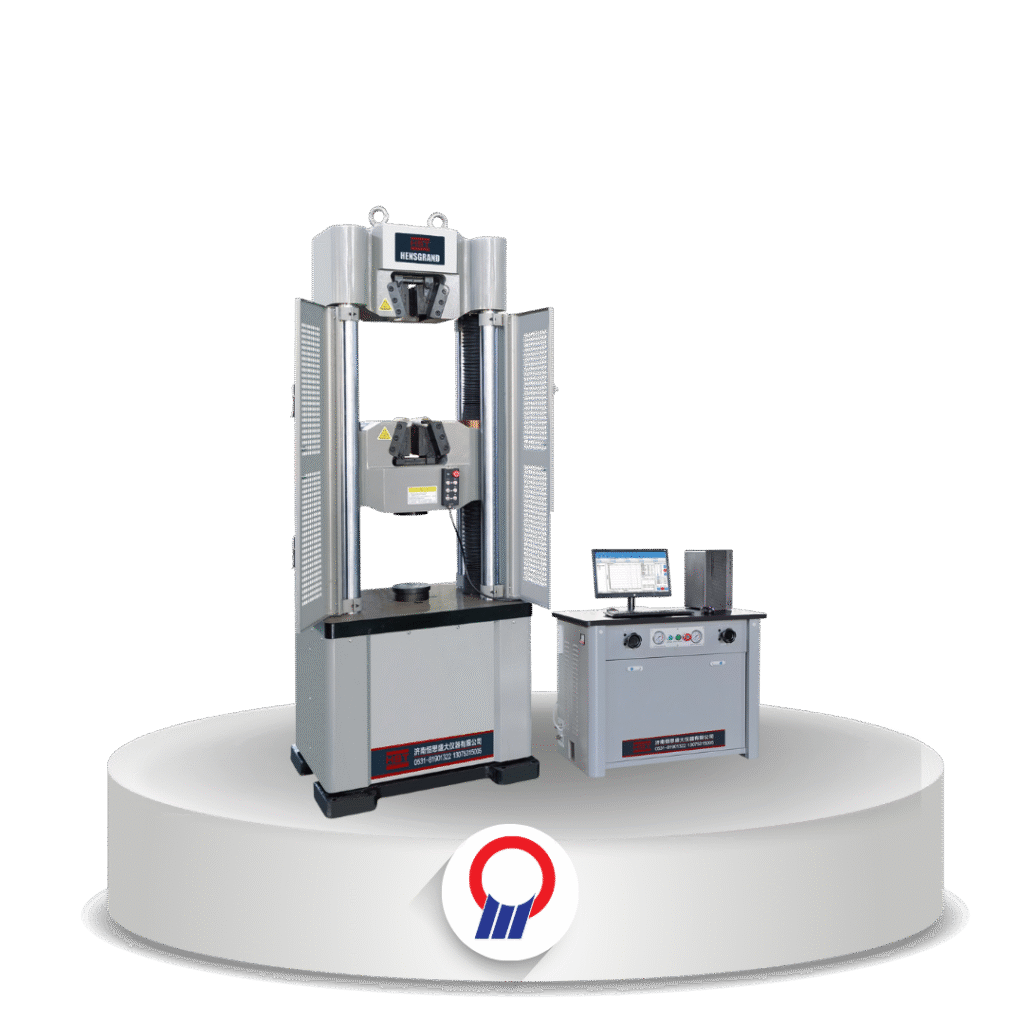

WEW-1000D 1000Kn Computer Display UTM Hydraulic Universal Testing Machine
HST

WEW-1000D 1000Kn Computer Display UTM Hydraulic Universal Testing Machine

Overview

Mesin uji universal hidrolik untuk uji tarik, tekan, lentur, dan geser material logam dengan tampilan komputer. Kapasitas 1.000 kN (100 ton), klem hidrolik otomatis, tampilan komputer.

Fitur Utama

  • Kapasitas 1.000 kN, kelas akurasi 0,5
  • Ruang tarik 950 mm dan ruang tekan 700 mm
  • Jarak antar kolom 560 mm; langkah piston 200 mm
  • Resolusi beban kapasitas/500.000; resolusi perpindahan 0,01 mm
  • Klem hidrolik otomatis
  • Catu daya 3 fase AC 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model (spec table) HST WEW-1000E (page title: WEW-1000D)
Max. Load 1000 kN
Load Accuracy Class 0.5
Measuring Range 2% ~ 100%
Displacement Resolution 0.01 mm
Load Resolution Capacity/500,000
Tensile Space 950 mm
Compression Space 700 mm
Distance Between Two Columns 560 mm
Piston Stroke 200 mm
Clamping Method Hydraulic automatic clamp
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
