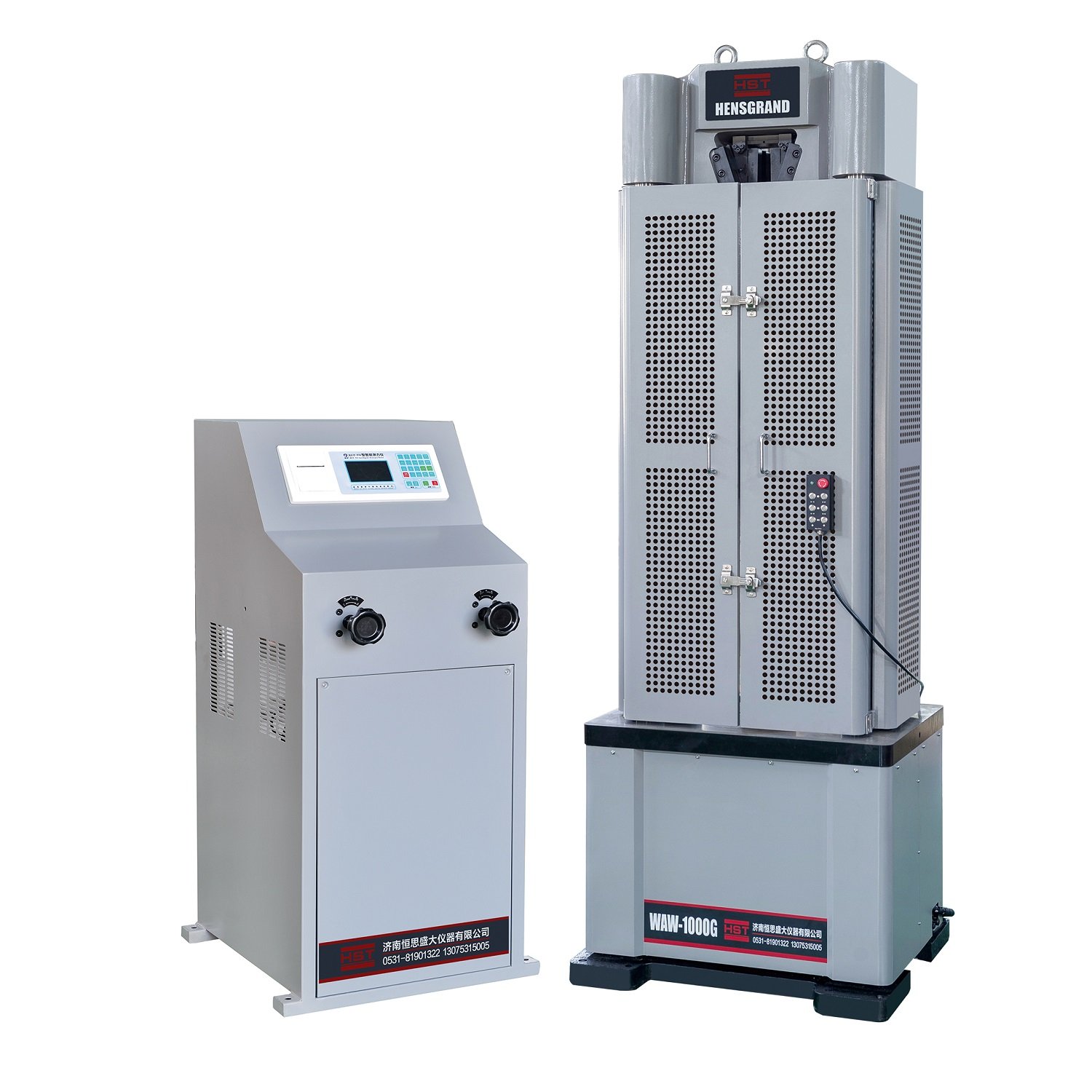

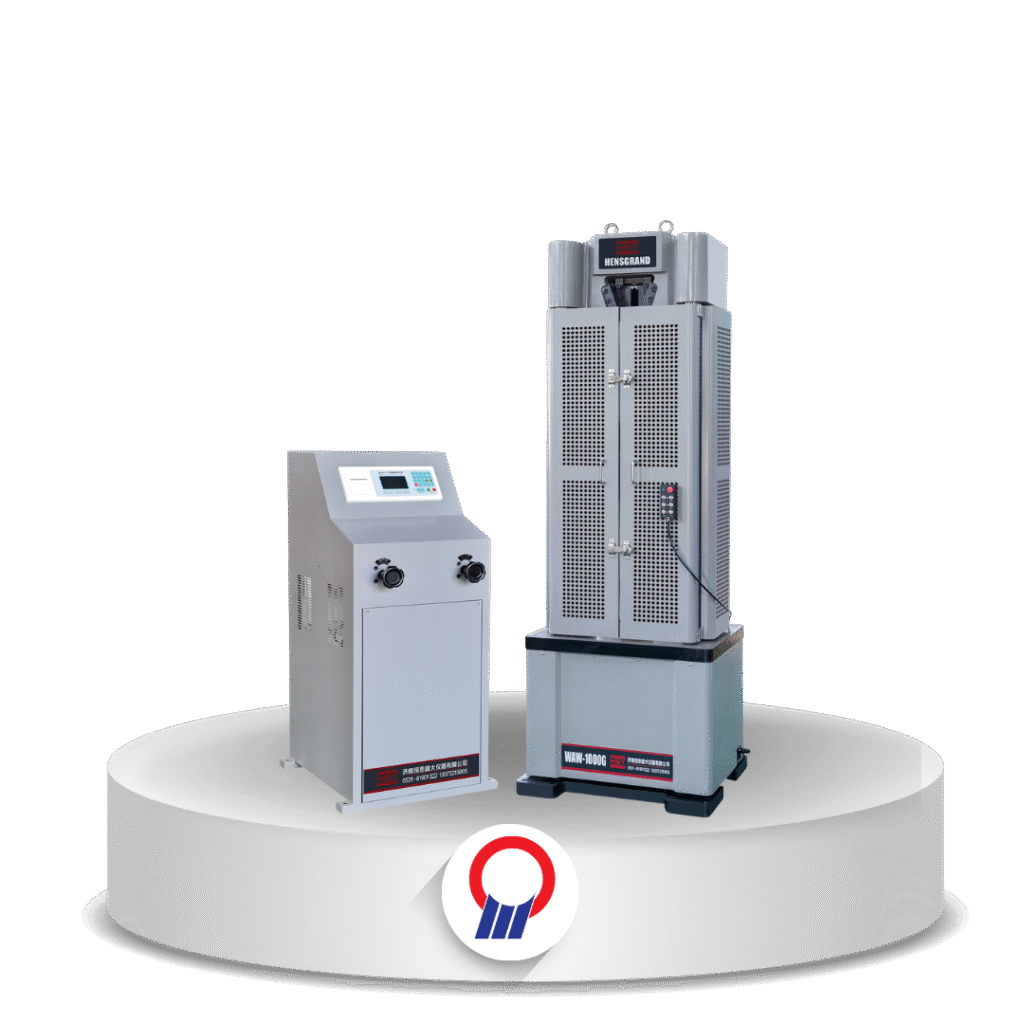

WE-300/600/1000D Digital Display Hydraulic Universal Tensile Testing Machine
HST

WE-300/600/1000D Digital Display Hydraulic Universal Tensile Testing Machine

Overview

Mesin uji universal hidrolik untuk uji tarik, tekan, lentur, dan geser material logam dengan tampilan komputer. Seri WE digital display kapasitas 300, 600, dan 1.000 kN.

Fitur Utama

  • Tiga model: WE-300E, WE-600E, dan WE-1000E
  • Kelas akurasi 0,5; rentang beban 1–100%; resolusi beban kapasitas/500.000
  • Resolusi perpindahan 0,01 mm; langkah piston 200 mm
  • Ruang tarik 780 / 900 / 950 mm dan ruang tekan 550 / 650 / 700 mm
  • Klem hidrolik otomatis
  • Catu daya 3 fase AC 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST WE-300E, WE-600E, WE-1000E
Max. Load 300, 600, 1000 kN
Load Accuracy Class 0.5
Measuring Range 1% ~ 100%
Displacement Resolution 0.01 mm
Load Resolution Capacity/500,000
Tensile Space (mm) WE-300E: 780
WE-600E: 900
WE-1000E: 950
Compression Space (mm) WE-300E: 550
WE-600E: 650
WE-1000E: 700
Distance Between Two Columns (mm) WE-300E, 600E: 485
WE-1000E: 500
Piston Stroke 200 mm
Clamping Method Hydraulic automatic clamp
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
