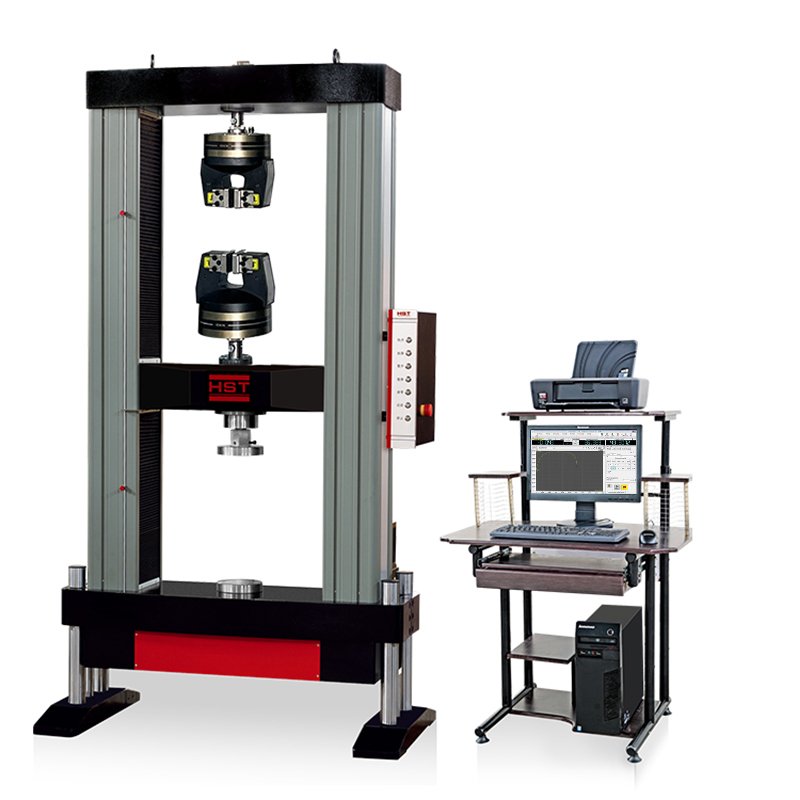

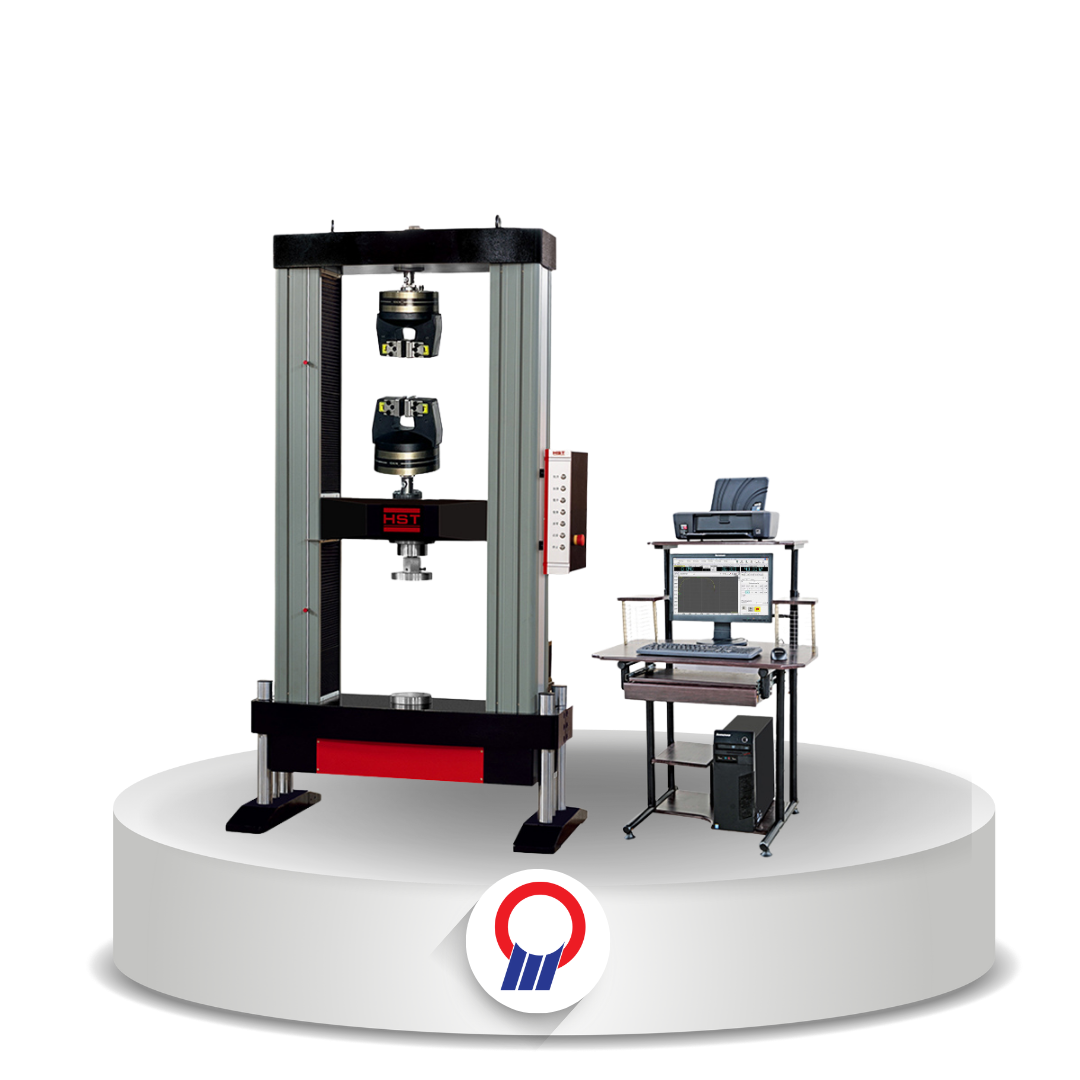

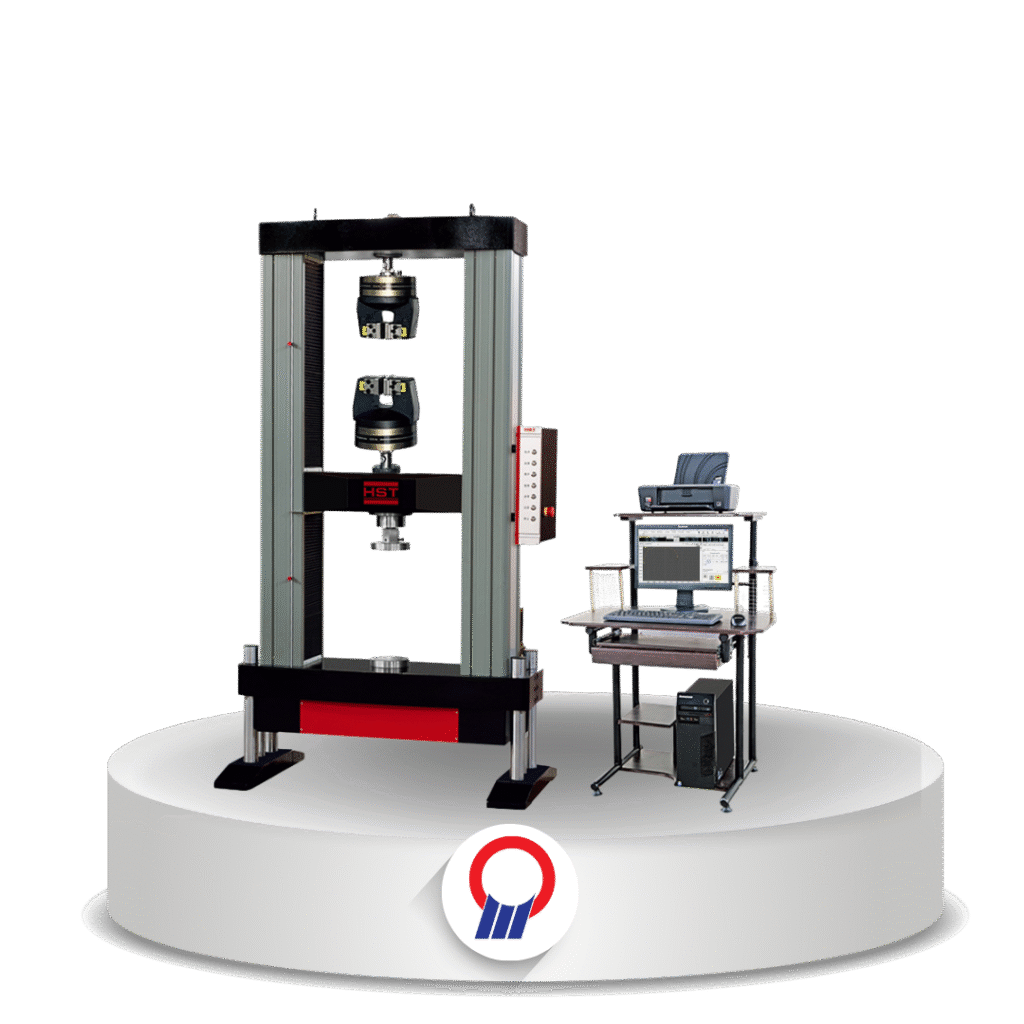

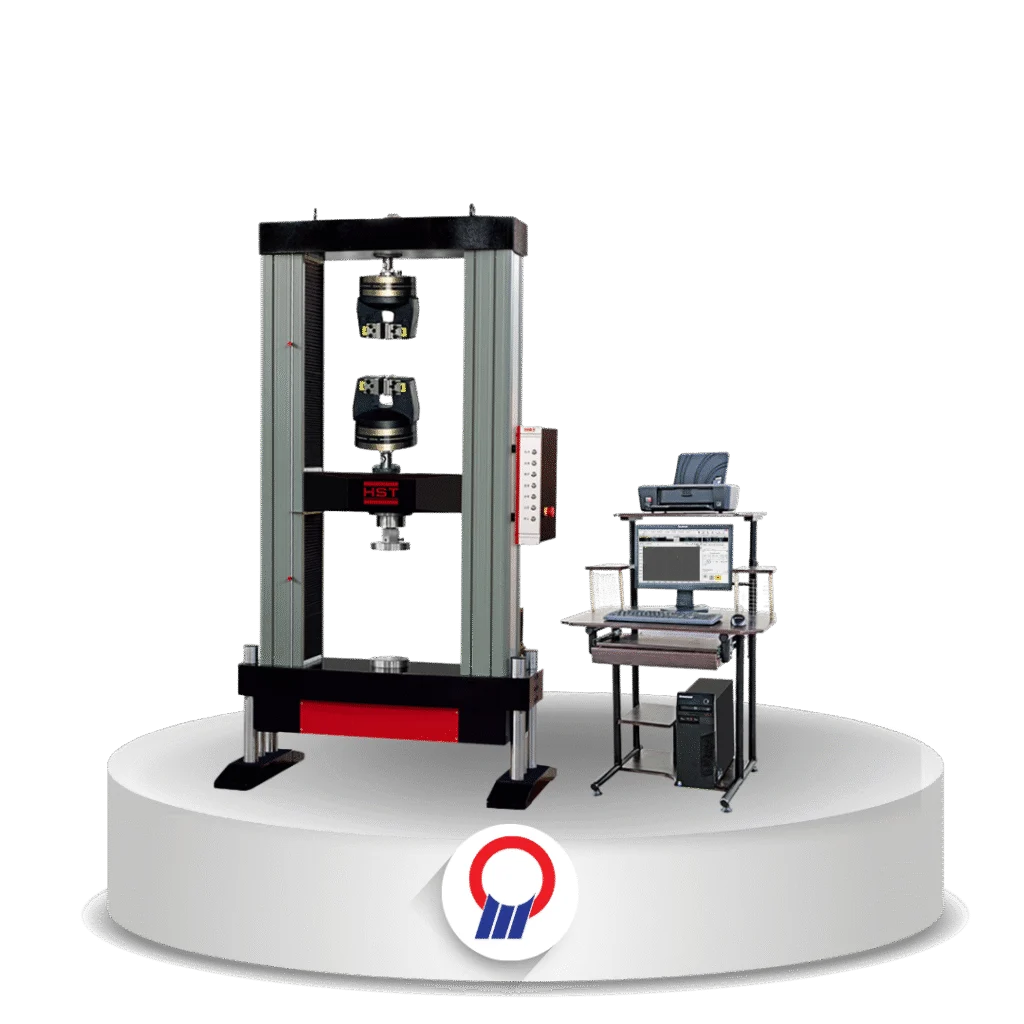

WDW-H Series UTM Universal Testing Machine (10-600kN)
HST

WDW-H Series UTM Universal Testing Machine (10-600kN)

Overview

Mesin uji universal elektromekanis seri WDW-H (10–600 kN) untuk uji tarik, tekan, lentur, geser, dan siklus rendah pada logam, karet, plastik, pegas, tekstil, dan komponen.

Fitur Utama

  • Model WDW-10, 20, 50H dan WDW-100H
  • Kelas akurasi 0,5; rentang gaya 0,2–100% F·S
  • Kecepatan uji 0,05–1.000 mm/menit (stepless)
  • Ruang tarik 770 / 650 mm dan ruang tekan 1.000 mm
  • Resolusi perpindahan 0,01 mm
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST WDW-10H, 20H, 50H; WDW-100H
Max. Load 10, 20, 50 kN; 100 kN
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/500000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed 0.05 ~ 1000 mm/min (stepless arbitrary setting)
Speed Accuracy Within ±1% / ±0.5% of set speed
Tensile Space (mm) WDW-10/20/50H: 770
WDW-100H: 650
Compression Space (mm) 1000
Test Width (mm) WDW-10/20/50H: 450
WDW-100H: 550
Beam Travel Distance 1100 mm
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, ASTM A370, ASTM E4, ASTM E8, ASTM E9, etc.
