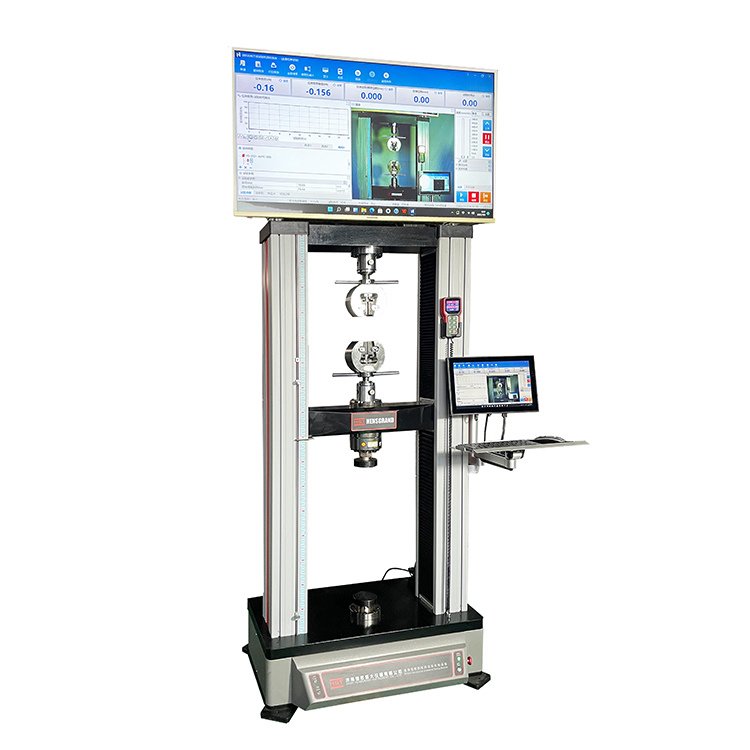

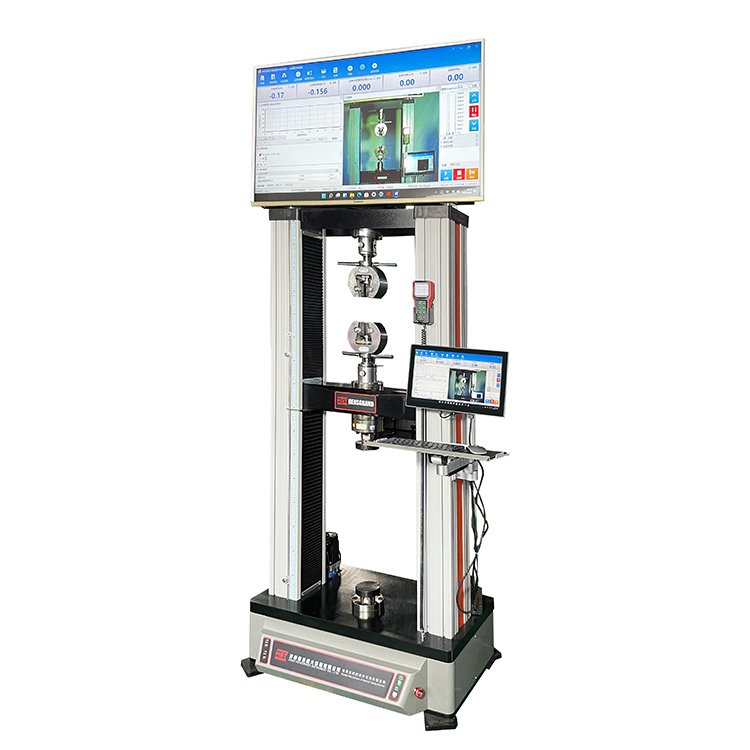

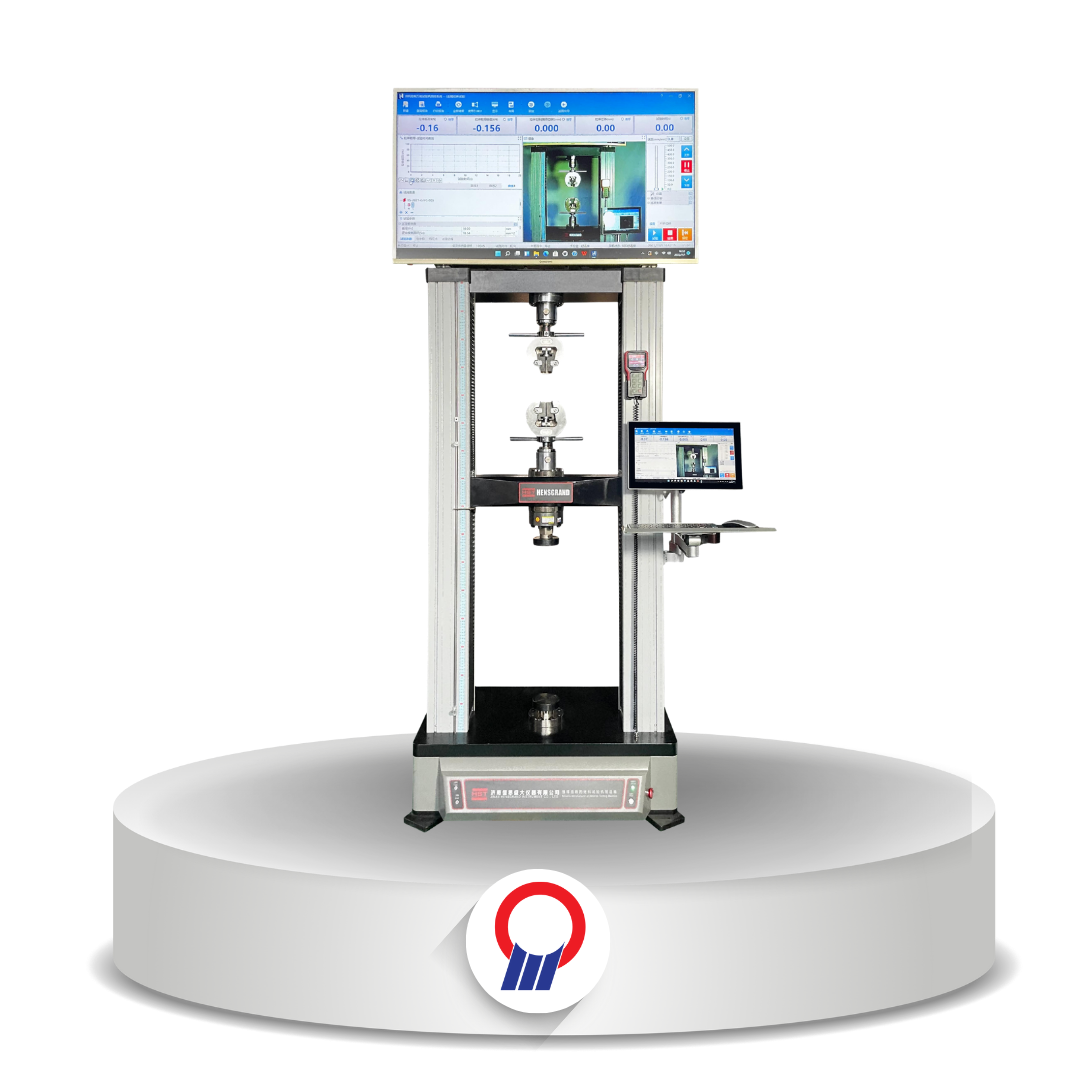

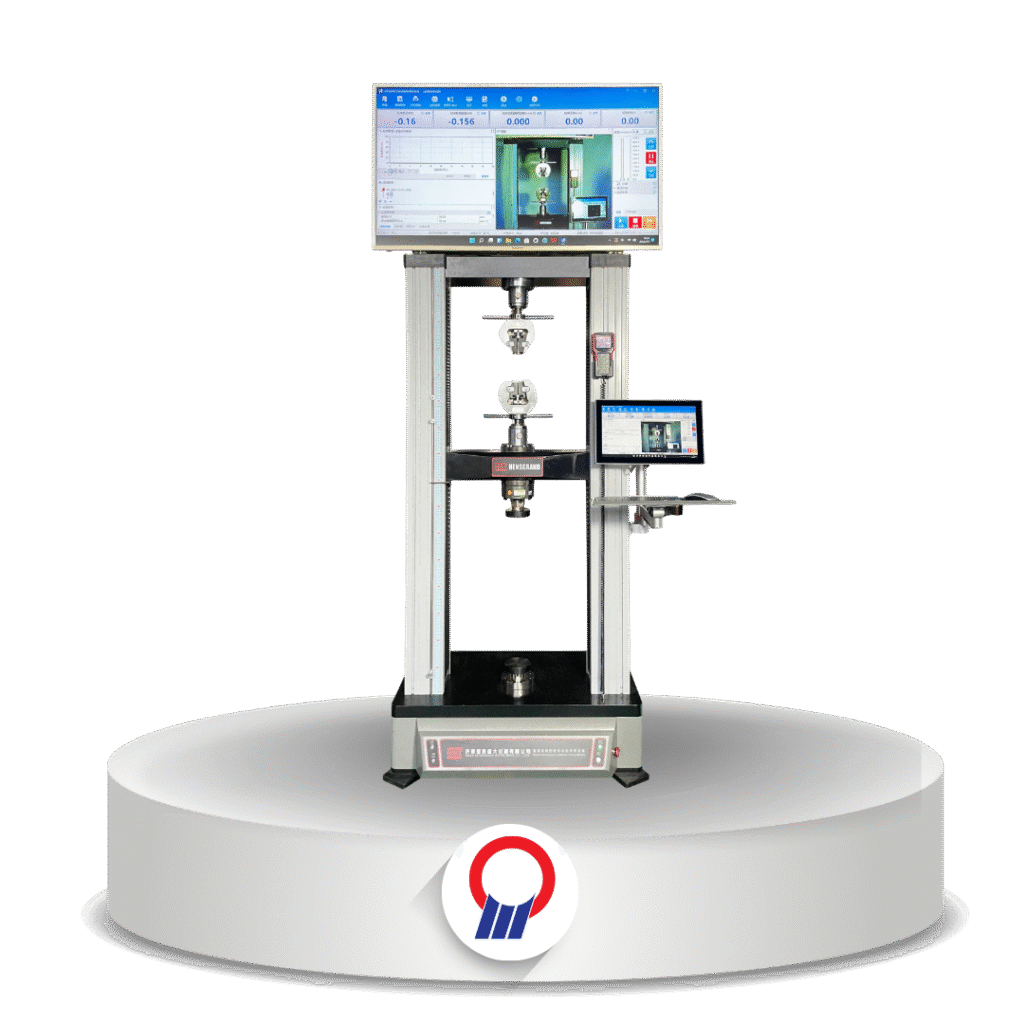

WDW-ET Touch Screen Electromechanical Universal testing machine
HST

WDW-ET Touch Screen Electromechanical Universal testing machine

Overview

Mesin uji universal elektromekanis (komputer) untuk uji tarik, tekan, lentur, geser, sobek, dan kupas dengan kendali loop tertutup gaya, perpindahan, atau deformasi. Dilengkapi layar sentuh.

Fitur Utama

  • Kapasitas 30 kN, 50 kN dan 100 kN
  • Kelas akurasi gaya 0.5, resolusi gaya 1/500000
  • Resolusi perpindahan 0,01 mm; kesalahan perpindahan dalam ±0,5% dari beban
  • Seri ET dengan layar sentuh
  • Kecepatan 0,001–1.000 mm/menit (30 dan 50 kN) dan 0,001–500 (100 kN)
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-30ET, WDW-50ET, WDW-100ET
Max. Load 30 kN, 50 kN, 100 kN
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/500000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed (mm/min) WDW-30ET: 0.001-1000
WDW-50ET: 0.001-1000
WDW-100ET: 0.001-500
Tensile Space (mm) WDW-30ET: 770
WDW-50ET: 770
WDW-100ET: 650
Compression Space (mm) 1000
Test Width (mm) WDW-30ET: 450
WDW-50ET: 450
WDW-100ET: 550
Beam Travel Distance (mm) 1100
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
