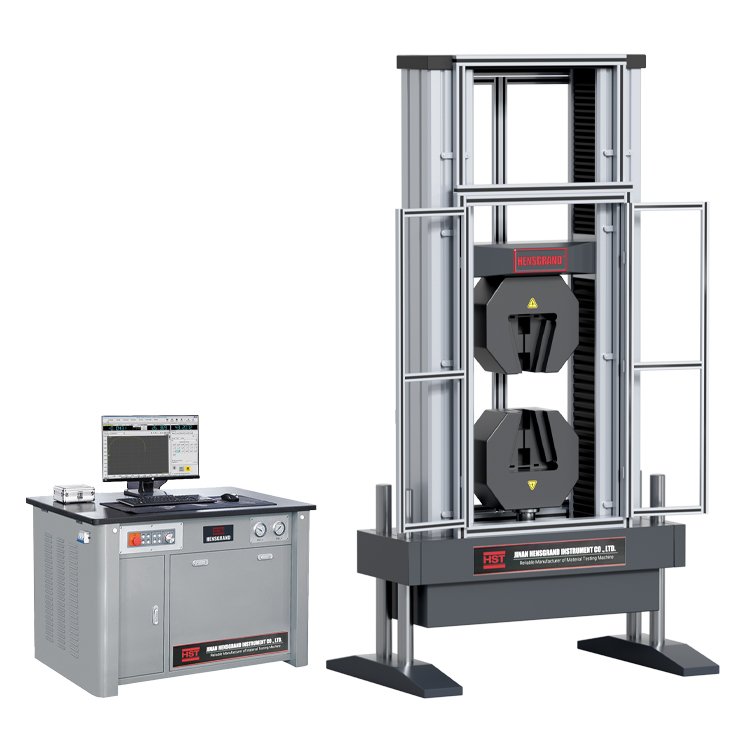

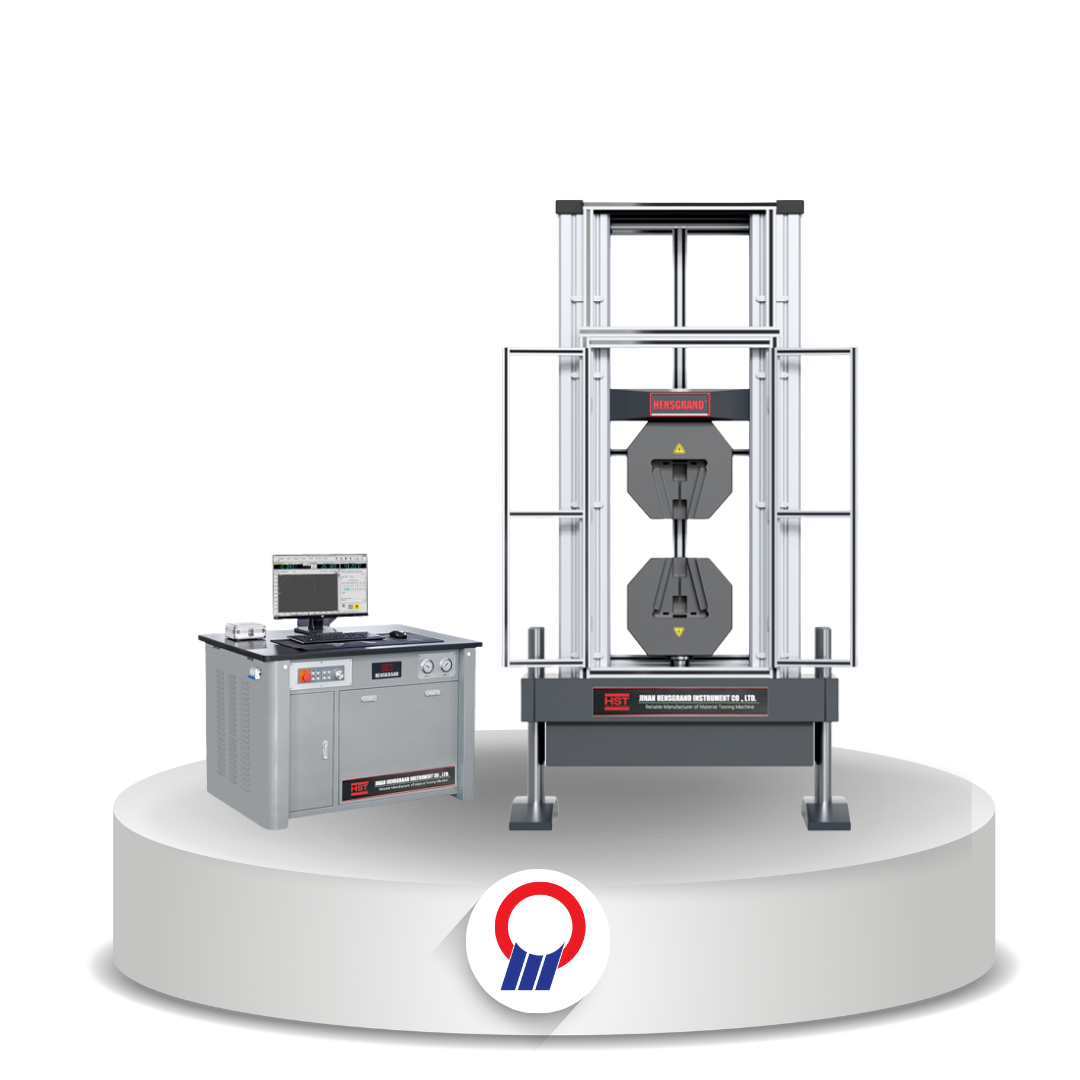

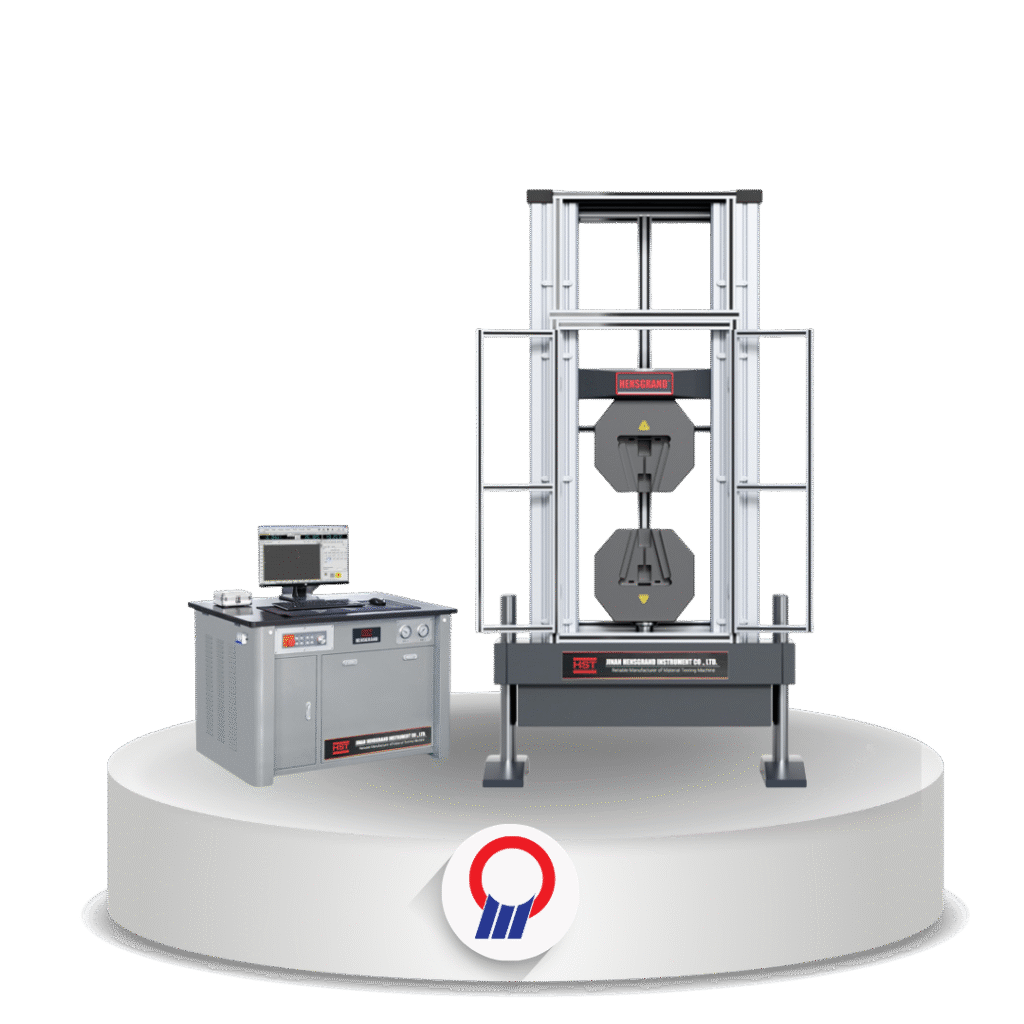

WDW-E 500KN, 600KN, 50ToN, 60Ton Electronic Universal Testing Machine
HST

WDW-E 500KN, 600KN, 50ToN, 60Ton Electronic Universal Testing Machine

Overview

Mesin uji universal elektromekanis (komputer) untuk uji tarik, tekan, lentur, geser, sobek, dan kupas dengan kendali loop tertutup gaya, perpindahan, atau deformasi.

Fitur Utama

  • Kapasitas 500 kN dan 600 kN
  • Kelas akurasi gaya 0.5, resolusi gaya 1/500000
  • Resolusi perpindahan 0,01 mm; kesalahan perpindahan dalam ±0,5% dari beban
  • Bobot sekitar 4.300 kg
  • Catu daya AC 380V/220V ±10%
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-500E, WDW-600E
Max. Load 500 kN, 600 kN
Load Accuracy Class 0.5
Load Resolution 1/500000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed (mm/min) 0.001-500 (stepless)
Tensile Space (mm) 800 (can be customized)
Compression Space (mm) 800 (can be customized)
Test Width (mm) 700 (can be customized)
Beam Travel Distance (mm) 1100
Power Supply AC 380V/220V ±10%, 50Hz/60Hz (can be customized)
Weight 4300 kg
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
