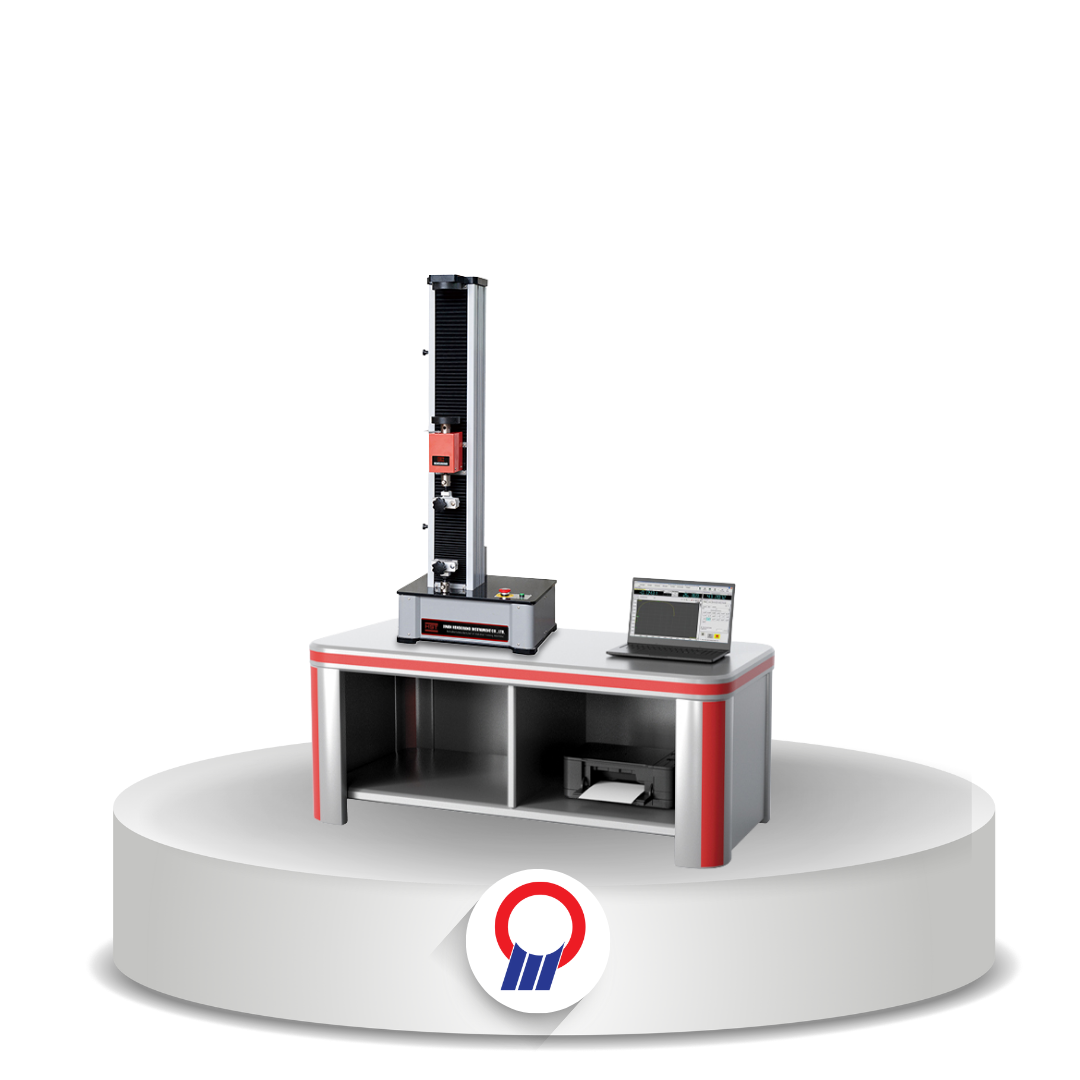

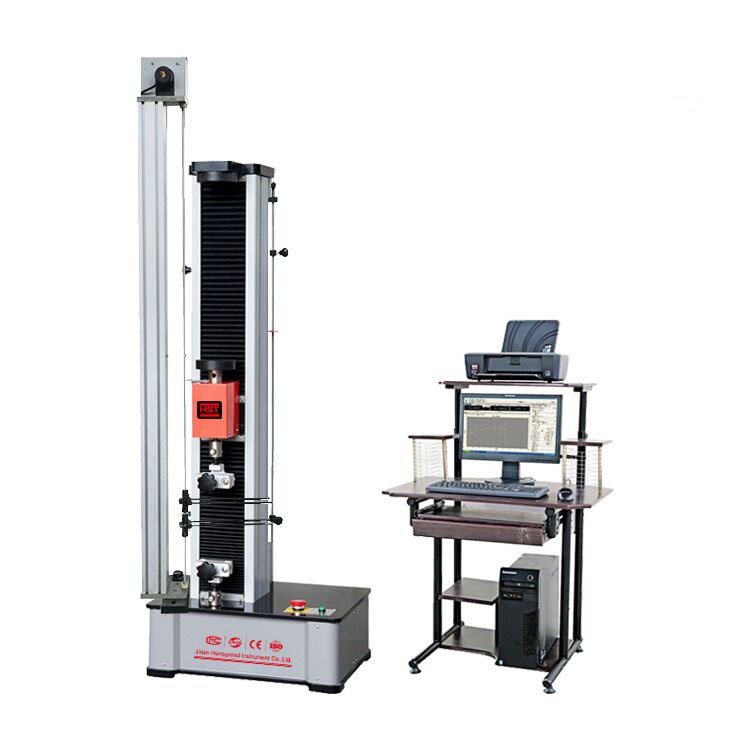

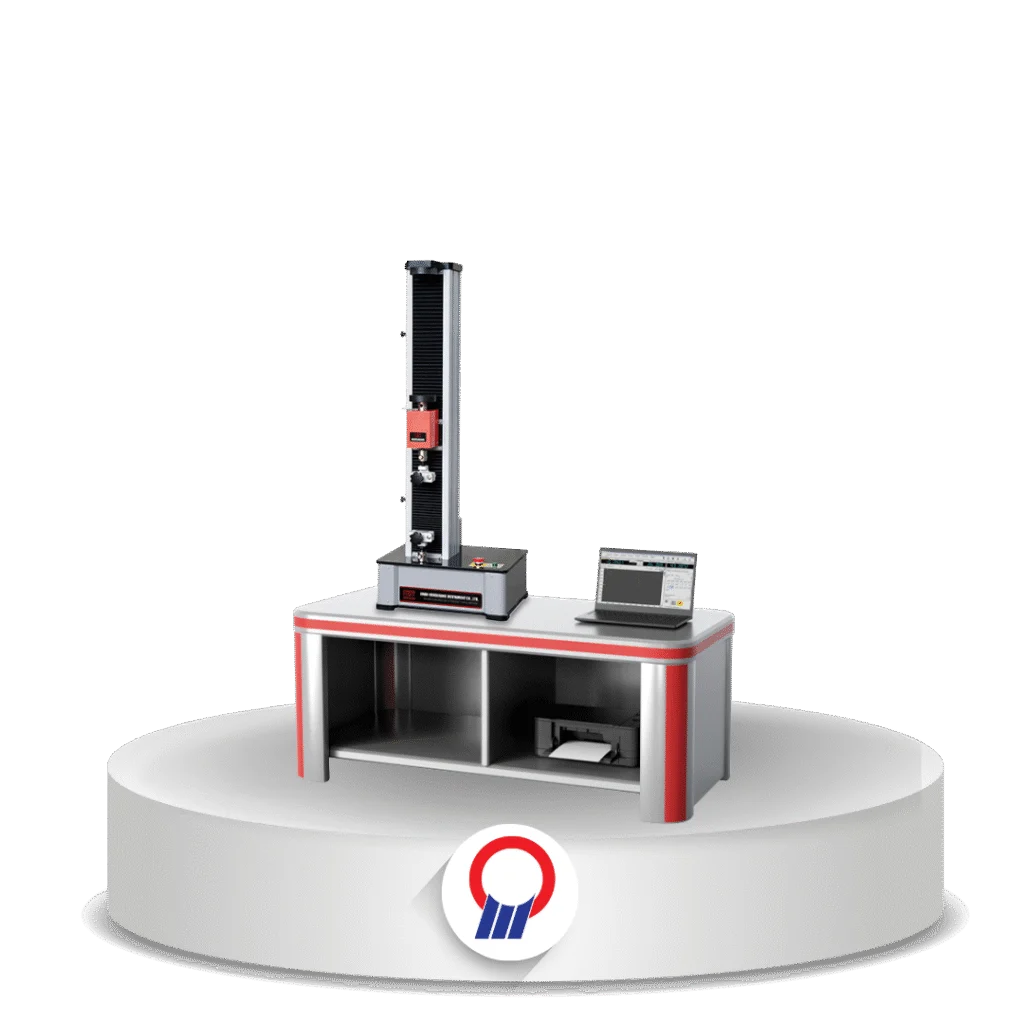

WDW-1,2,5 kN Computerized Tensile Testing Machine
HST

WDW-1,2,5 kN Computerized Tensile Testing Machine

Overview

Mesin uji tarik terkomputerisasi satu kolom kapasitas 200 N sampai 5 kN (WDW-02E sampai WDW-5E) untuk uji tarik, tekan, lentur, geser, dan siklus rendah.

Fitur Utama

  • Lima model: 200 N, 500 N, 1 kN, 2 kN, dan 5 kN
  • Kelas akurasi ISO 7500 Class 0,5; rentang gaya 0,4–100% F·S
  • Kecepatan uji 0,001–500 mm/menit; akurasi kecepatan ±0,5%
  • Struktur satu kolom dengan ruang ganda; ruang 600 mm (800 mm model tinggi)
  • Dimensi ringkas 500 x 380 x 1.320 mm, bobot sekitar 110 kg
  • Cocok untuk logam, karet, plastik, pegas, tekstil, dan komponen
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HSTWDW-02E (200 N), HSTWDW-05E (500 N), HSTWDW-1E (1000 N), HSTWDW-2E (2000 N), HSTWDW-5E (5000 N)
Structure Single column double spaces
Load Accuracy ISO 7500 Class 0.5
Load Range 0.4% ~ 100% F·S
Accuracy of Test Load ≤ ±0.5%
Load Resolution 1/±500000 FS
Resolution of Displacement 0.01 mm
Test Speed 0.001 ~ 500 mm/min
Speed Accuracy Within ±0.5% of set speed
Crosshead Travel Space 800 mm / 1000 mm (heightened model)
Tensile Space 600 / 800 mm (heightened model)
Compression Space 600 / 800 mm (heightened model)
Dimension (L x W x H) 500 x 380 x 1320 mm
Weight 110 kg (approx.)
Power Supply AC 220V ±10%, 50/60 Hz
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
