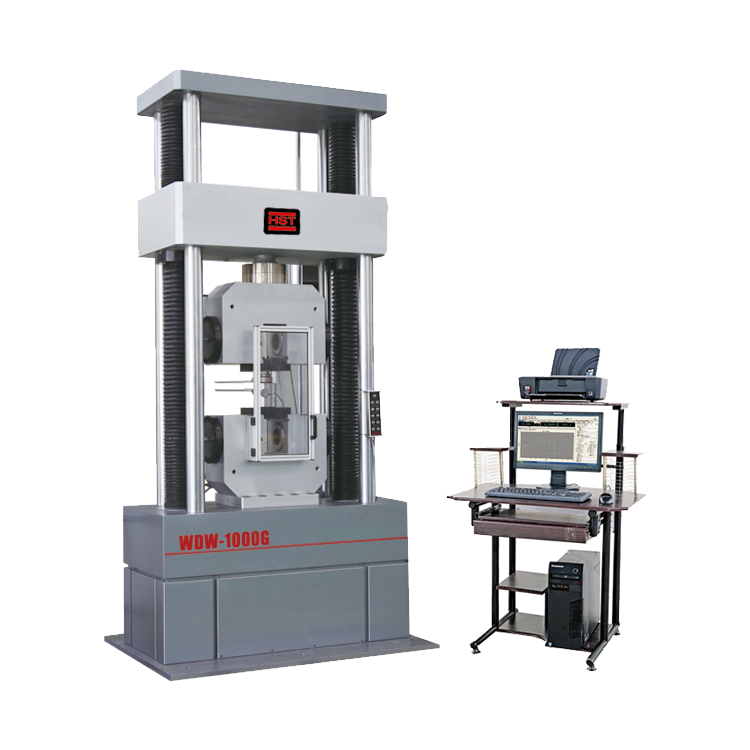

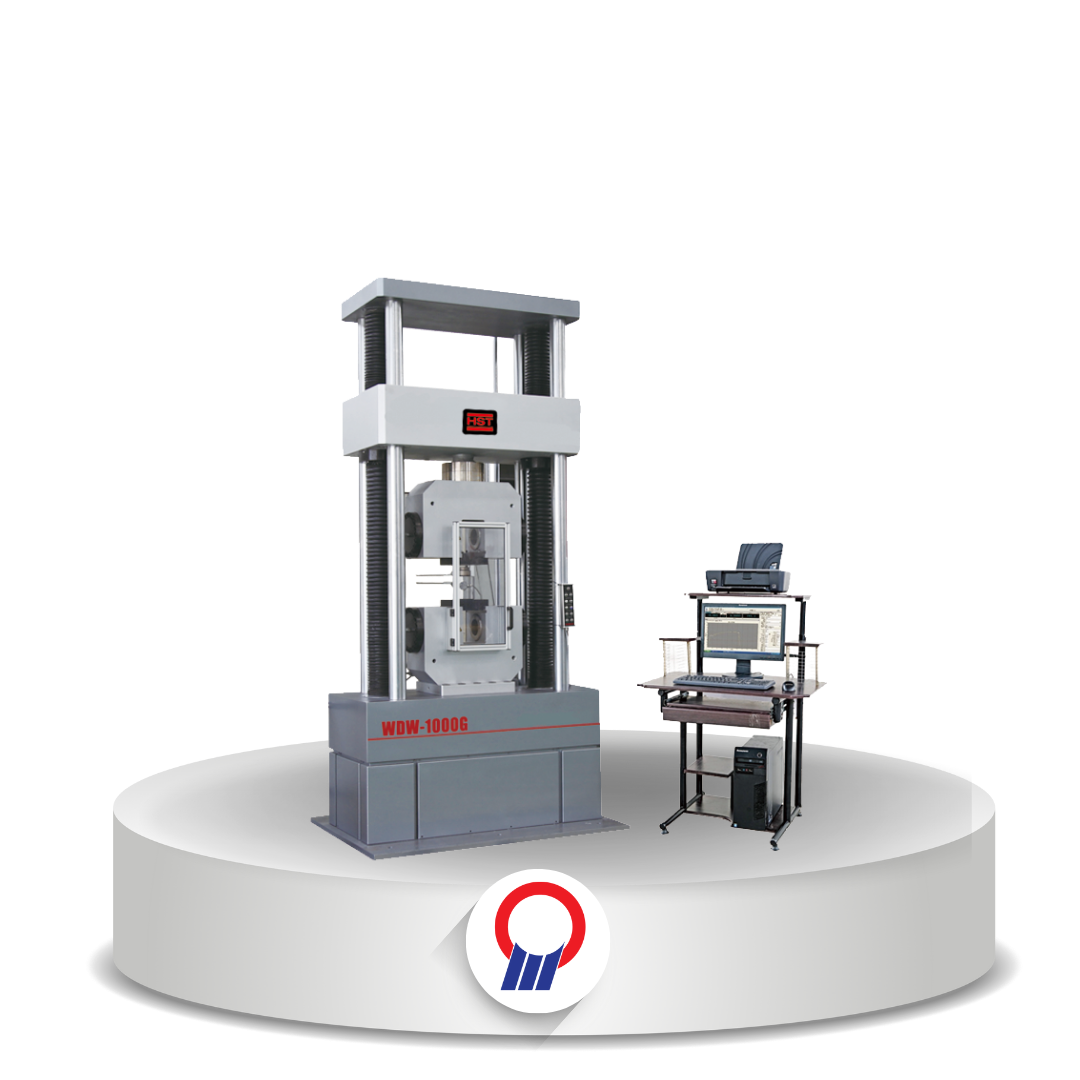

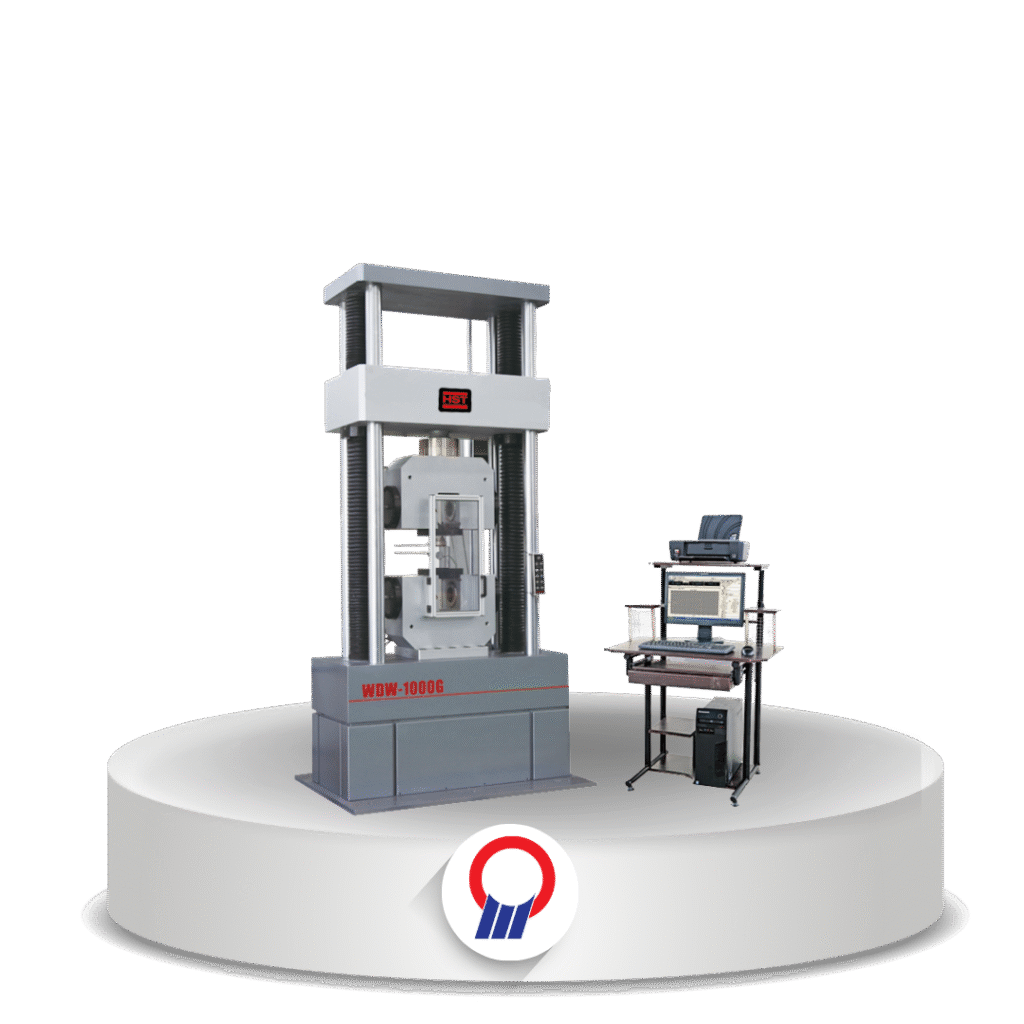

WDW-1000G 1000KN, 100T Electromechanical universal testing machine
HST

WDW-1000G 1000KN, 100T Electromechanical universal testing machine

Overview

Mesin uji universal elektromekanis 1.000 kN (100 ton) empat kolom lantai/meja, dengan penutup aluminium alloy dan kontrol komputer.

Fitur Utama

  • Kapasitas 1.000 kN dengan struktur empat kolom: tekan di atas, tarik di bawah
  • Kelas akurasi 1, rentang gaya 2–100% F·S, resolusi gaya 1/500.000
  • Kecepatan uji 0,001–200 mm/menit (stepless)
  • Ruang tarik 600 mm, ruang tekan 600 mm, lebar uji 650 mm (dapat dikustomisasi)
  • Penutup aluminium alloy
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model HST WDW-1000G
Max. Load 1000 kN
Structure Four-column floor or desk model (upper compression, lower tensile)
Cover All aluminum alloy
Control Method Computer control
Load Accuracy Class 1
Load Range 2% ~ 100% F·S
Load Resolution 1/500000
Range of Deformation 0.2% – 100% FS
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed 0.001 ~ 200 mm/min (stepless arbitrary setting)
Tensile Space 600 mm (can be customized)
Compression Space 600 mm (can be customized)
Test Width 650 mm (can be customized)
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, etc.
