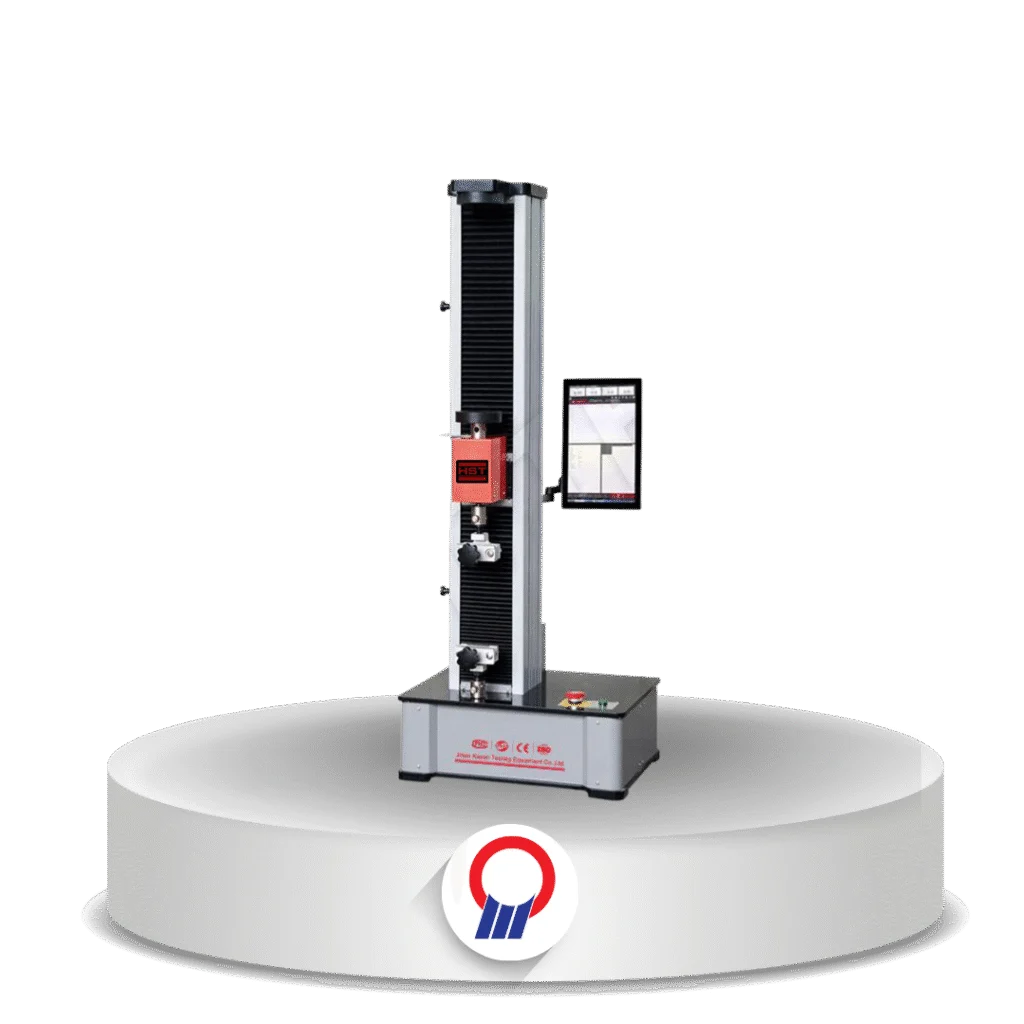

WDS-T Touch Screen Single Column Universal Tensile Testing Machine
HST

WDS-T Touch Screen Single Column Universal Tensile Testing Machine

Overview

Mesin uji tarik universal satu kolom layar sentuh seri WDS-ET, kapasitas 0,1 sampai 5 kN, dengan penutup aluminium alloy.

Fitur Utama

  • Delapan model: 0,1; 0,2; 0,3; 0,5; 1; 2; 3; dan 5 kN
  • Kelas akurasi ISO 7500 Class 0,5; rentang gaya 0,2–100% F·S
  • Kecepatan uji 0,001–500 mm/menit (stepless)
  • Ruang tarik dan tekan 600 mm (dapat dikustomisasi); lebar uji 100 mm
  • Penutup aluminium alloy dengan cat semprot
  • Struktur satu kolom dengan ruang ganda
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST WDS-01ET, 02ET, 03ET, 05ET, 1ET, 2ET, 3ET, 5ET
Max. Load 0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5 kN
Structure Single column double spaces
Material All aluminum alloy surface spray painting shell
Load Accuracy ISO 7500 Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/50000
Resolution of Displacement 0.01 mm
Test Speed 0.001 ~ 500 mm/min (stepless arbitrary setting)
Speed Accuracy Within ±1% of set speed
Tensile Space 600 mm (can be customized)
Compression Space 600 mm (can be customized)
Test Width 100 mm
Beam Travel Distance 772 mm
Workbench Thickness 26 mm
Base Height 158 mm
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
