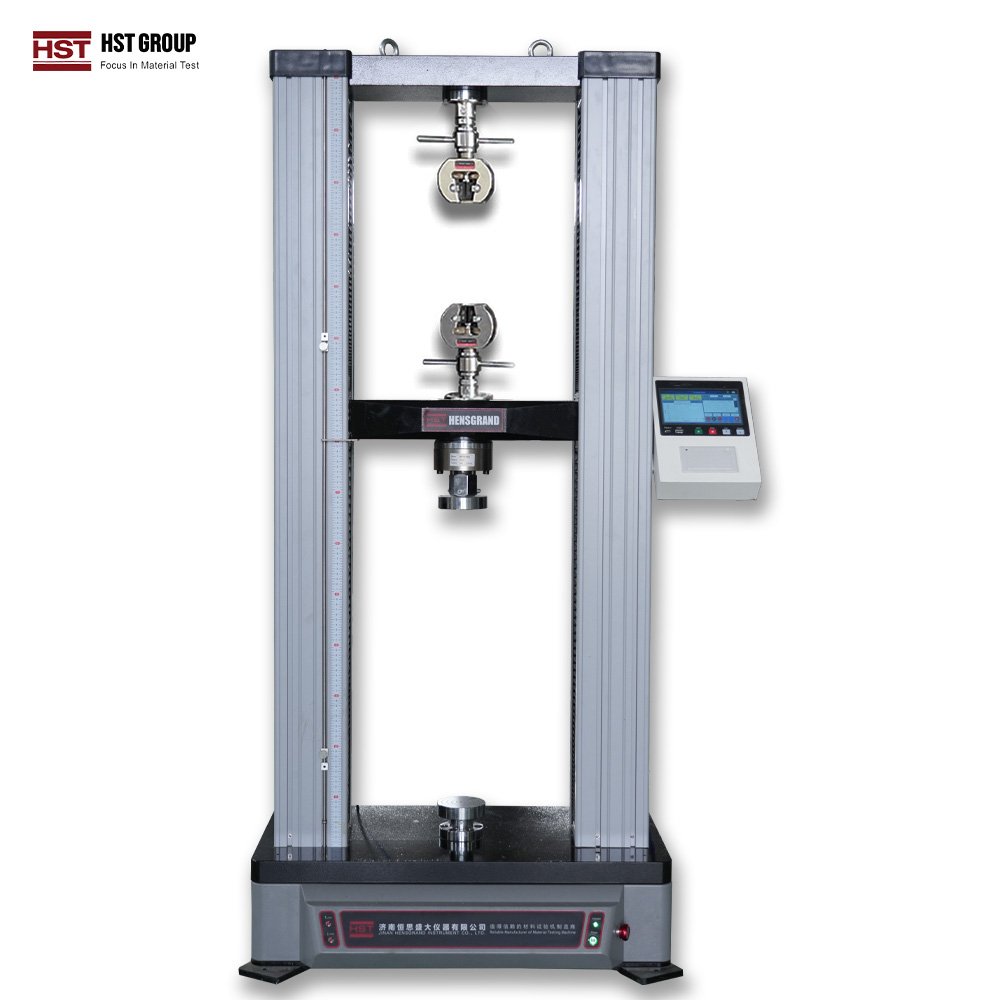

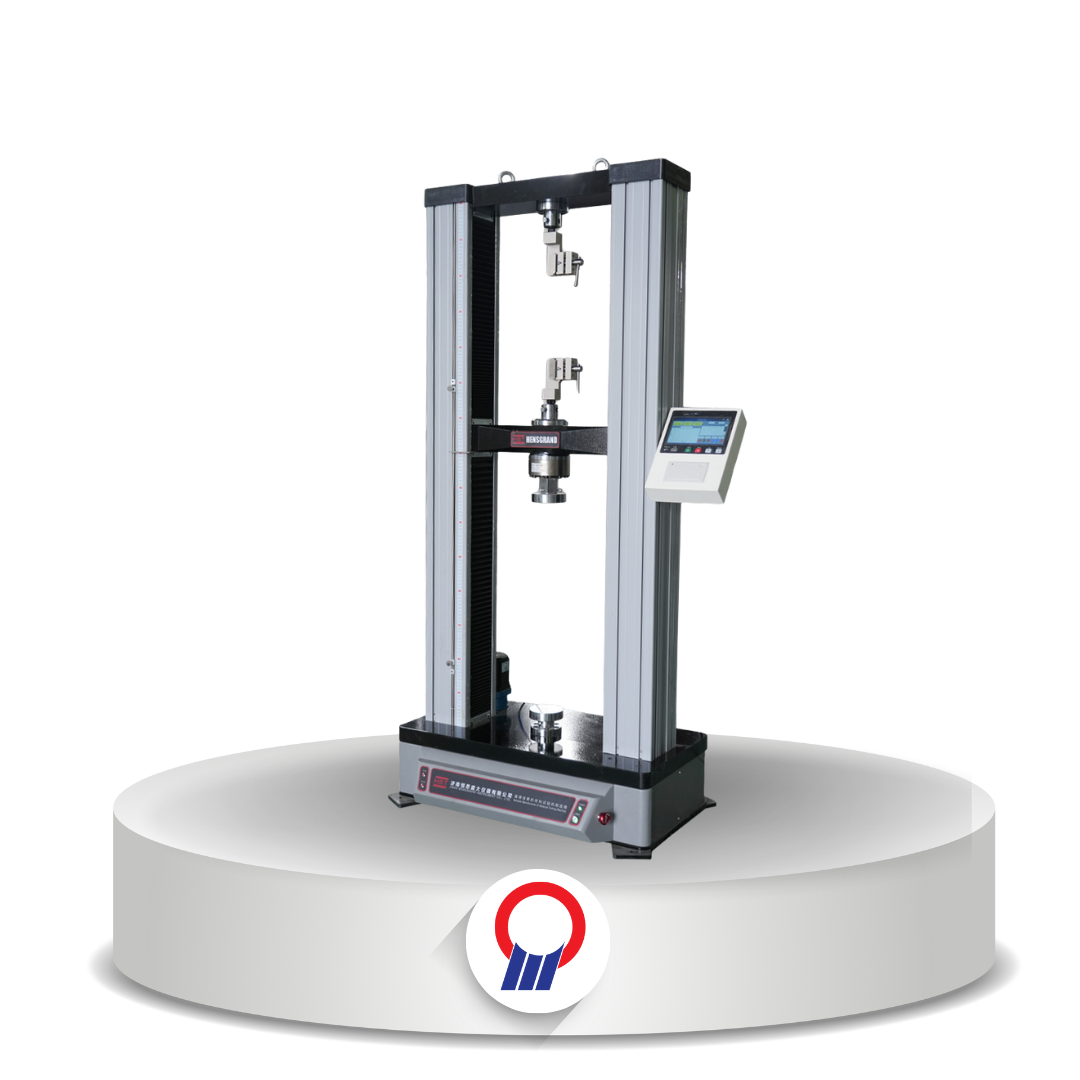

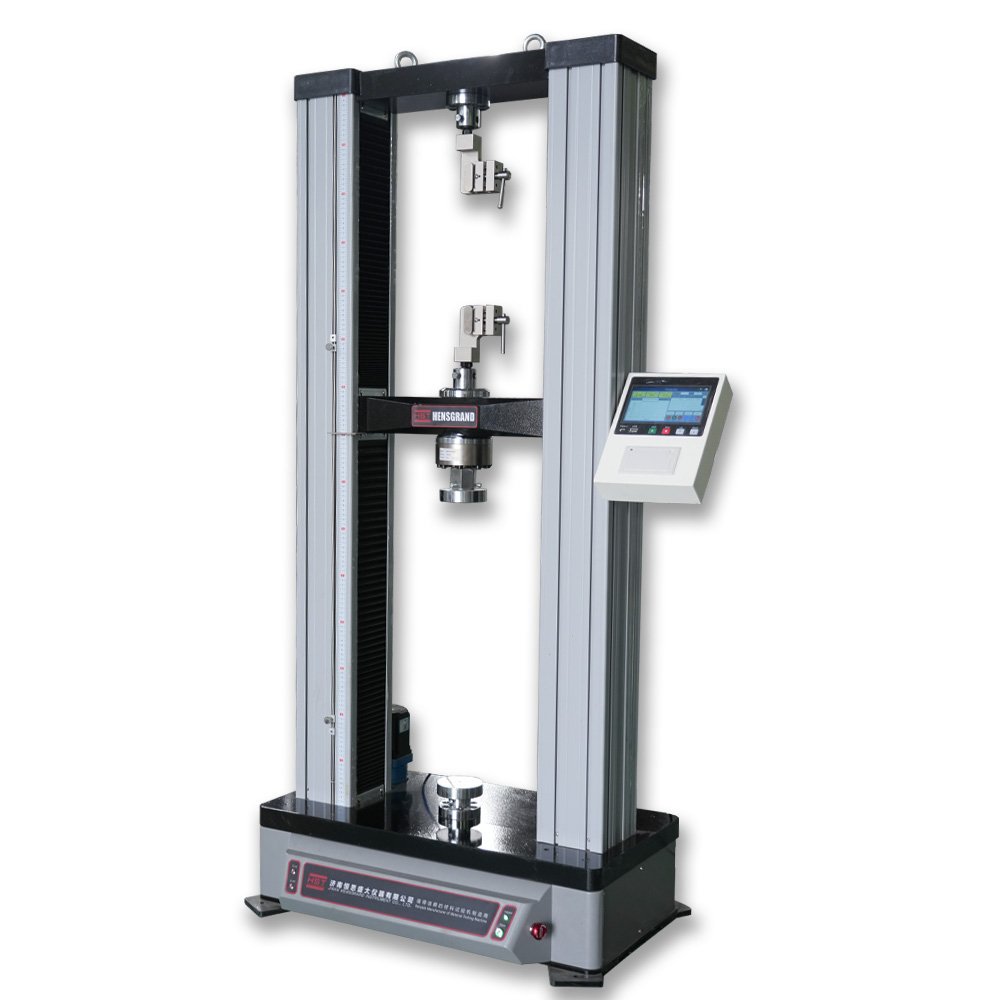

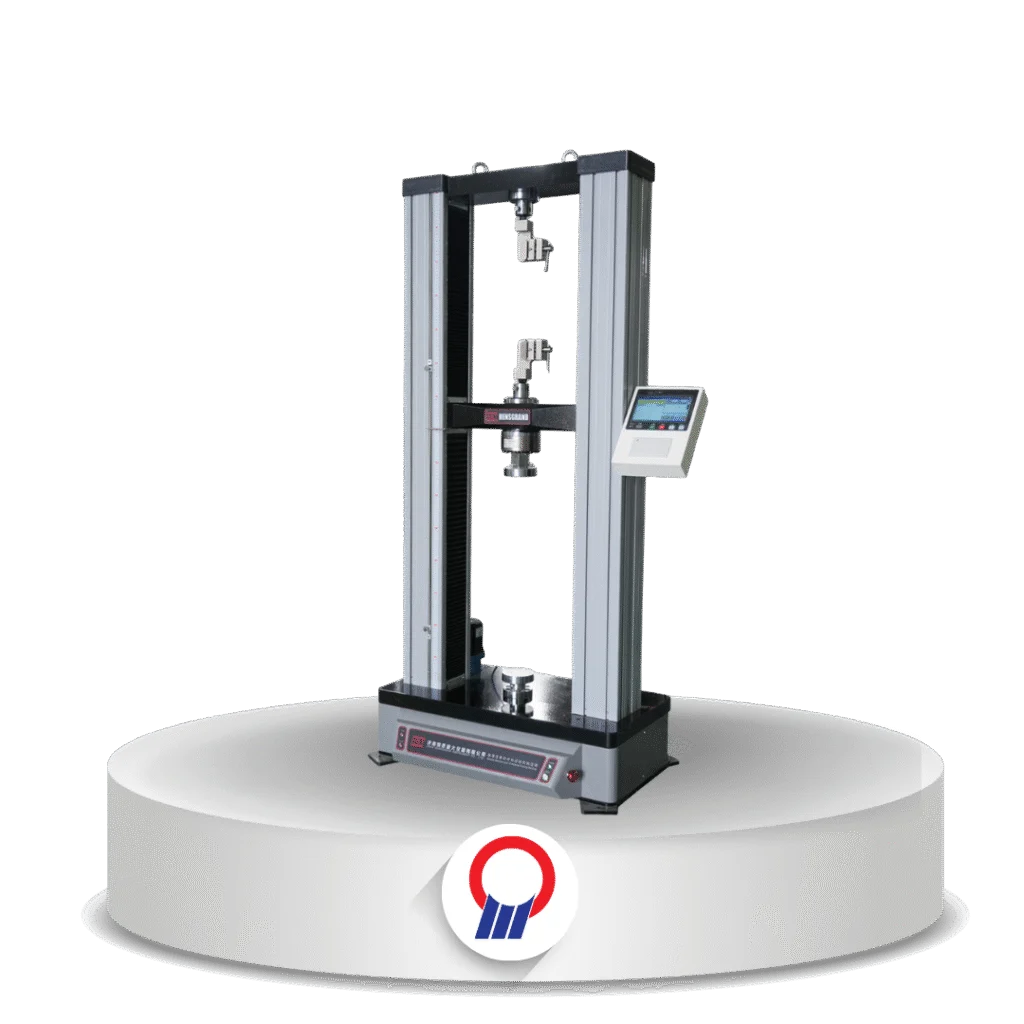

WDS Series Double Column Digital Display Universal Testing Machine(10KN,20KN,50KN,100KN)
HST

WDS Series Double Column Digital Display Universal Testing Machine(10KN,20KN,50KN,100KN)

Overview

Mesin uji universal digital display dua kolom seri WDS-E kapasitas 10, 20, 50, dan 100 kN, kelas 1.

Fitur Utama

  • Empat model: WDS-10E, 20E, 50E, dan 100E
  • Kelas 1 menurut ISO 7500-1, memenuhi ASTM E4; akurasi beban ≤ ±1%
  • Resolusi perpindahan 0,01 mm; akurasi kecepatan ±1%
  • Ruang tarik 650–770 mm dan ruang tekan 900–1.000 mm
  • Daya 1 kW, AC 220 V
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST WDS-10E, WDS-20E, WDS-50E, WDS-100E
Structure Double column, double space
Max. Load 10, 20, 50, 100 kN
Load Accuracy Class 1 according to ISO 7500-1; meets ASTM E-4
Load Range 2% ~ 100% F·S
Accuracy of Test Load ≤ ±1%
Resolution of Displacement 0.01 mm
Speed Accuracy Within ±1% of set speed
Test Speed WDS-10E, 20E: 0.01-1000 mm/min
WDS-50E: 0.01-500 mm/min
WDS-100E: not listed
Tensile Space (mm) WDS-10E, 20E: 670
WDS-50E: 770
WDS-100E: 650
Compression Space (mm) WDS-10E, 20E: 900
WDS-50E: 1000
WDS-100E: 1000
Test Width (mm) WDS-10E, 20E, 50E: 450
WDS-100E: 550
Dimensions (L x W x H) WDS-10E, 20E: 850 x 590 x 1750 mm
WDS-50E: 840 x 570 x 1850 mm
WDS-100E: 950 x 660 x 2000 mm
Weight WDS-10E, 20E: 370 kg
WDS-50E: 420 kg
WDS-100E: 690 kg
Power Supply 1 kW, AC 220V ±10%, 50Hz/60Hz
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
