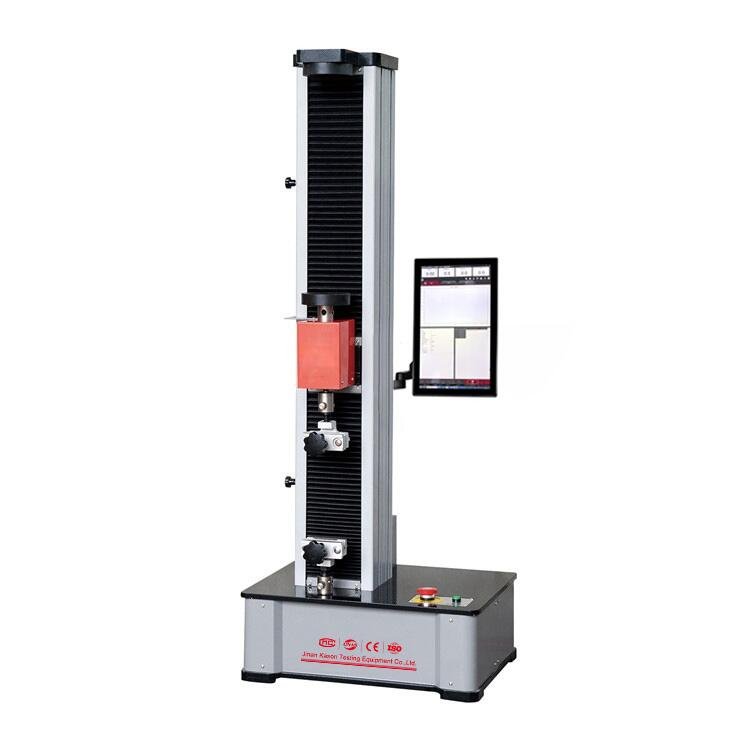

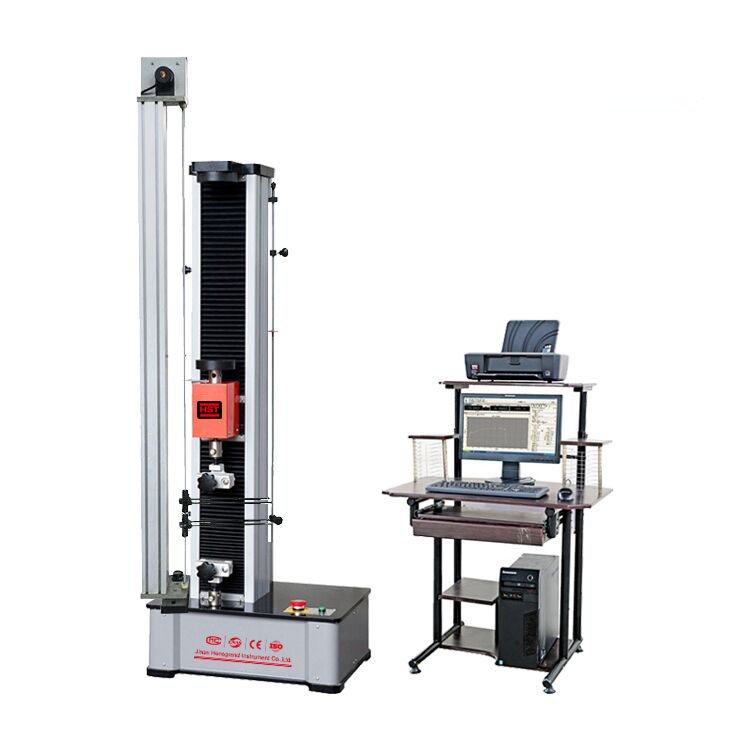

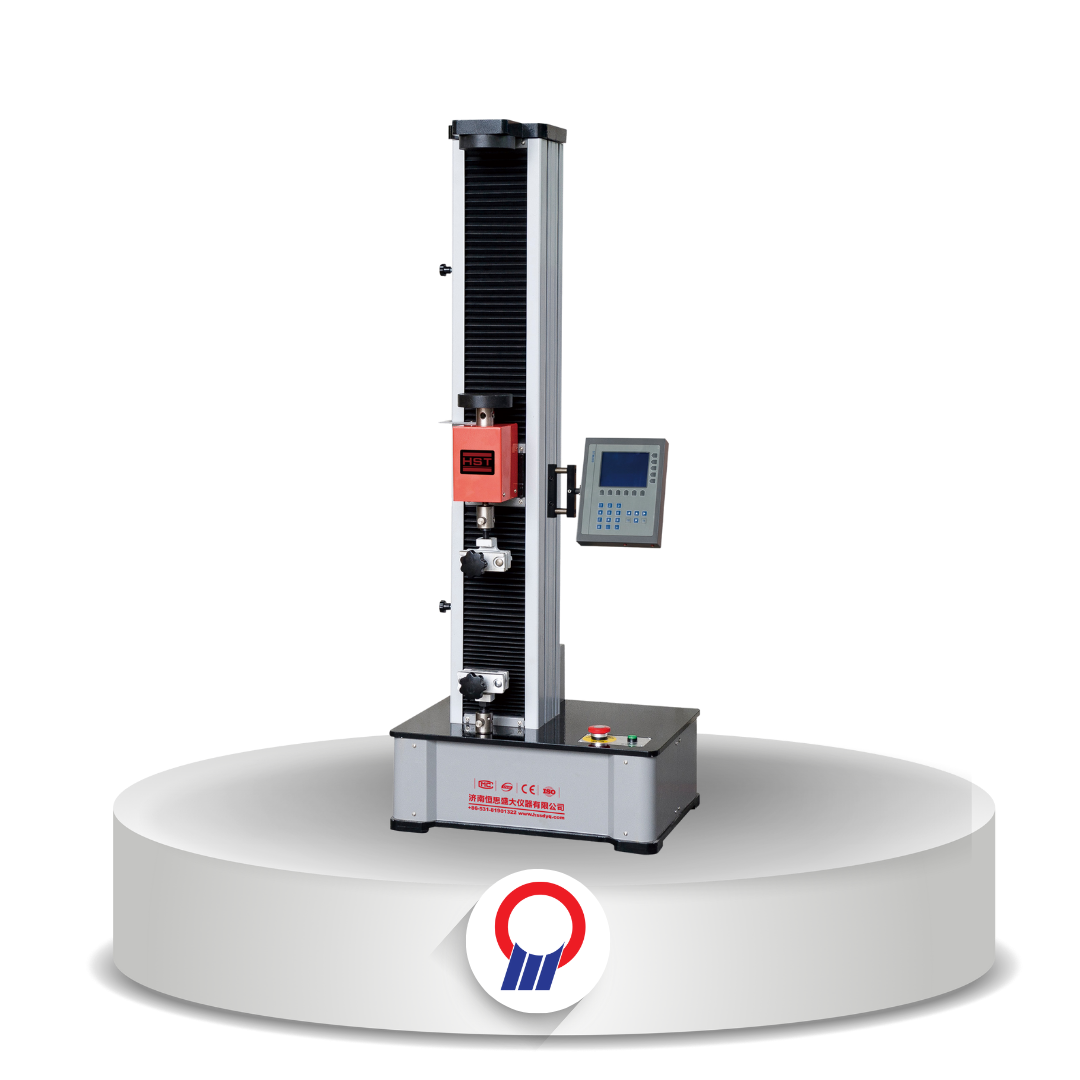

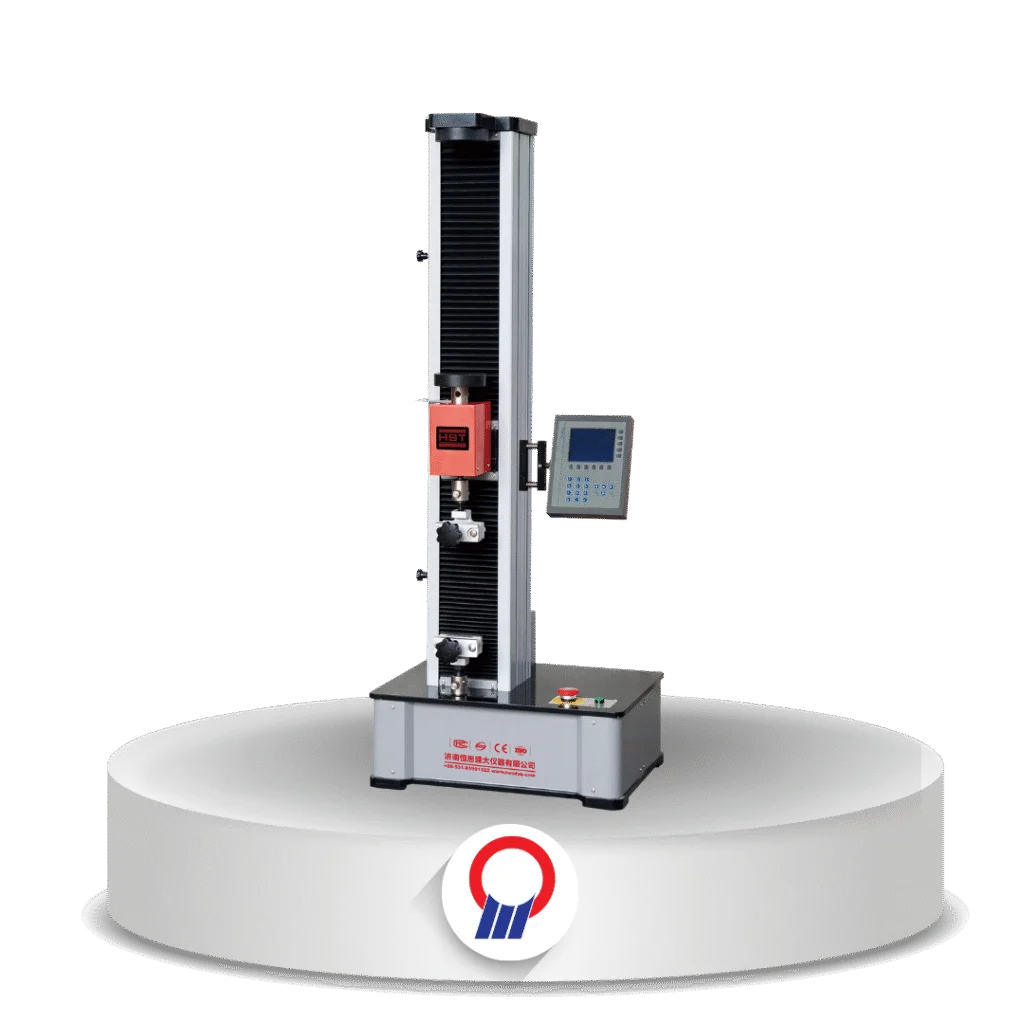

WDS Rubber Tensile Testing Machine
HST

WDS Rubber Tensile Testing Machine

Overview

Mesin uji tarik karet satu kolom seri WDS (100 N sampai 5 kN) sesuai ASTM D412, ASTM D624, dan ISO 37.

Fitur Utama

  • Enam model: 100 N, 200 N, 500 N, 1 kN, 2 kN, dan 5 kN
  • Kelas 1 menurut ISO 7500-1, memenuhi ASTM E4
  • Kecepatan uji 0,01–500 mm/menit
  • Ruang tarik/tekan 600 mm (800 mm model tinggi)
  • Dimensi 520 x 400 x 1.340 mm, bobot sekitar 110 kg
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDS-01E (100 N), 02E (200 N), 05E (500 N), 1E (1000 N), 2E (2000 N), 5E (5000 N)
Structure Single column double spaces
Load Accuracy Class 1 according to ISO 7500-1; meets ASTM E-4
Load Range 2% ~ 100% F·S
Accuracy of Test Load ≤ ±1%
Resolution of Displacement 0.01 mm
Test Speed Range 0.01 to 500 mm/min
Speed Accuracy Within ±1% of set speed
Tensile Space 600 / 800 mm (heighten model)
Compression Space 600 / 800 mm (heighten model)
Dimension (L x W x H) 520 x 400 x 1340 mm
Weight 110 kg approx.
Power Supply AC 220V ±10%, 50Hz (can be customized)
Standards ASTM D412, ASTM D624, ISO 37
