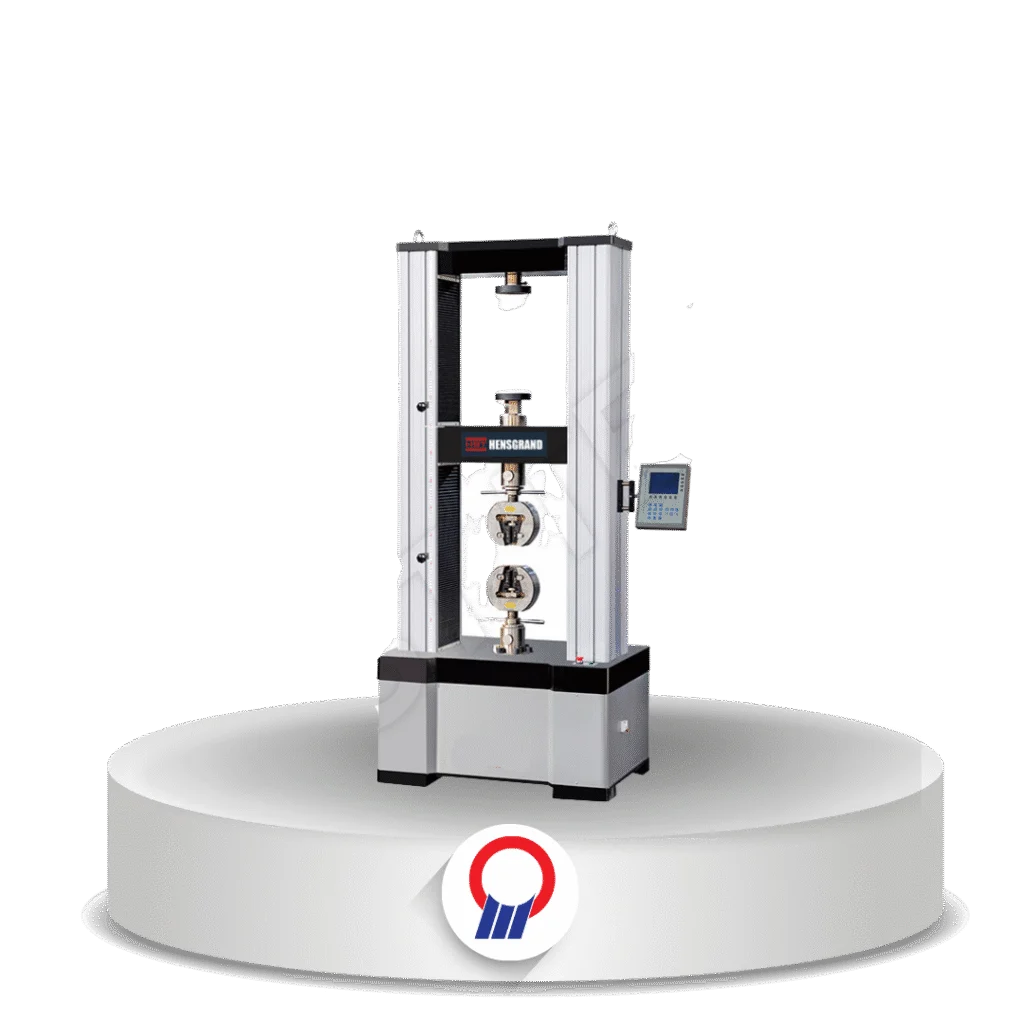

WDS 200KN,300KN,20Ton,30Ton Digital Display Universal Tensile Strength Tester
HST

WDS 200KN,300KN,20Ton,30Ton Digital Display Universal Tensile Strength Tester

Overview

Mesin uji tarik universal digital display seri WDS-E kapasitas 200 kN dan 300 kN, dua kolom dua ruang, kelas 1.

Fitur Utama

  • Model WDS-200E (200 kN) dan WDS-300E (300 kN)
  • Kelas 1 menurut ISO 7500-1, memenuhi ASTM E4; akurasi beban ≤ ±1%
  • Kecepatan uji 0,01–500 mm/menit; ruang tarik/tekan 700 mm; lebar uji 600 mm
  • Dimensi 1.108 x 870 x 2.395 mm, bobot sekitar 1.800 kg
  • Catu daya 2,5 kW, 3 fase AC 220 V
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification

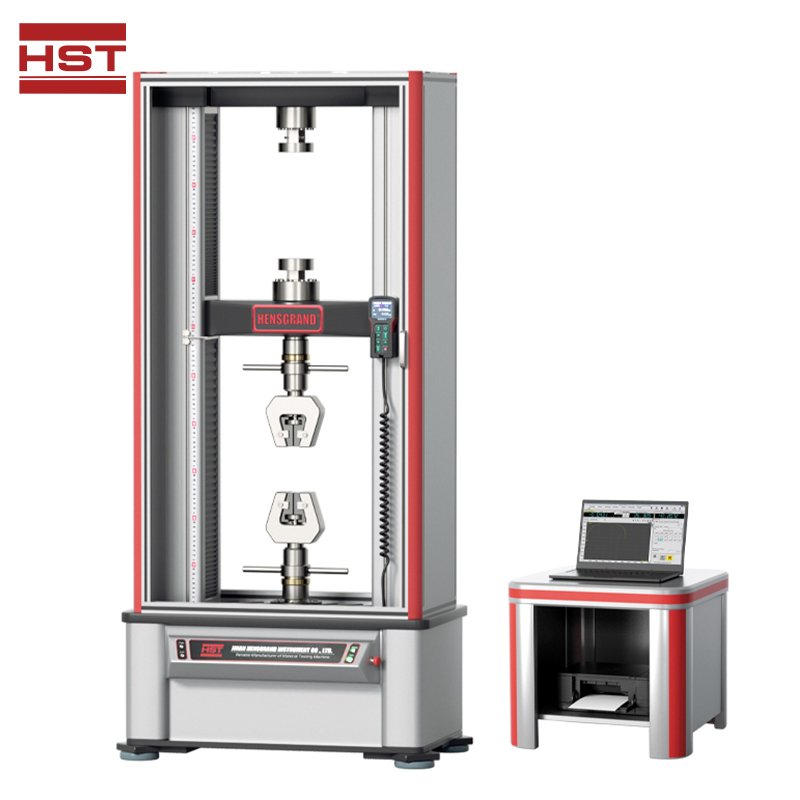

Models HST WDS-200E, WDS-300E

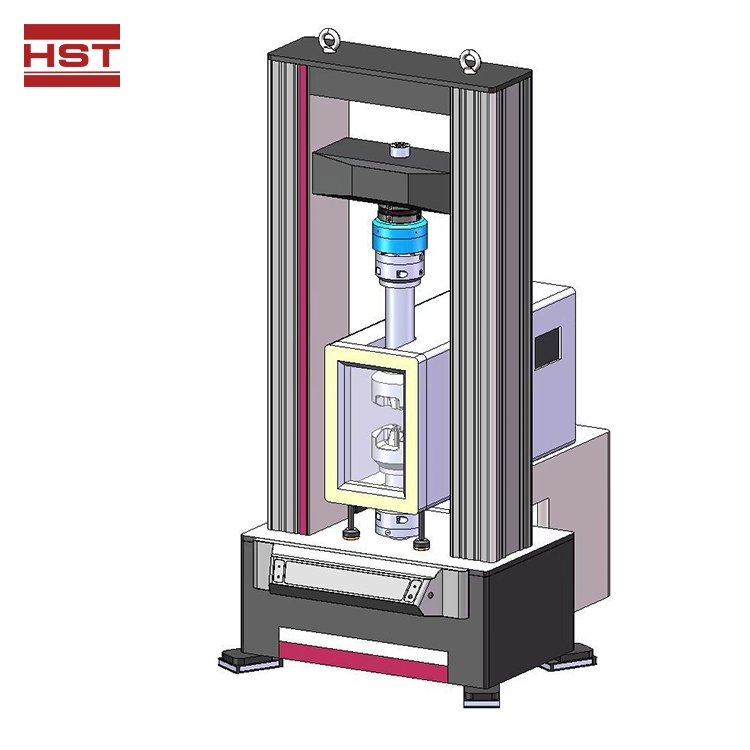

Structure Double column, double space
Max. Capacity 200 kN, 300 kN
Load Accuracy Class 1 according to ISO 7500-1; meets ASTM E-4
Load Range 2% ~ 100% F·S
Accuracy of Test Load ≤ ±1%
Resolution of Displacement 0.01 mm
Test Speed Range 0.01 to 500 mm/min
Speed Accuracy Within ±1% of set speed
Tensile Space 700 mm
Compression Space 700 mm
Test Width 600 mm
Dimensions (L x W x H) 1108 x 870 x 2395 mm
Weight 1800 kg approx.
Power Supply 2.5 kW, 3-phase AC 220V ±10%, 50/60 Hz
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
