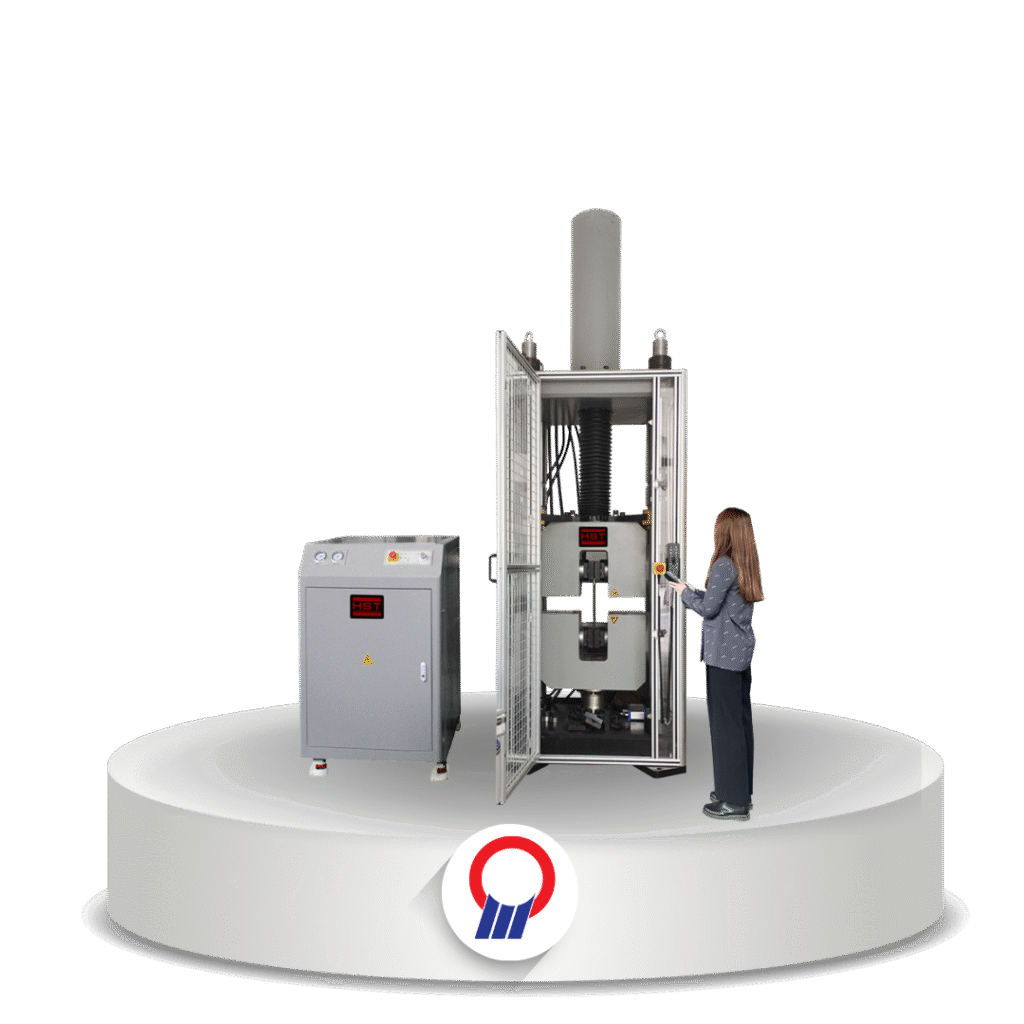

WAW-J Electro-hydraulic Servo Rebar Tension Testing Machine
HST

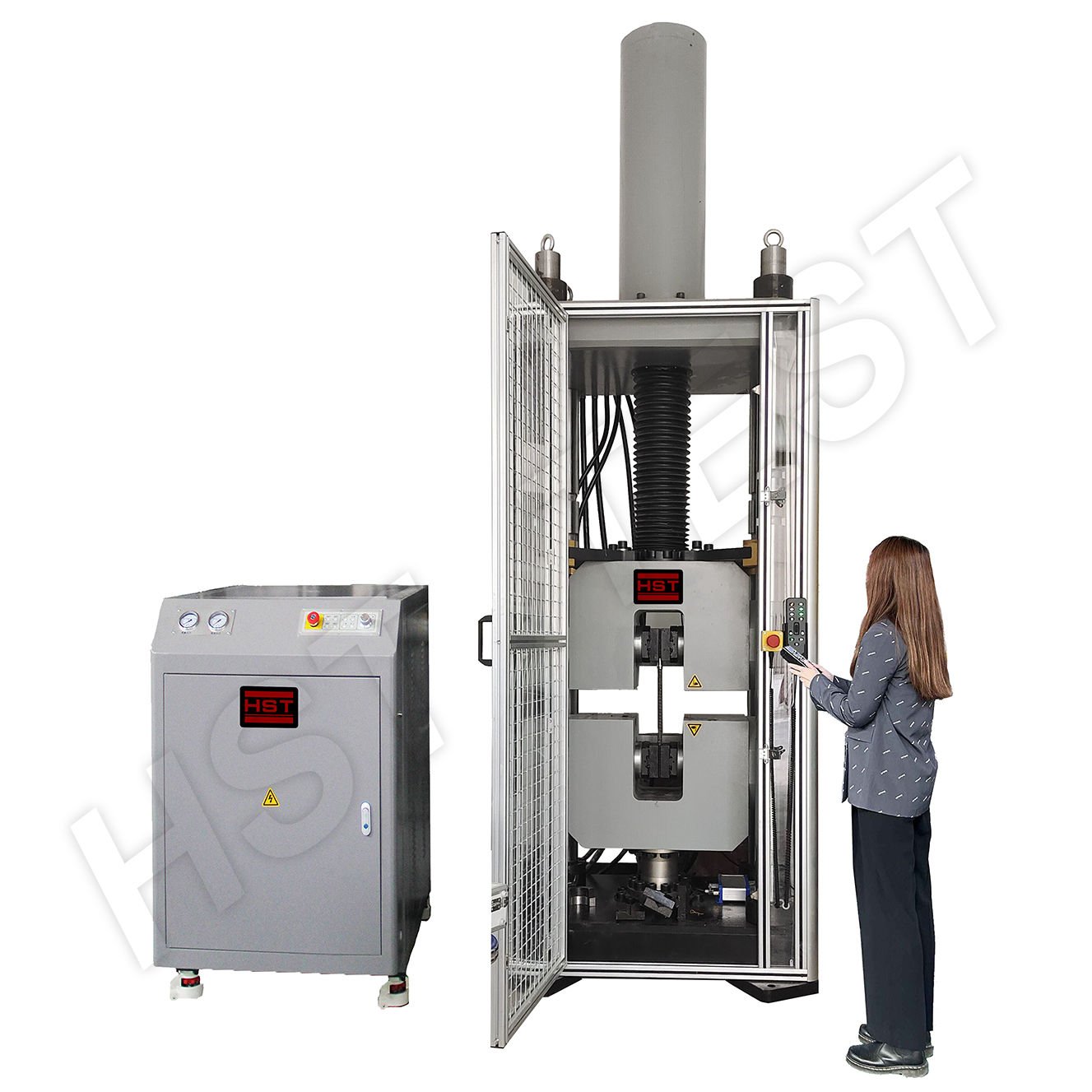

WAW-J Electro-hydraulic Servo Rebar Tension Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Seri WAW-J untuk pengujian tarik baja tulangan (300 sampai 3.000 kN), ruang uji tunggal.

Fitur Utama

  • Lima model: 300, 600, 1.000, 2.000, dan 3.000 kN
  • Kelas 0,5 (±0,5% skala penuh), laju pembebanan 0,02–2% FS/s
  • Perlindungan overload 130%
  • Klem hidrolik otomatis dengan side action grip
  • Pelat tekan Ф160 mm
  • Catu daya 3 fase 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST-WAW300J, 600J, 1000J, 2000J (printed ‘WAW200J’), 3000J
Structure Four column
Max. Load Capacity 300, 600, 1000, 2000, 3000 kN
Load Resolution Capacity/500,000 FS
Accuracy of Testing Load Class 0.5 (0.5% of full scale), ISO 7500 ±0.5
Overload Protection 130% (no deformation, no mechanical damage)
Accuracy of Deformation ±0.5%
Test Range 1% – 100%
Deformation Measurement Range 1% – 100%
Resolution of Displacement 0.01 mm
Test Force Loading Rate Range 0.02% – 2% FS/s
Piston Rising Speed (mm/min) 300J, 600J, 1000J: 0-200
2000J, 3000J: 0-100
Max. Tensile Space (mm) 300J, 600J: 700
1000J: 750
2000J: 830
3000J: 850
Max. Compression Space (mm) 300J, 600J: 550
1000J: 600
2000J: 680
3000J: 650
Actuator Stroke (mm) 300J, 600J: 650
1000J: 700
2000J: 750
3000J: 650
Distance Between Columns (mm) 300J, 600J: 580
1000J: 680
2000J: 780
3000J: 840
Round Insert (mm) 300J, 600J: Ф13-Ф26, Ф26-Ф40
1000J: Ф13-Ф26, Ф26-Ф45
2000J: Ф15-Ф40, Ф40-Ф70
3000J: Ф15-Ф30, Ф30-Ф50, Ф50-Ф80
Clamping Method Hydraulic automatic clamp with side action grip
Compression Platens Ф160 mm
Power Supply 3-phase, 380V, 50Hz
Standards ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, BS 4449
