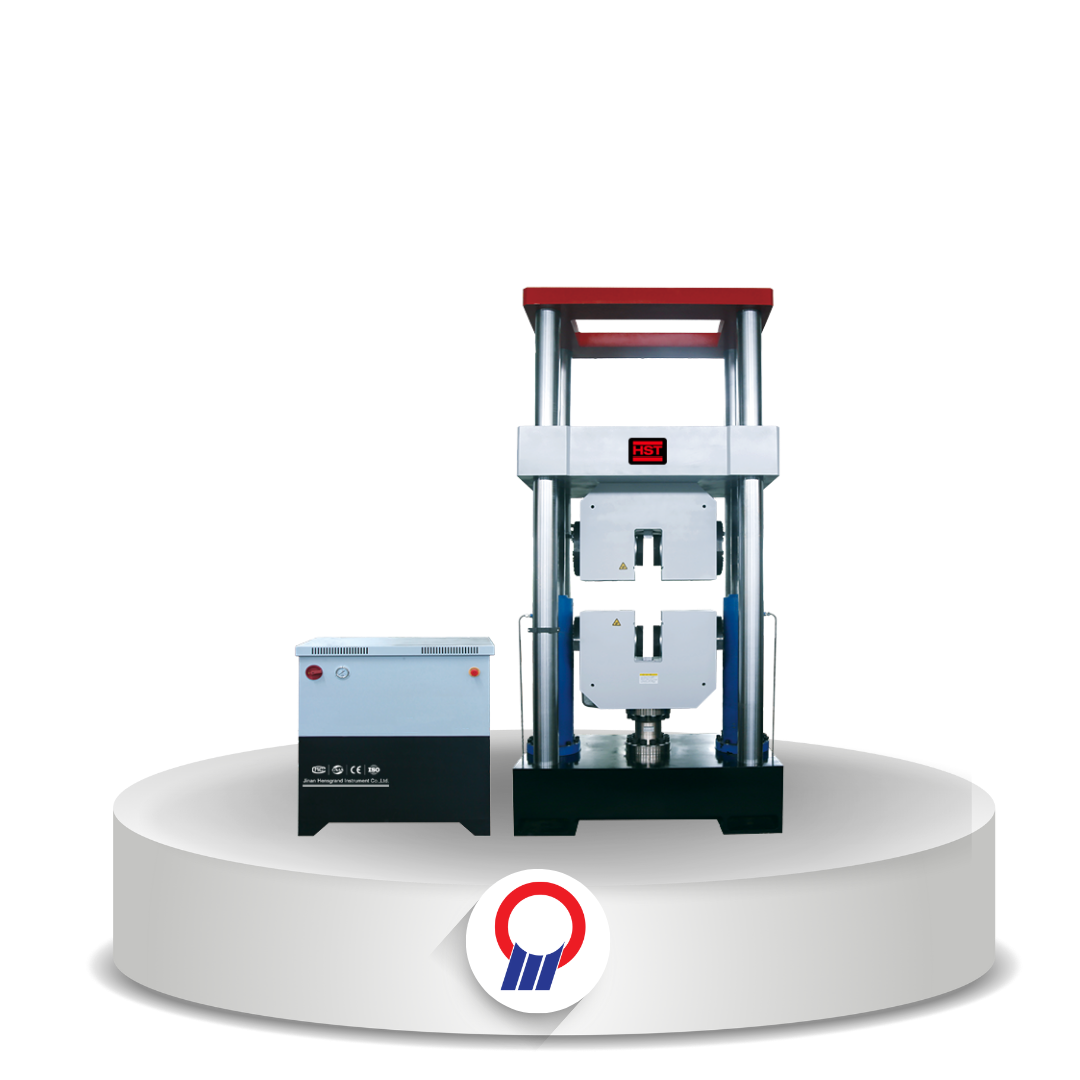

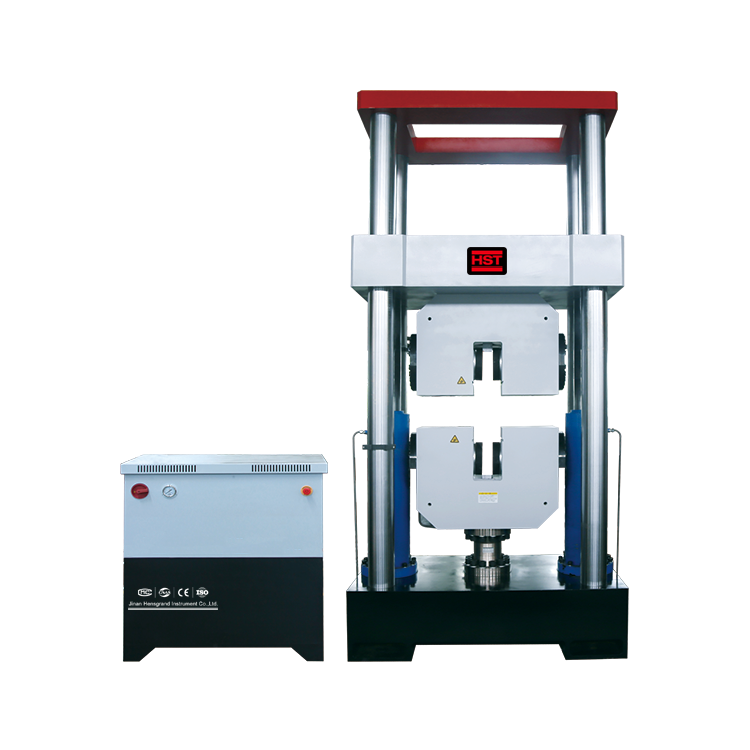

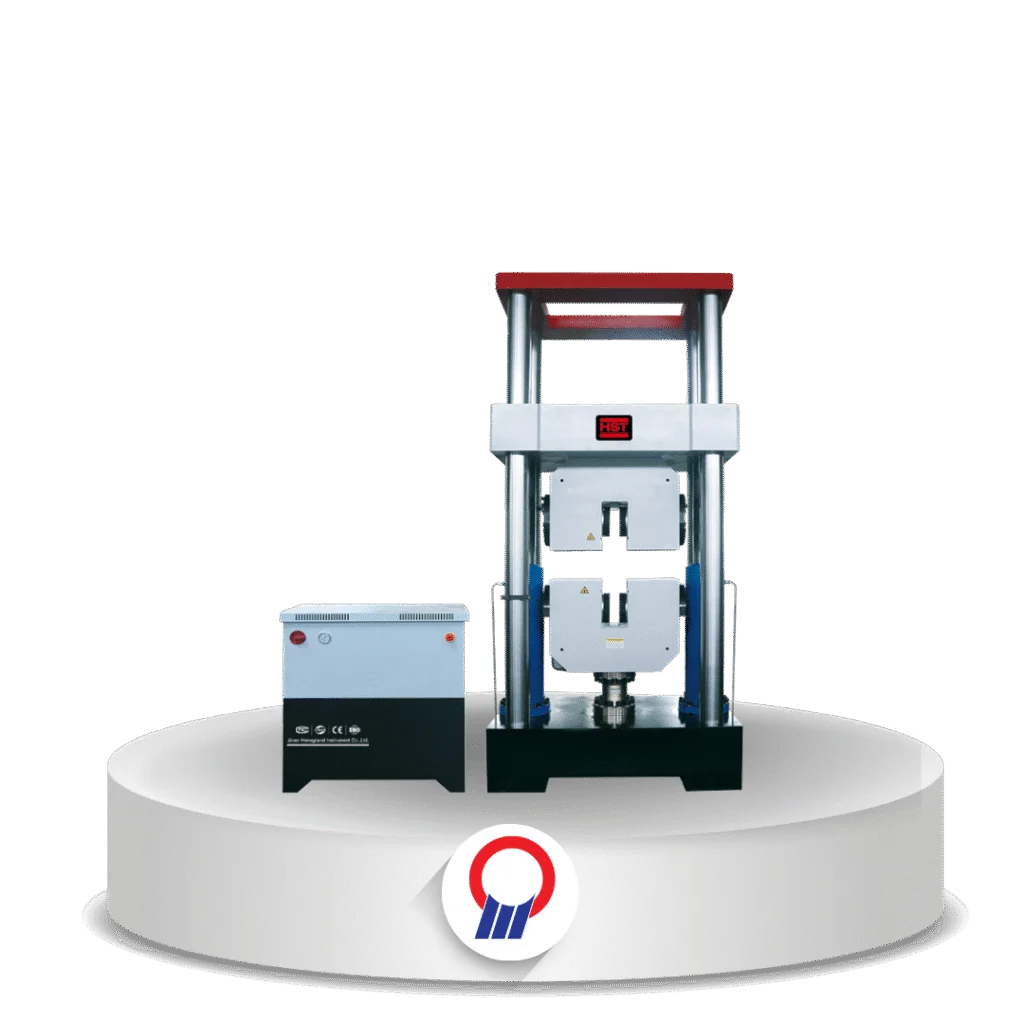

WAW-H 1000,2000kN Double Cylinder Electro-hydraulic Servo Universal Testing Machine
HST

WAW-H 1000,2000kN Double Cylinder Electro-hydraulic Servo Universal Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Seri WAW-H dua silinder (empat kolom dua silinder minyak) kapasitas 1.000 dan 2.000 kN.

Fitur Utama

  • Kapasitas 1.000 kN dan 2.000 kN; struktur empat kolom dua silinder
  • Kontrol tiga loop tertutup
  • Akurasi beban ≤ ±1%; resolusi beban 1/300.000
  • Klem hidrolik otomatis; spesimen bulat Φ10–Φ70 mm, pipih 0–50 mm
  • Dimensi mesin 1.330 x 880 x 2.625 mm dan kabinet kontrol 1.000 x 1.005 x 1.500 mm; bobot 7 ton
  • Catu daya 3 fase 4 kawat AC 380 V 50 Hz 9 kW
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WAW-1000H, WAW-2000H
Structure Four columns two oil cylinders
Control Way Constant stress, uniform deformation, constant displacement three closed loop control and program control
Max. Load 1000 kN, 2000 kN
Load Accuracy ≤ ±1%
Load Range 2% ~ 100% FS
Load Resolution 1/300000
Deformation Measurement Range 2% ~ 100% FS
Deformation Indication Relative Error ≤ ±0.5%
Displacement Resolution 0.01 mm
Displacement Indication Relative Error ≤ ±0.5%
Max. Piston Moving Speed 0 ~ 100 mm/min, stepless speed adjusting
Clamping Method Hydraulic automatic clamping
Round Specimen Clamping Range Φ10 ~ Φ30, Φ30 ~ Φ50, Φ50 ~ Φ70 mm
Flat Specimen Clamping Range 0 ~ 25, 25 ~ 50 mm
Flat Specimen Clamping Width 140 mm
Flat Specimen Clamping Length 160 mm
Compression Plate Size Φ240 mm
Bending Roller Distance 450 mm
Width of Bending Rollers 120 mm
Host Dimension 1330 x 880 x 2625 mm
Control Cabinet Dimension 1000 x 1005 x 1500 mm
Host Weight 7 tons
Power Supply 3-phase 4-wires, AC 380V, 50Hz, 9 kW
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
