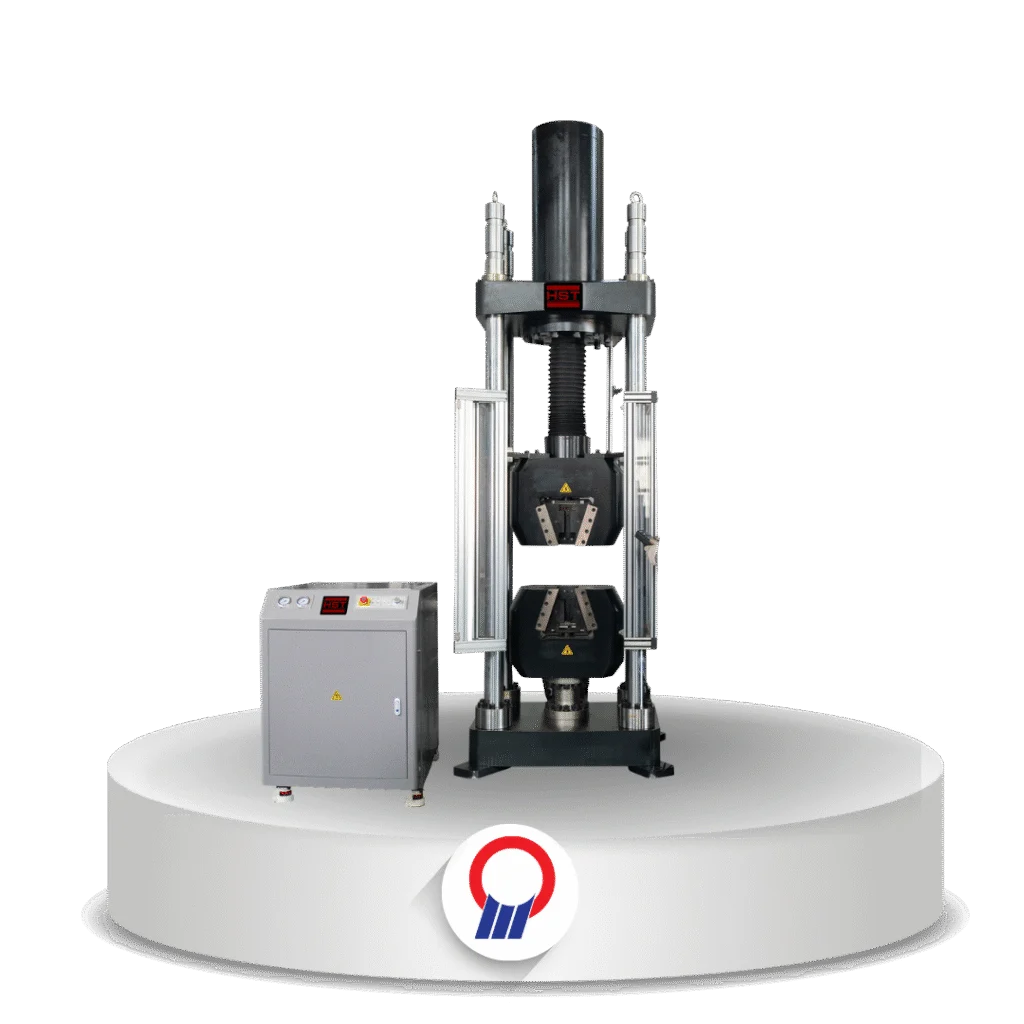

WAW-F Steel rebar Single Test Space Hydraulic Tensile Testing Machine
HST

WAW-F Steel rebar Single Test Space Hydraulic Tensile Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Ruang uji tunggal untuk baja tulangan, kapasitas 300 sampai 3.000 kN.

Fitur Utama

  • Lima model: 300, 600, 1.000, 2.000, dan 3.000 kN
  • Kelas 0,5 skala ISO 7500 (±0,5%)
  • Struktur empat kolom, ruang uji tunggal
  • Langkah aktuator 650–750 mm
  • Rentang spesimen bulat Ф10–Ф70 mm dan pipih 0–70 mm
  • Catu daya 3 fase 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST-WAW300F, 600F, 1000F, 2000F (printed ‘WAW200F’), 3000F
Structure Four column
Max. Load Capacity 300, 600, 1000, 2000, 3000 kN
Accuracy of Testing Load Class 0.5, ISO 7500 scale (±0.5)
Load Test Range 1% – 100%
Accuracy of Deformation ±0.5%
Deformation Measurement Range 1% – 100%
Deformation Resolution ±1/500000 FS
Actuator Stroke (mm) 300F, 600F: 650
1000F: 700
2000F: 750
3000F: 650
Piston Rising Speed (mm/min) 300F, 600F, 1000F: 200
2000F, 3000F: 60
Max. Tensile Space (mm) 300F, 600F: 700
1000F: 825
2000F: 880
3000F: 850
Max. Compression Space (mm) 300F, 600F: 530
1000F: 650
2000F: 590
3000F: 650
Distance Between Columns (mm) 300F: 550
600F: 570
1000F: 780
2000F: 900
3000F: 840
Round Sample Range (mm) 300F: Ф10-Ф32
600F: Ф13-Ф40
1000F: Ф13-Ф45
2000F, 3000F: Ф15-Ф70
Flat Sample Range (mm) 300F, 600F: 0-30
1000F: 0-40
2000F, 3000F: 10-70
Power Supply 3-phase, 380V, 50Hz
Standards ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, BS 4449
