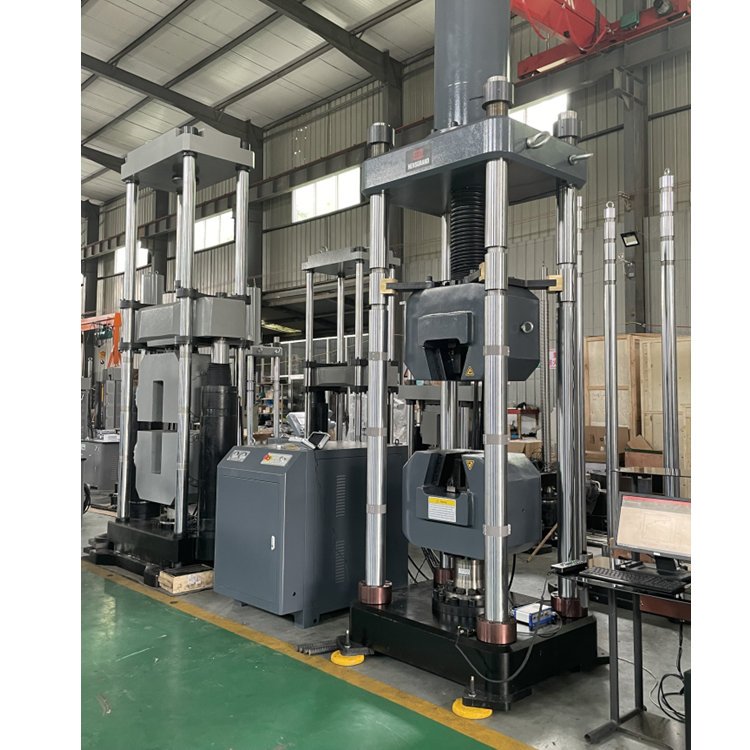

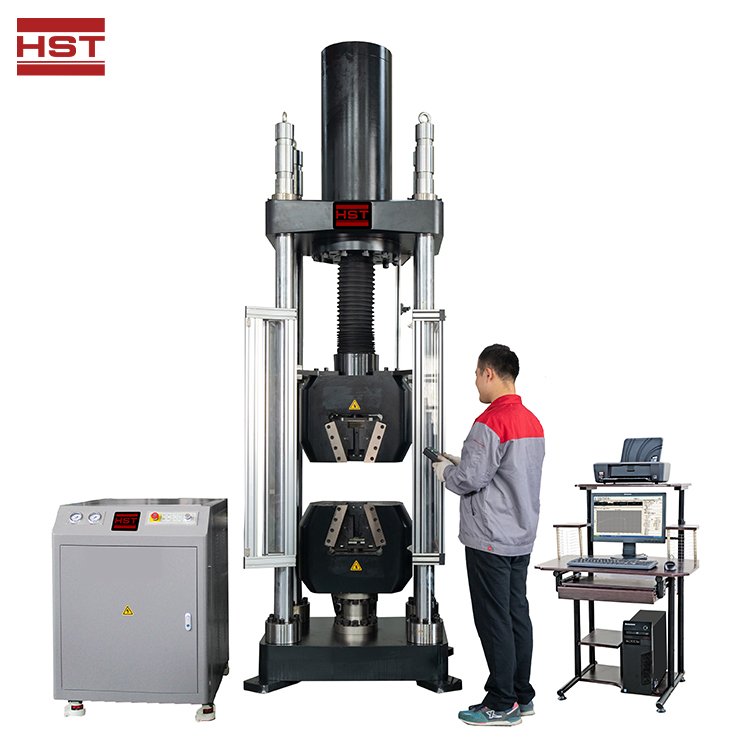

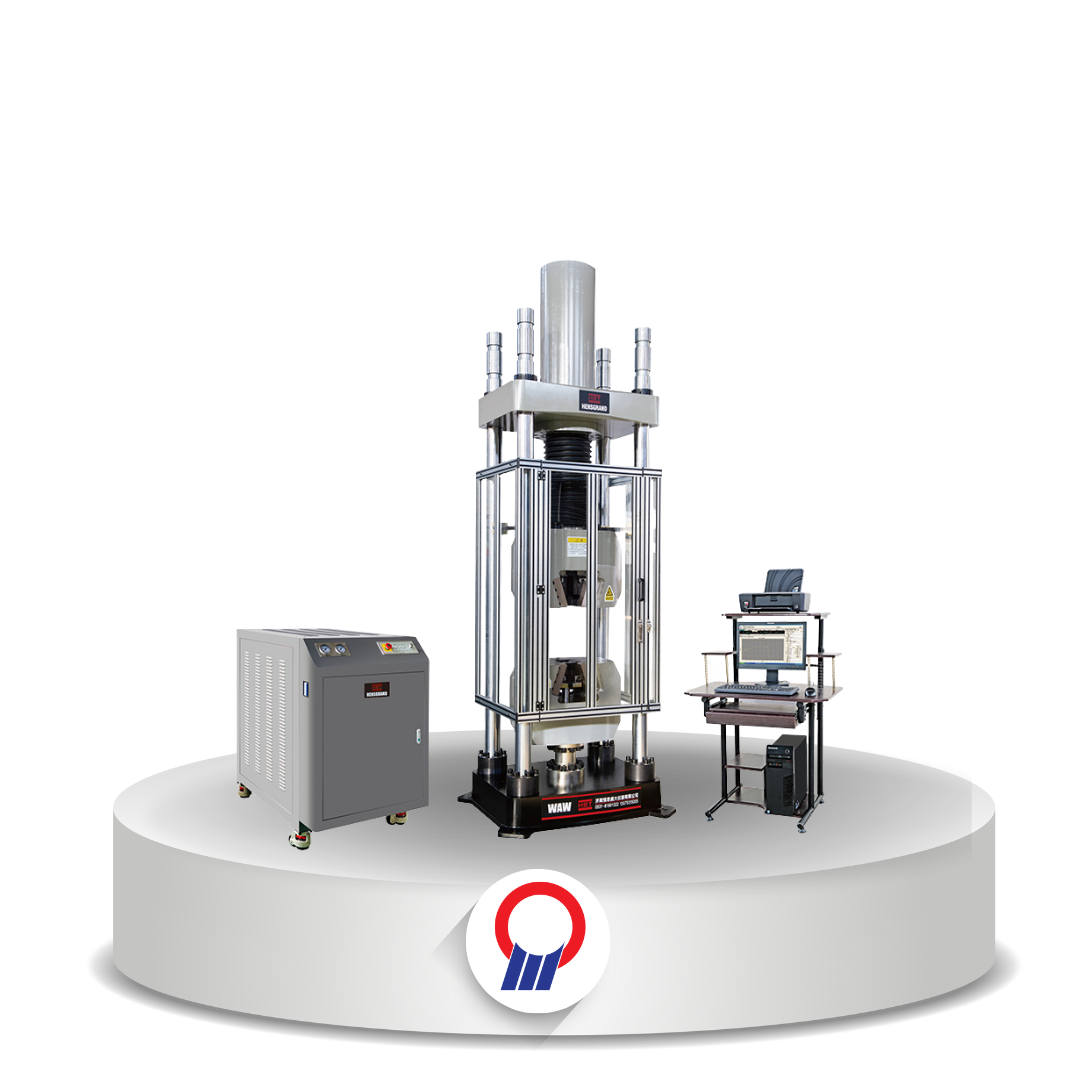

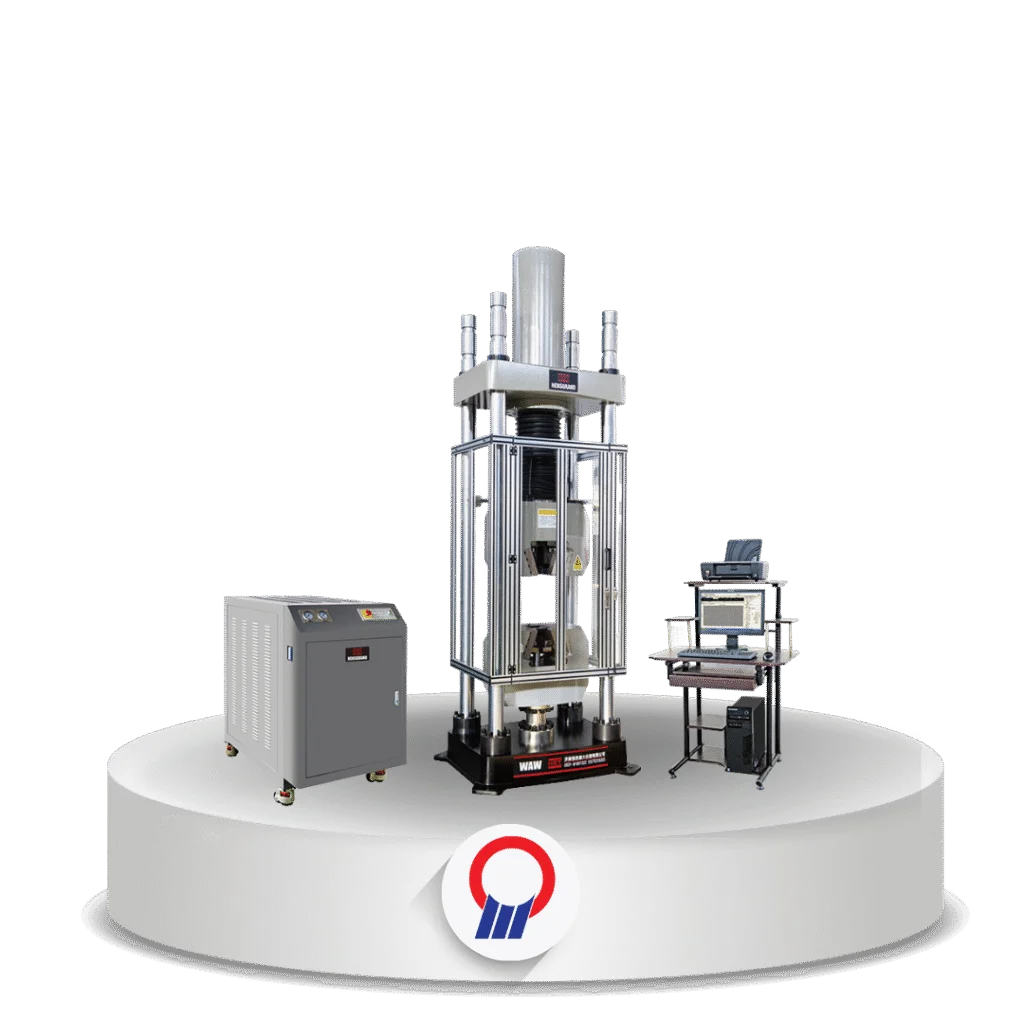

WAW-F Electro-hydraulic Servo Strength Testing Machine(200Ton, 300Ton)
HST

WAW-F Electro-hydraulic Servo Strength Testing Machine(200Ton, 300Ton)

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Seri WAW-F 200 ton dan 300 ton (2.000 dan 3.000 kN), ruang uji tunggal.

Fitur Utama

  • Kapasitas 2.000 kN dan 3.000 kN
  • Kelas 0,5 skala ISO 7500
  • Struktur empat kolom; langkah aktuator 750 / 650 mm
  • Ruang tarik 880 / 850 mm dan ruang tekan 590 / 650 mm
  • Rentang spesimen bulat Ф15–Ф70 mm dan pipih 10–70 mm
  • Catu daya 3 fase 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST-WAW2000F, HST-WAW3000F (printed ‘WAW200F’)
Structure Four column
Max. Load Capacity 2000 kN, 3000 kN
Accuracy of Testing Load Class 0.5, ISO 7500 scale
Load Test Range 1% – 100%
Accuracy of Deformation ±0.5%
Deformation Measurement Range 1% – 100%
Deformation Resolution ±1/500000 FS
Actuator Stroke (mm) 2000F: 750
3000F: 650
Piston Rising Speed 60 mm/min
Max. Tensile Space (mm) 2000F: 880
3000F: 850
Max. Compression Space (mm) 2000F: 590
3000F: 650
Distance Between Columns (mm) 2000F: 900
3000F: 840
Round Sample Range Ф15-Ф70 mm
Flat Sample Range 10-70 mm
Power Supply 3-phase, 380V, 50Hz
Standards ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, BS 4449
