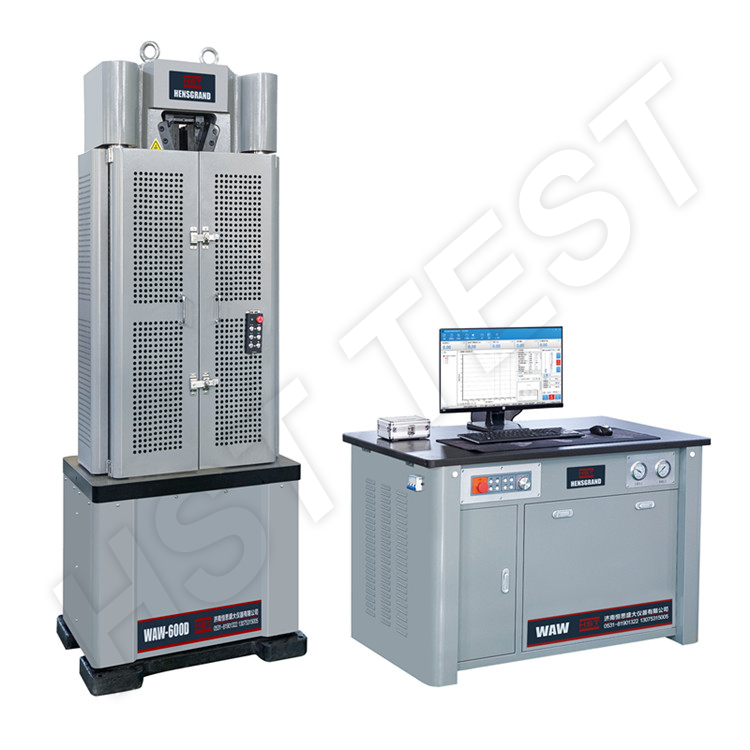

WAW-600D 600KN 60Ton Computer Control Steel Rebar Hydraulic Universal Testing Machine
HST

WAW-600D 600KN 60Ton Computer Control Steel Rebar Hydraulic Universal Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Kapasitas 600 kN (60 ton) untuk baja tulangan, klem hidrolik otomatis.

Fitur Utama

  • Kapasitas 600 kN, kelas akurasi 0,5
  • Ruang tarik 900 mm dan ruang tekan 650 mm
  • Jarak antar kolom 500 mm; langkah piston 200 mm
  • Resolusi beban kapasitas/500.000; resolusi perpindahan 0,01 mm
  • Klem hidrolik otomatis
  • Catu daya 3 fase AC 380 V
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model (spec table) HST WAW-600E (page title: WAW-600D)
Max. Load 600 kN
Load Accuracy Class 0.5
Measuring Range 2% ~ 100%
Displacement Resolution 0.01 mm
Load Resolution Capacity/500,000
Tensile Space 900 mm
Compression Space 650 mm
Distance Between Two Columns 500 mm
Piston Stroke 200 mm
Clamping Method Hydraulic automatic clamp
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
