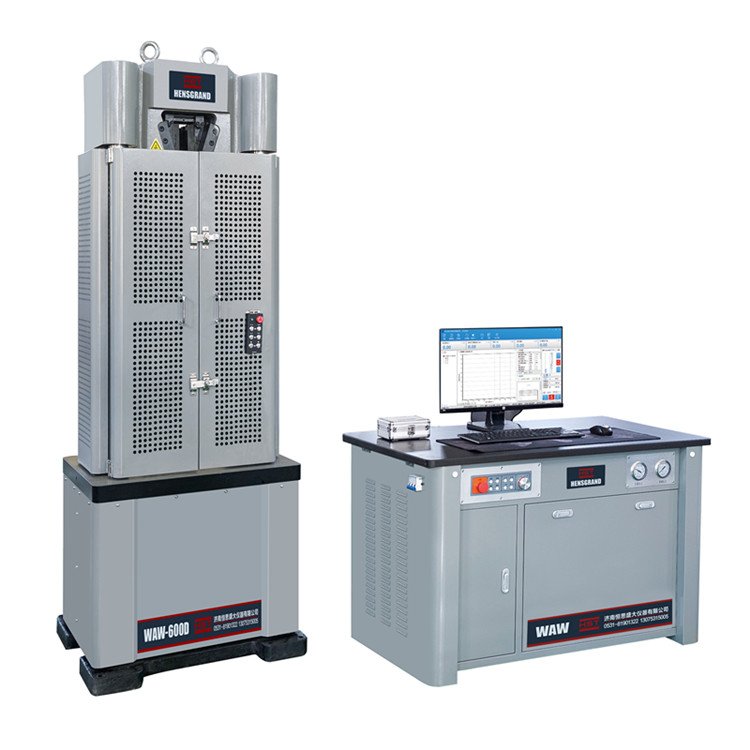

WAW-500E 500Kn 50Ton Computerized Hydraulic Universal tensile tester
HST

WAW-500E 500Kn 50Ton Computerized Hydraulic Universal tensile tester

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Kapasitas 500 kN (50 ton), empat kolom dua sekrup.

Fitur Utama

  • Kapasitas 500 kN, akurasi beban ≤ ±0,5%
  • Struktur 4 kolom 2 sekrup; kendali tiga loop tertutup
  • Langkah piston 250 mm; kecepatan 0–90 mm/menit
  • Ruang tarik 800 mm dan ruang tekan 650 mm (dapat dikustomisasi)
  • Klem hidrolik; spesimen bulat Φ10–Φ45 mm, pipih 0–30 mm
  • Catu daya 3 fase AC 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model HST WAW-500E
Structure 4 columns and 2 screws
Control Way Constant stress, uniform deformation, constant displacement three closed loop control and program control
Max. Load 500 kN
Load Accuracy ≤ ±0.5%
Load Range 1% – 100% FS
Load Resolution 1/500000
Deformation Measurement Range 1% ~ 100% FS
Deformation Accuracy ≤ ±0.5%
Displacement Resolution 0.01 mm
Displacement Error ≤ ±0.5%
Max. Piston Stroke 250 mm
Max. Piston Moving Speed 0-90 mm/min, stepless speed adjusting
Crosshead Lifting Speed 200 mm/min
Max. Tension Test Space 800 mm (can customize)
Max. Compression Test Space 650 mm (can customize)
Column Clearance 500 mm
Clamping Method Hydraulic clamp
Round Specimen Clamping Range Φ10-Φ26, Φ26-Φ45 mm
Flat Specimen Clamping Range 0-15, 15-30 mm
Flat Specimen Clamping Width 80 mm
Compression Plate Size Φ160 mm
Bending Roller Distance 450 mm
Width of Bending Rollers 120 mm
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
