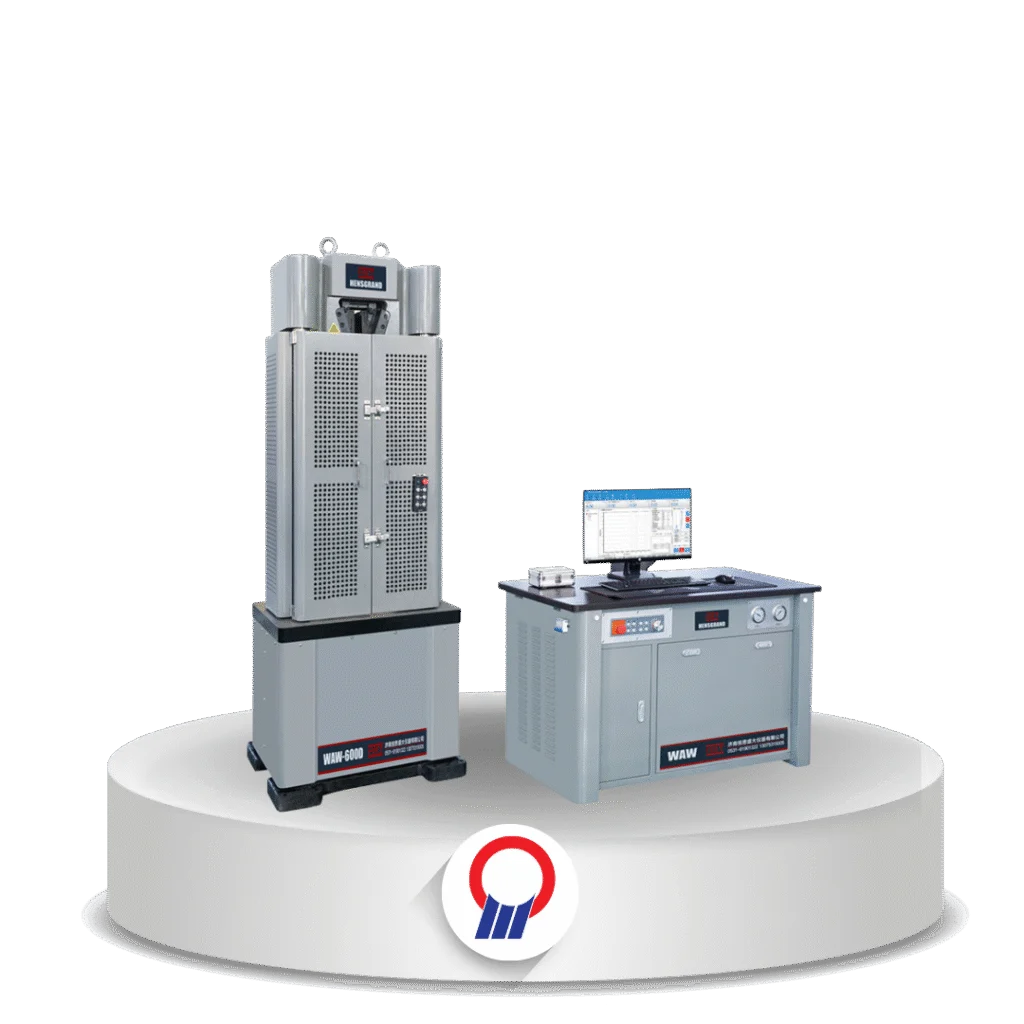

WAW-300D 300kN 30Ton Metal Material Hydraulic Universal Testing Machine
HST

WAW-300D 300kN 30Ton Metal Material Hydraulic Universal Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Kapasitas 300 kN (30 ton), empat kolom dua sekrup.

Fitur Utama

  • Kapasitas 300 kN, akurasi beban ≤ ±0,5%
  • Struktur 4 kolom 2 sekrup; resolusi perpindahan 0,0025 mm
  • Langkah piston 250 mm; kecepatan 0–100 mm/menit
  • Ruang tarik 780 mm dan ruang tekan 550 mm (dapat dikustomisasi)
  • Klem hidrolik; bulat Φ10–Φ32 mm (Φ4–Φ10 opsional), pipih 0–15 mm
  • Catu daya 3 fase AC 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model (spec table) HST WAW-300E (page title: WAW-300D)
Structure 4 columns and 2 screws
Control Way Constant stress, uniform deformation, constant displacement three closed-loop control and program control
Max. Load 300 kN
Load Accuracy ≤ ±0.5%
Load Range 1% – 100% FS
Load Resolution 1/500000
Deformation Measurement Range 1% – 100% FS
Deformation Accuracy ≤ ±0.5%
Displacement Resolution 0.0025 mm
Displacement Error ≤ ±0.5%
Max. Piston Stroke 250 mm
Max. Piston Moving Speed 0-100 mm/min, stepless speed adjustment
Crosshead Lifting Speed 200 mm/min
Max. Tension Test Space 780 mm (can be customized)
Max. Compression Test Space 550 mm (can be customized)
Column Clearance 485 mm
Clamping Method Hydraulic clamp
Round Specimen Clamping Range Φ10-Φ20, Φ20-Φ32 mm (Φ4-Φ10 optional)
Flat Specimen Clamping Range 0-15 mm (15-30 optional)
Flat Specimen Clamping Width 80 mm
Compression Plate Size Φ160 mm
Bending Roller Distance 450 mm
Width of Bending Rollers 120 mm
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
