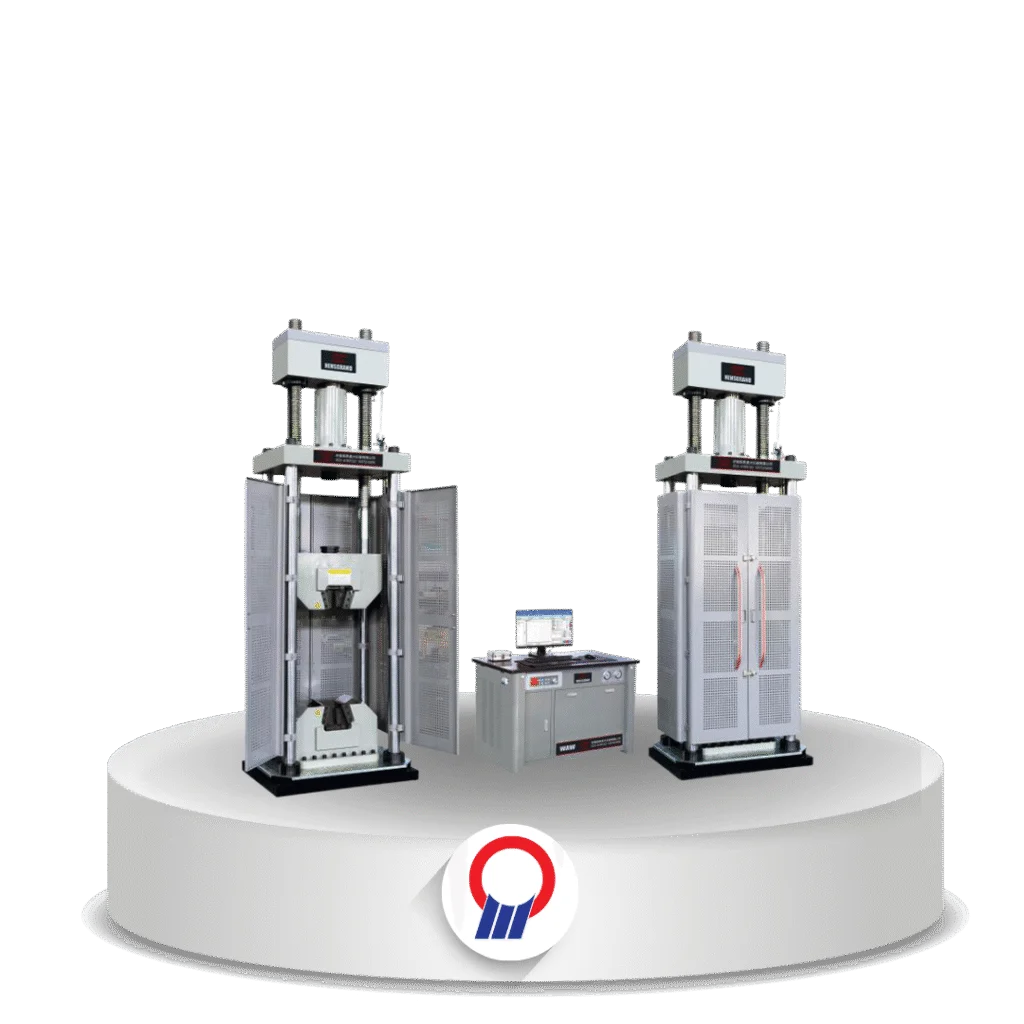

WAW-3000A/4000A/5000A Microcomputer Control Strain Stress Controlled Hydraulic Universal Testing Machine
HST

WAW-3000A/4000A/5000A Microcomputer Control Strain Stress Controlled Hydraulic Universal Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Seri WAW-A kapasitas 3.000, 4.000, dan 5.000 kN dengan kendali tegangan/regangan mikrokomputer.

Fitur Utama

  • Tiga model: WAW-3000A, WAW-4000A, dan WAW-5000A
  • Kelas akurasi 1; rentang gaya 2–100% F·S
  • Kontrol tiga loop tertutup tegangan, deformasi, dan perpindahan
  • Langkah 250 mm (3000A) dan 300 mm (4000A/5000A)
  • Ruang tarik maksimum 800 mm (3000A) dan 1.000 mm (4000A/5000A)
  • Jarak antar kolom 600 mm (3000A) dan 800 mm (4000A/5000A)
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST WAW-3000A, WAW-4000A, WAW-5000A
Max. Load 3000, 4000, 5000 kN
Control Way Constant stress, uniform deformation, constant displacement three closed loop control and program control
Load Accuracy Class 1
Load Range 2% ~ 100% F·S
Load Resolution Capacity/300,000 (fully auto scaling of single measurement)
Deformation Measurement Range 2% ~ 100% FS
Stroke (mm) 3000A: 250
4000A, 5000A: 300
Test Speed 0-80 mm/min
Max. Tension Test Space (mm) 3000A: 800
4000A, 5000A: 1000
Nominal Max. Specimen Diameter (mm) Φ20~Φ50, Φ50~Φ80, Φ80~Φ110
Nominal Max. Specimen Thickness (mm) 5~50, 50~100
Column Effective Spacing (mm) 3000A: 600
4000A, 5000A: 800
Standards Not listed on the page (application text: BS, EN, ISO, ASTM, JIS methods)
