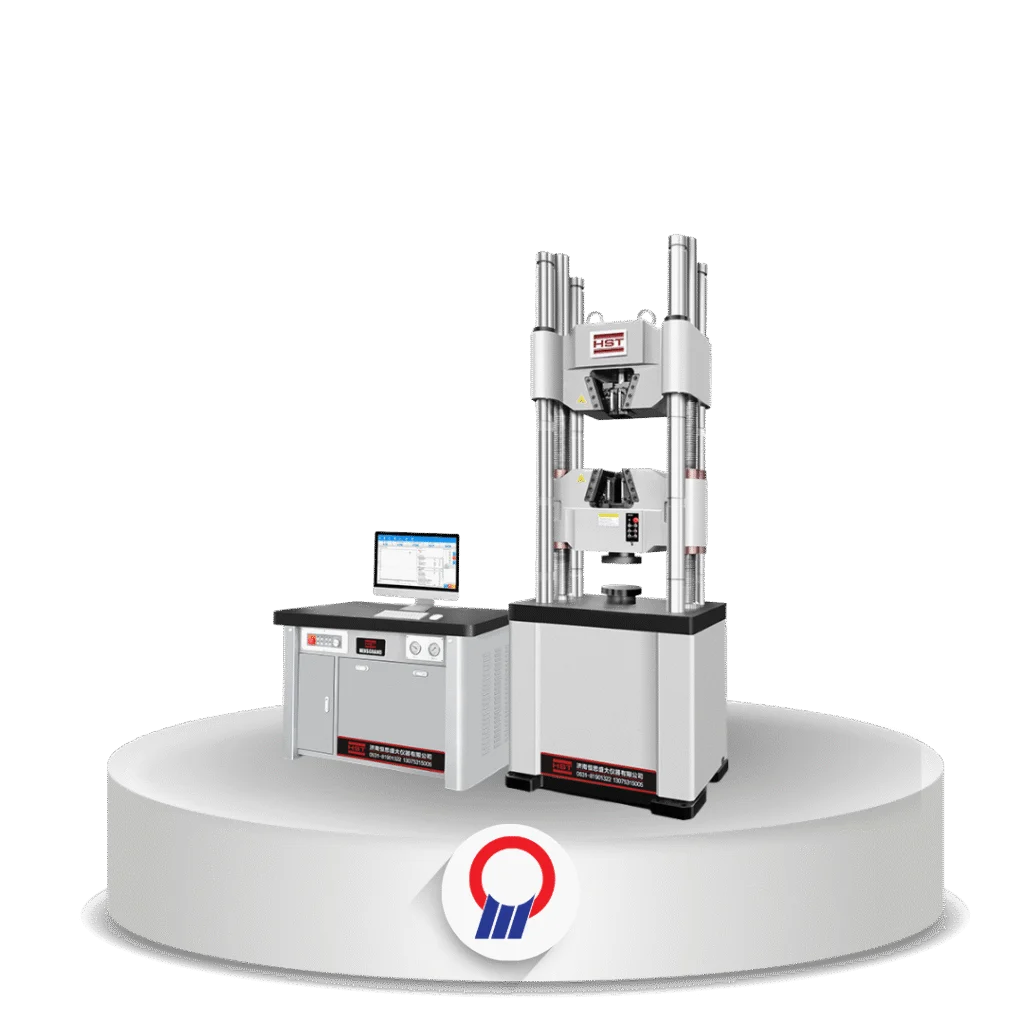

WAW-2000E 2000kN 200Ton Computer Control Electro-hydraulic Servo Universal Testing Machine
HST

WAW-2000E 2000kN 200Ton Computer Control Electro-hydraulic Servo Universal Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Kapasitas 2.000 kN (200 ton), klem hidrolik otomatis.

Fitur Utama

  • Kapasitas 2.000 kN (200 ton), kelas akurasi 0,5
  • Ruang tarik 850 mm dan ruang tekan 850 mm; jarak antar kolom 800 mm
  • Langkah piston 250 mm
  • Klem hidrolik otomatis
  • Resolusi beban kapasitas/500.000; resolusi perpindahan 0,01 mm
  • Catu daya 3 fase AC 380 V
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model WAW-2000E
Max. Test Load 2000 kN
Load Accuracy Class 0.5
Measuring Range 0.2% – 100%
Displacement Resolution 0.01 mm
Load Resolution Capacity/500,000
Tensile Space 850 mm
Compression Space 850 mm
Distance Between Two Columns 800 mm
Piston Stroke 250 mm
Clamping Method Hydraulic automatic clamp
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
