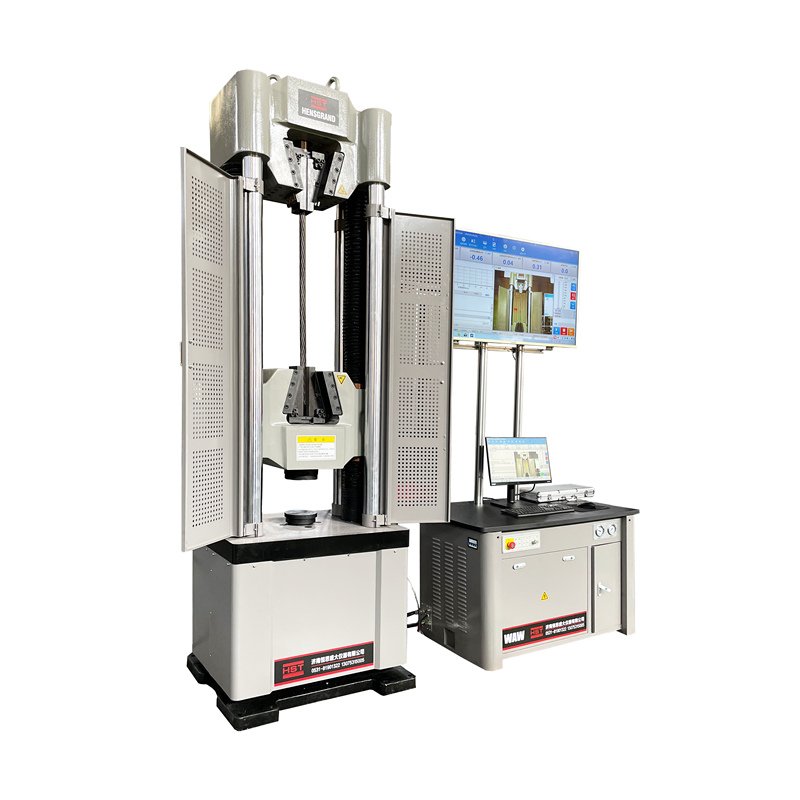

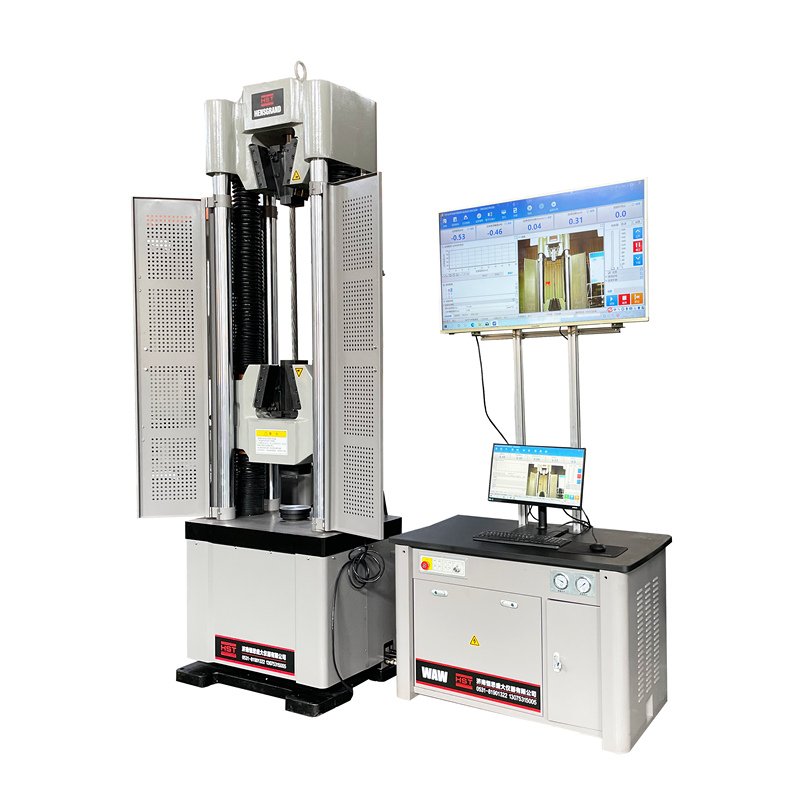

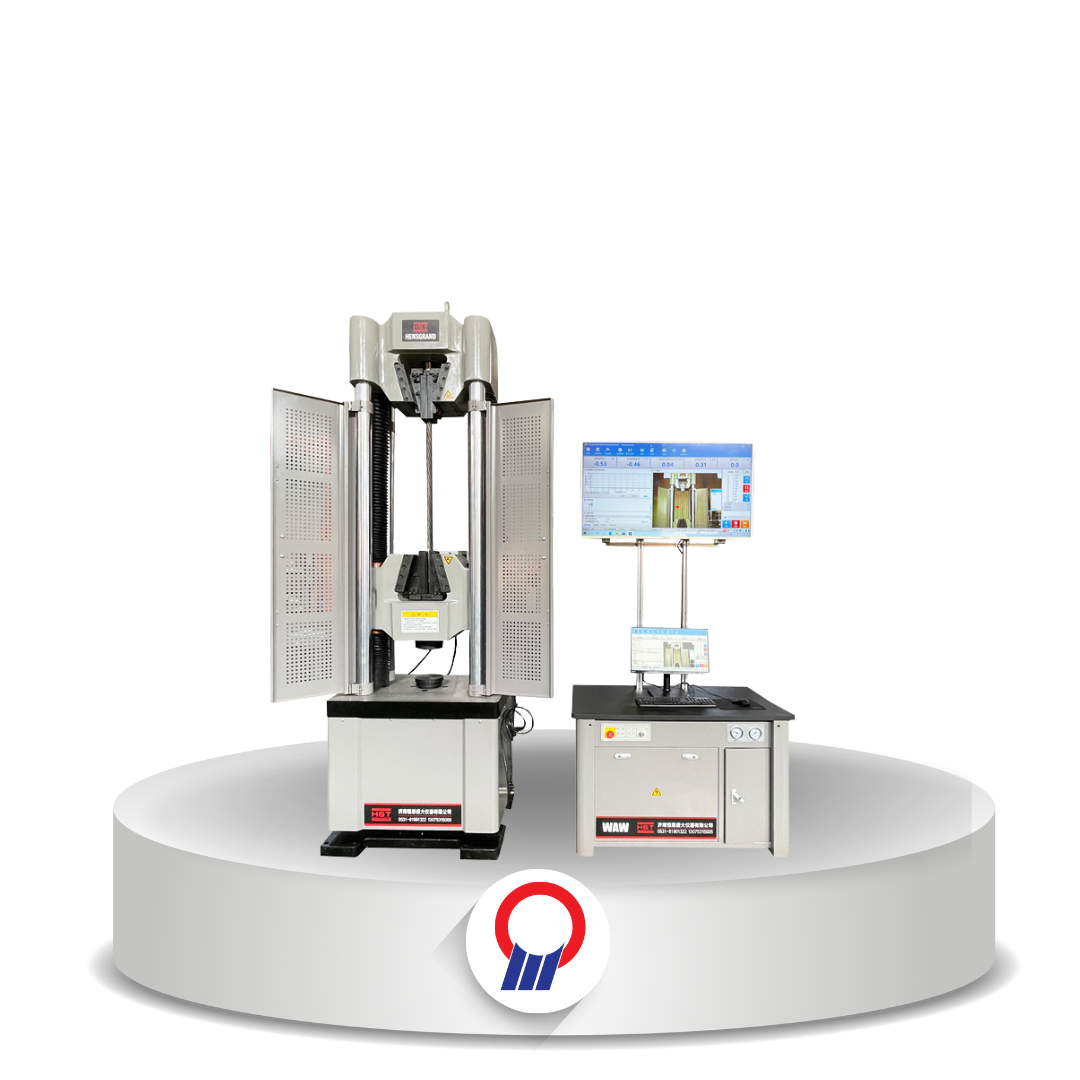

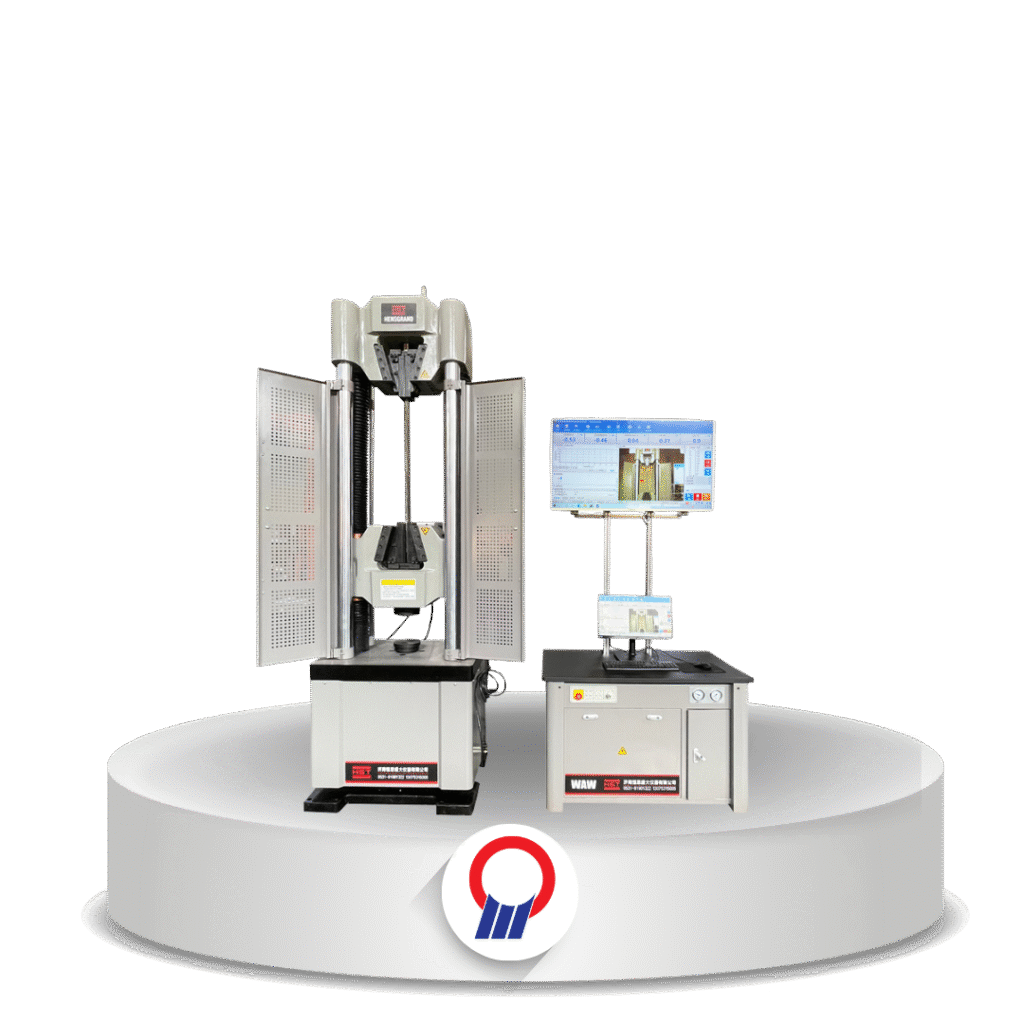

WAW-1200E 1200KN/ 120TON Computer Control Universal material testing machine
HST

WAW-1200E 1200KN/ 120TON Computer Control Universal material testing machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Kapasitas 1.200 kN (120 ton), struktur enam kolom (empat kolom dua sekrup bola).

Fitur Utama

  • Kapasitas 1.200 kN, akurasi beban ≤ ±0,5%
  • Struktur enam kolom: empat kolom dan dua sekrup bola
  • Langkah piston 250 mm
  • Ruang tarik maksimum 930 mm dan ruang tekan 640 mm
  • Klem hidrolik; spesimen bulat Φ13–Φ26 dan Φ26–Φ45 mm
  • Standar ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model HST WAW-1200E
Structure 6 column (four columns two ball screws)
Max. Load 1200 kN
Load Accuracy ≤ ±0.5%
Load Range 1% ~ 100% FS
Displacement Resolution 0.01 mm
Max. Tension Test Space 930 mm
Max. Compression Test Space 640 mm
Column Effective Spacing 610 mm
Max. Piston Stroke 250 mm
Clamping Method Hydraulic clamping
Round Specimen Clamping Range Φ13-Φ26, Φ26-Φ45 mm
Flat Specimen Clamping Range 0-20 mm
Standards ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, ASTM E83, ISO 9513, BS 3846, EN 10002-4
