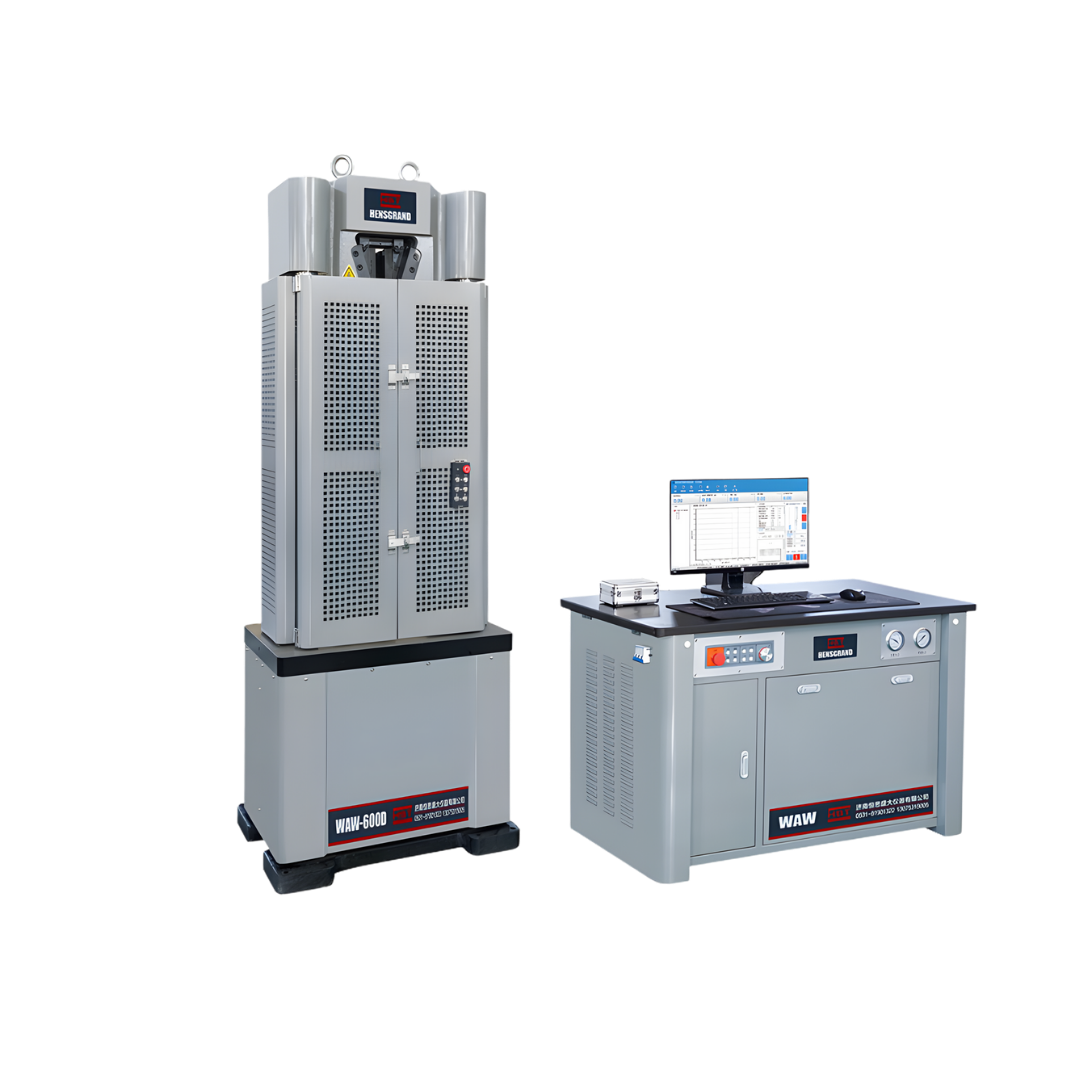

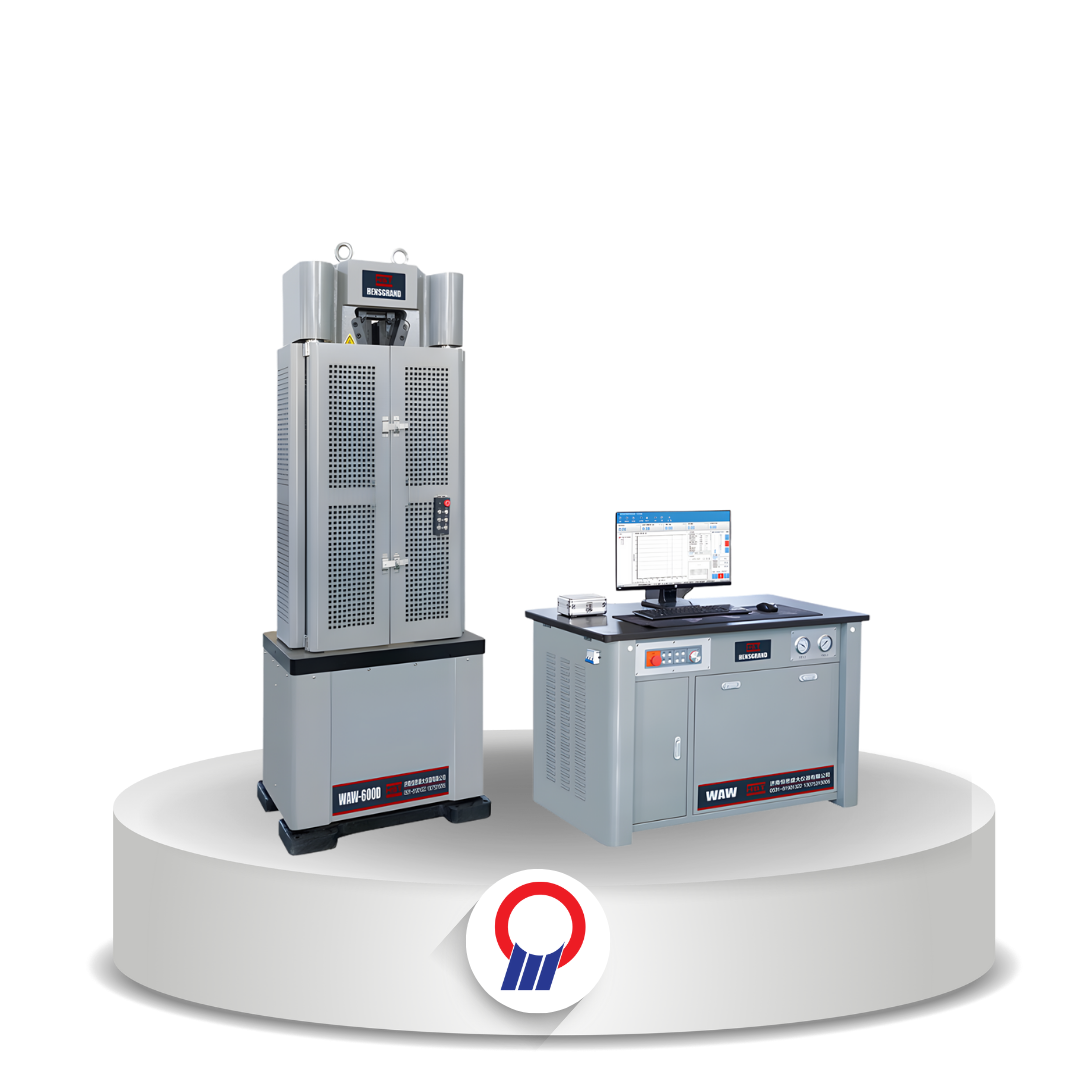

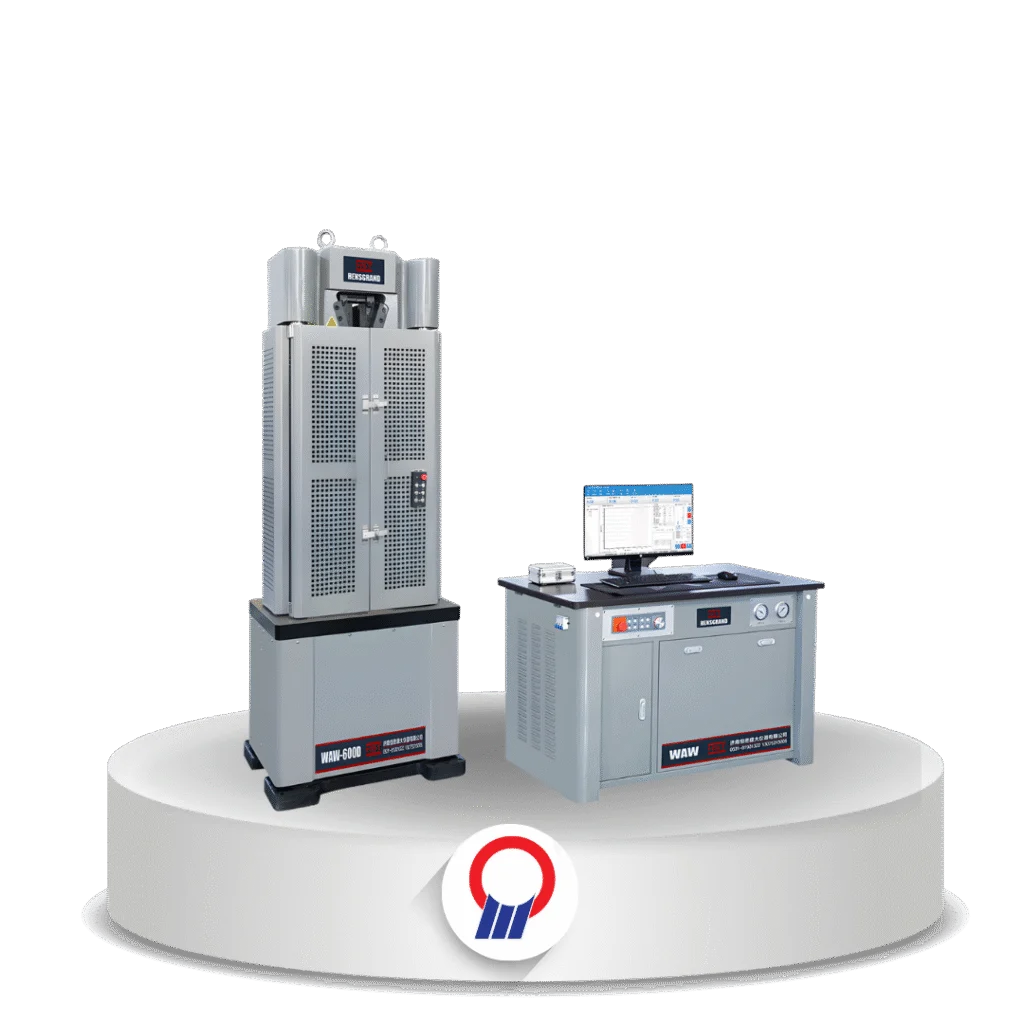

WAW-100D 100kN 10Ton Computer Control Electro-hydraulic Servo Universal Testing Machine
HST

WAW-100D 100kN 10Ton Computer Control Electro-hydraulic Servo Universal Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Kapasitas 100 kN (10 ton), empat kolom dua sekrup.

Fitur Utama

  • Kapasitas 100 kN, akurasi beban ≤ ±0,5%
  • Struktur 4 kolom 2 sekrup; resolusi beban 1/400.000
  • Langkah piston 250 mm; kecepatan 0–90 mm/menit
  • Ruang tarik 750 mm dan ruang tekan 600 mm (dapat dikustomisasi)
  • Klem hidrolik; bulat Φ10–Φ32 mm (Φ4–Φ10 opsional), pipih 0–15 mm
  • Catu daya 3 fase AC 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model (spec table) HST WAW-100E (page title: WAW-100D)
Structure 4 columns and 2 screws
Control Way Constant stress, constant strain, constant displacement three-loop control and program control
Max. Load 100 kN
Load Accuracy ≤ ±0.5%
Load Range 2% – 100% FS
Load Resolution 1/400000
Deformation Measurement Range 1% – 100% FS
Deformation Accuracy ≤ ±1%
Displacement Resolution 0.01 mm
Displacement Error ≤ ±0.5%
Max. Piston Stroke 250 mm
Max. Piston Moving Speed 0-90 mm/min, stepless adjustment
Crosshead Lifting Speed 200 mm/min
Max. Tension Test Space 750 mm (customizable)
Max. Compression Test Space 600 mm (customizable)
Column Clearance 420 mm
Clamping Method Hydraulic clamp
Round Specimen Clamping Range Φ10-Φ20, Φ20-Φ32 mm (Φ4-Φ10 optional)
Flat Specimen Clamping Range 0-15 mm (15-30 optional)
Flat Specimen Clamping Width 80 mm
Compression Plate Size Φ160 mm
Bending Roller Distance 450 mm
Width of Bending Rollers 120 mm
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
