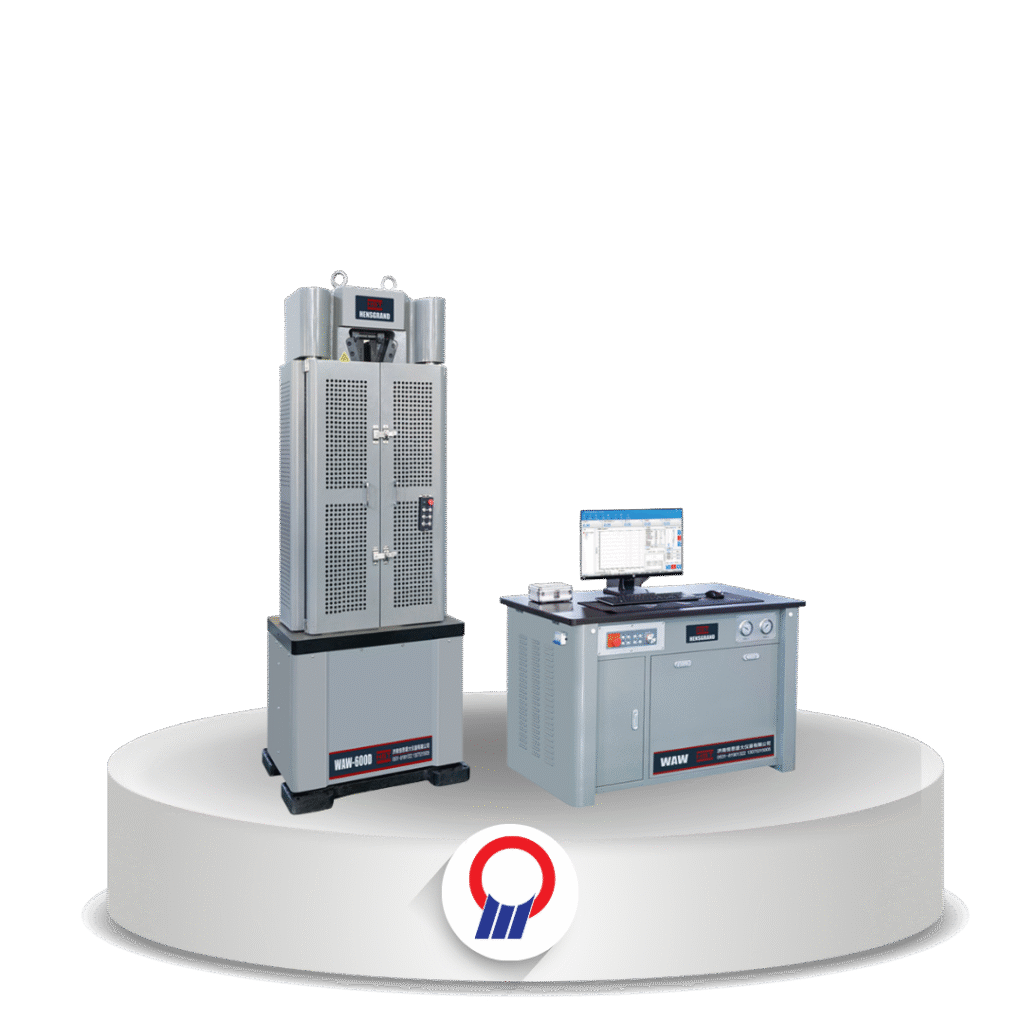

WAW-1000E 1000kN Computer Control Electro-hydraulic Servo Universal Testing Machine
HST

WAW-1000E 1000kN Computer Control Electro-hydraulic Servo Universal Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Kapasitas 1.000 kN dengan kendali tiga loop tertutup.

Fitur Utama

  • Kapasitas 1.000 kN; akurasi beban ≤ ±0,5%
  • Struktur 4 kolom 2 sekrup; kendali tiga loop tertutup tegangan, deformasi, perpindahan
  • Langkah piston 250 mm; ruang tarik 980 mm dan tekan 700 mm
  • Klem hidrolik; spesimen bulat Φ13–Φ26 dan Φ26–Φ45 mm (6–13 mm opsional)
  • Pelat tekan Φ160 mm; roller lentur 450 mm
  • Catu daya 3 fase AC 380 V
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model HST WAW-1000E
Structure 4 columns and 2 screws
Control Way Constant stress, uniform deformation, constant displacement three closed loop control and program control
Max. Load 1000 kN
Load Accuracy ≤ ±0.5%
Load Range 0.2% – 100% FS
Load Resolution 1/500000
Deformation Measurement Range 2% ~ 100% FS
Deformation Accuracy ≤ ±1%
Displacement Resolution 0.01 mm
Displacement Error ≤ ±0.5%
Max. Piston Stroke 250 mm
Max. Piston Moving Speed 0-90 mm/min, stepless speed adjusting
Crosshead Lifting Speed 200 mm/min
Max. Tension Test Space 980 mm
Max. Compression Test Space 700 (unit not stated)
Column Effective Spacing 650 mm
Clamping Method Hydraulic clamp
Round Specimen Clamping Range Φ13-Φ26, Φ26-Φ45 mm (6-13 optional)
Flat Specimen Clamping Range 0-20 mm (20-40 optional)
Flat Specimen Clamping Width 100 mm
Compression Plate Size Φ160 mm
Bending Roller Distance 450 mm
Width of Bending Rollers 120 mm
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 6892, BS 4449, ASTM C39, ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN standards
