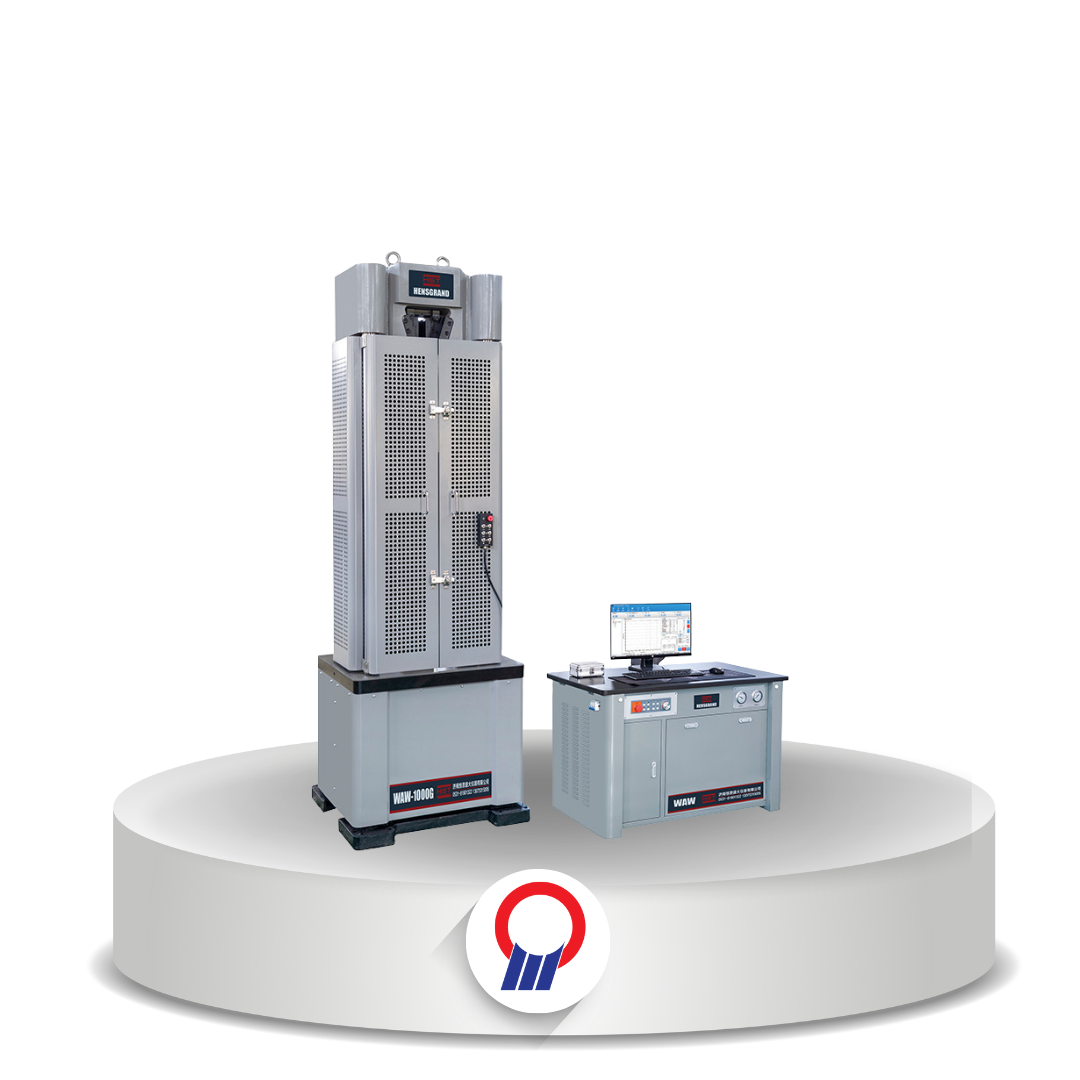

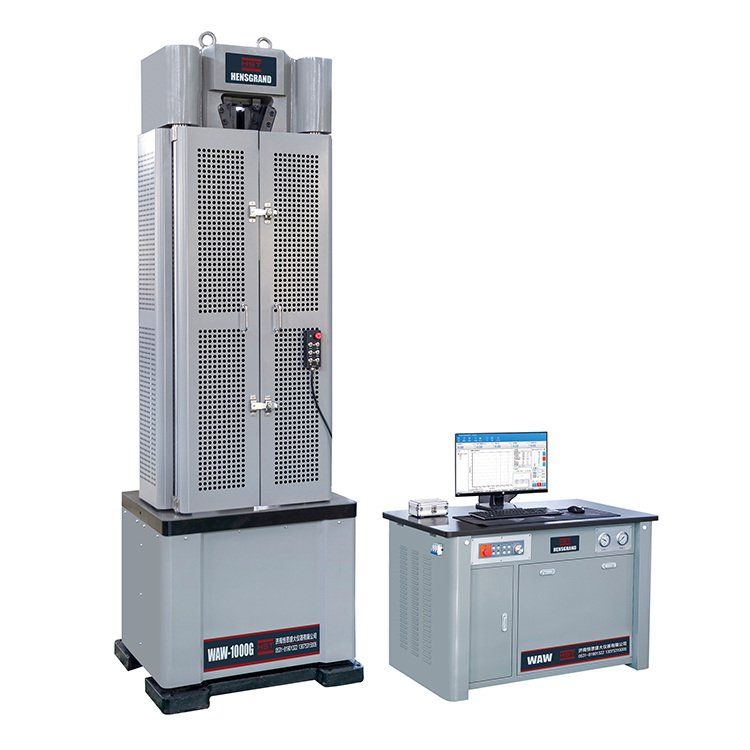

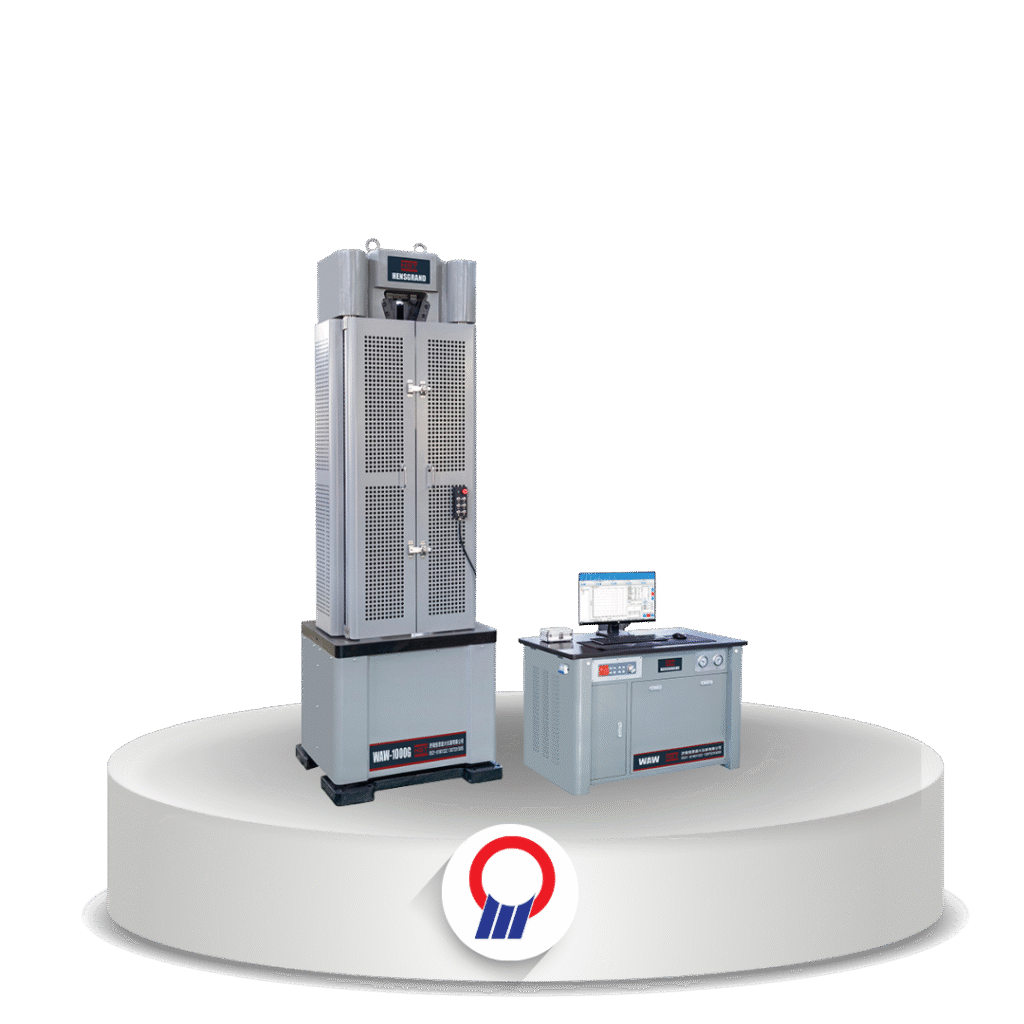

WAW-1000E 1000KN 100Ton Computer Control Steel Rebar Hydraulic Universal Testing Machine
HST

WAW-1000E 1000KN 100Ton Computer Control Steel Rebar Hydraulic Universal Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Kapasitas 1.000 kN (100 ton) untuk baja tulangan, struktur enam kolom.

Fitur Utama

  • Kapasitas 1.000 kN, akurasi beban ≤ ±0,5%
  • Struktur enam kolom
  • Langkah piston 250 mm
  • Ruang tarik 950 mm dan ruang tekan 700 mm
  • Klem hidrolik: bulat Φ6–Φ45 mm, pipih 0–40 mm (lebar 100 x 100 mm)
  • Catu daya 3 fase AC 380 V
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Model HST WAW-1000E
Structure 6 column
Max. Load 1000 kN
Load Accuracy ≤ ±0.5%
Load Range 0.4% ~ 100%
Displacement Resolution 0.01 mm
Max. Tension Test Space 950 mm
Max. Compression Test Space 700 mm
Column Effective Spacing 560 mm
Max. Piston Stroke 250 mm
Clamping Method Hydraulic clamping
Round Specimen Clamping Range Φ6-Φ13, Φ13-Φ26, Φ26-Φ45 mm
Flat Specimen Clamping Range 0-20, 20-40 mm
Flat Specimen Clamping Width 100 x 100 mm
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, ASTM E83, ISO 9513, BS 3846, EN 10002-4
