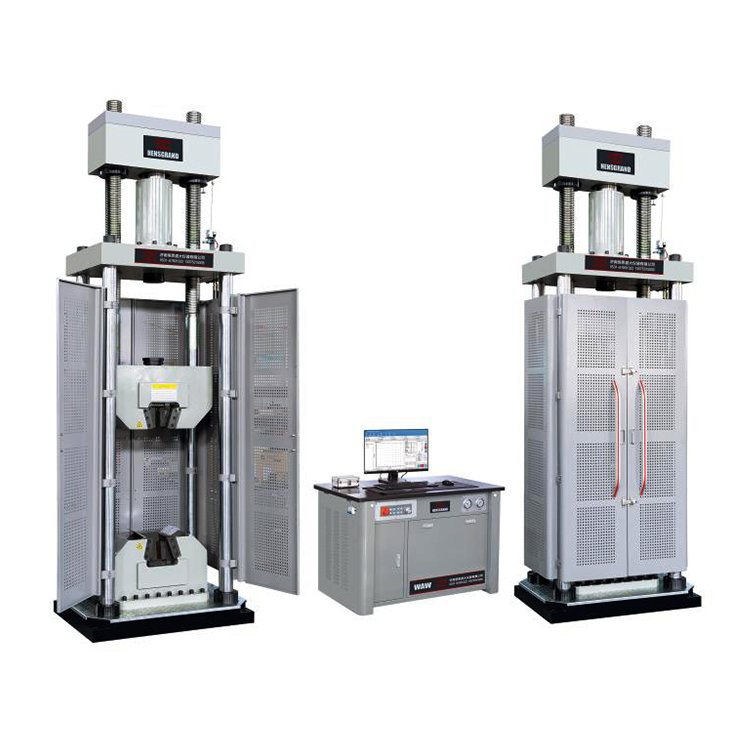

WAW-1000A/1500A/2000A Top Cylinder Servo-hydraulic Universal Testing System
HST

WAW-1000A/1500A/2000A Top Cylinder Servo-hydraulic Universal Testing System

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Sistem uji hidrolik servo silinder atas seri WAW-A, kapasitas 1.000, 1.500, dan 2.000 kN.

Fitur Utama

  • Tiga model: WAW-1000A, WAW-1500A, dan WAW-2000A
  • Kontrol tiga loop tertutup tegangan konstan, deformasi seragam, dan perpindahan konstan
  • Kelas akurasi 1, rentang gaya 2–100% F·S
  • Langkah 250 mm; kecepatan uji 0–80 mm/menit
  • Ruang tarik maksimum 1.400 / 1.400 / 1.000 mm
  • Standar ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WAW-1000A, WAW-1500A, WAW-2000A
Max. Load 1000, 1500, 2000 kN
Control Way Constant stress, uniform deformation, constant displacement three-closed-loop control and program control
Load Accuracy Class 1
Load Range 2% ~ 100% F·S
Load Resolution Capacity/300,000 (fully auto scaling of single measurement)
Deformation Measurement Range 2% ~ 100% FS
Stroke 250 mm
Test Speed 0-80 mm/min
Max. Tension Test Space (mm) 1000A, 1500A: 1400
2000A: 1000
Compression Space (unit not stated) 1000A, 1500A: 1200
2000A: 800
Nominal Max. Specimen Diameter (mm) 1000A, 1500A: Φ13-26, Φ26-45, Φ45-60
2000A: Φ20-Φ50, Φ50-Φ80, Φ80-Φ110
Standards ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221
