Water Vapor Permeability Tester W306
Saicheng

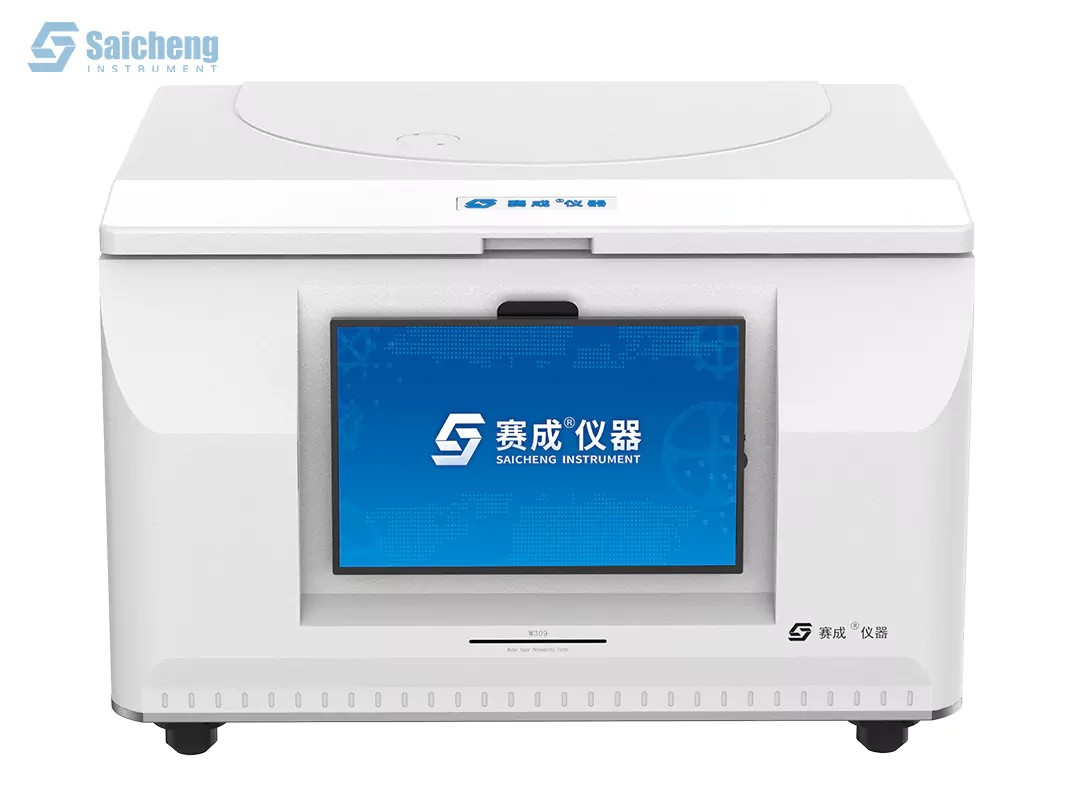

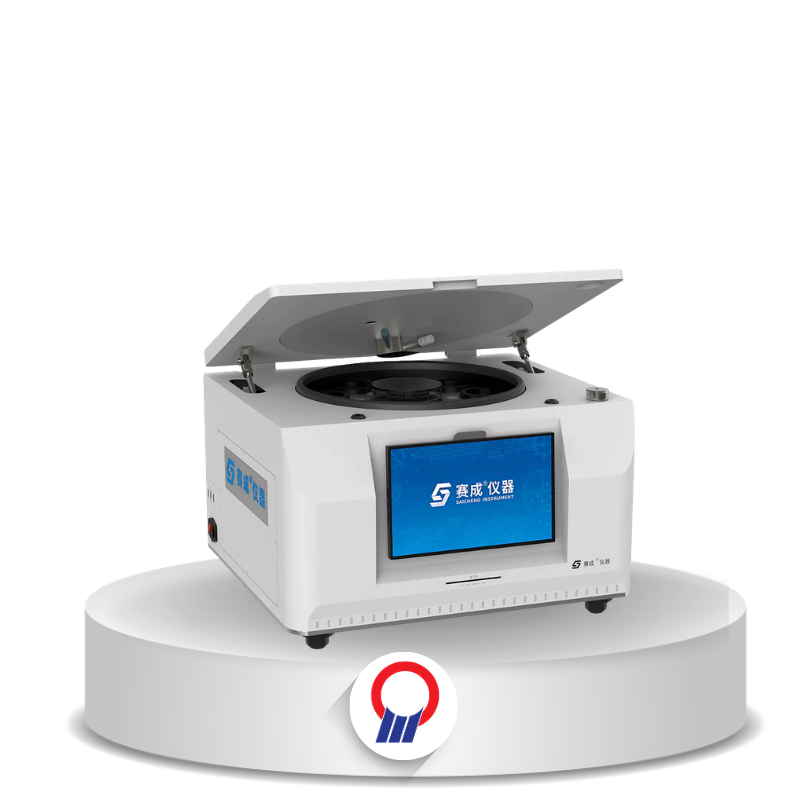

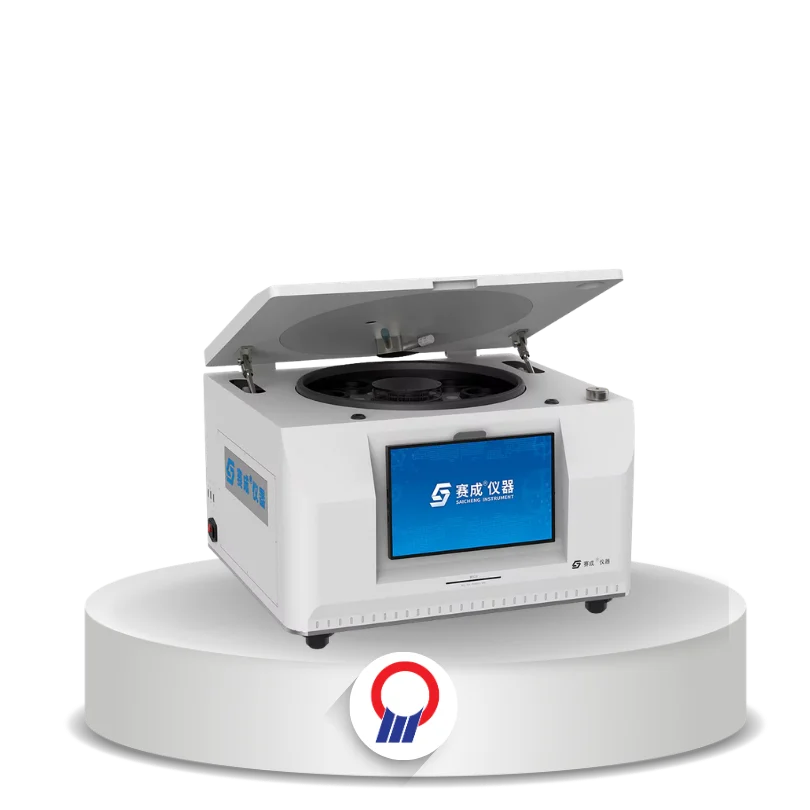

Water Vapor Permeability Tester W306

Overview

Alat uji laju transmisi uap air (WVTR) metode gravimetri (cawan, desikan dan air) untuk film plastik, film komposit, lembaran, dan bahan lainnya, sesuai ASTM E96.

Fitur Utama

  • 6 spesimen diuji independen dalam satu kali operasi
  • Rentang uji film 0.01 ~ 10,000 g/m²·24h, resolusi 0,0001 g
  • Sistem penimbangan presisi tinggi dan penimbangan berkala dengan nol otomatis
  • Kontrol suhu dan kelembapan otomatis rentang lebar, dengan dehumidifikasi sirkulasi
  • Kecepatan udara dapat diatur untuk mencegah kondensasi pada cawan uji
  • Kalibrasi mandiri otomatis; film referensi opsional untuk kalibrasi cepat
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification (W306)
Test Range 0.01 ~ 10,000 g/m²·24h (film test); 0.0003318 ~ 33.18 g/pkg·24h (container test)
Resolution 0.0001 g
Number of Specimens 1 ~ 6 (independent testing results)
Temperature Range 10°C ~ 55°C (standard)
Temperature Accuracy ±0.1°C
Humidity Range 10%RH ~ 90%RH
Humidity Accuracy ±1%RH
Air Velocity 0.5 ~ 2.5 m/s (customization is available)
Test Area 33.18 cm²
Sample Thickness ≤3 mm (customization is available)
Sample Size Φ72 mm
Port Size Φ6 mm PU tubing
Instrument Dimension 680 mm (W) x 580 mm (D) x 440 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 78 kg
Test Standards ASTM E96, ASTM D1653, ISO 2528, TAPPI T464, DIN 53122-1, JIS Z0208, GB/T 1037, GB/T 16928, YBB 00092003
