Inaproc

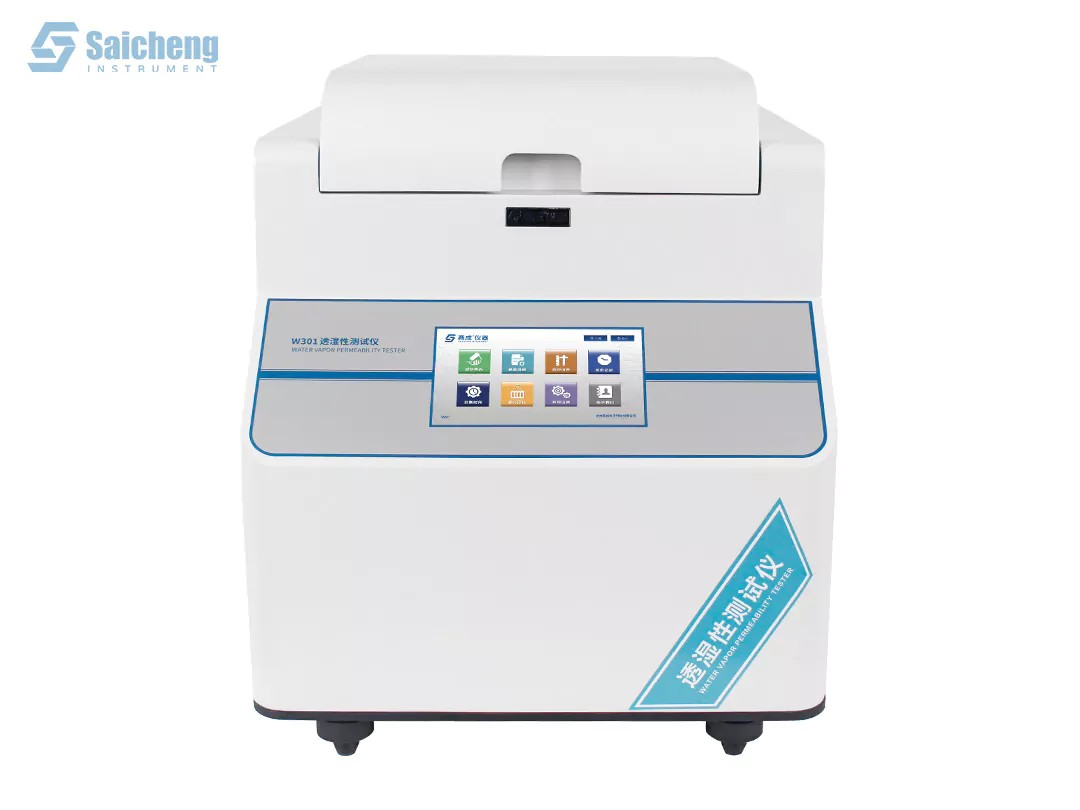

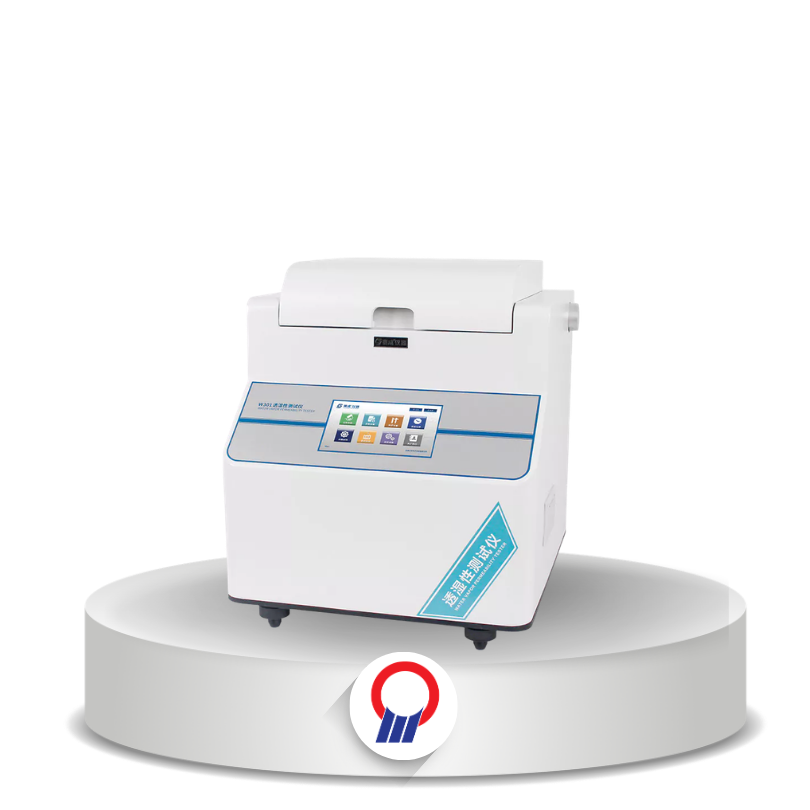

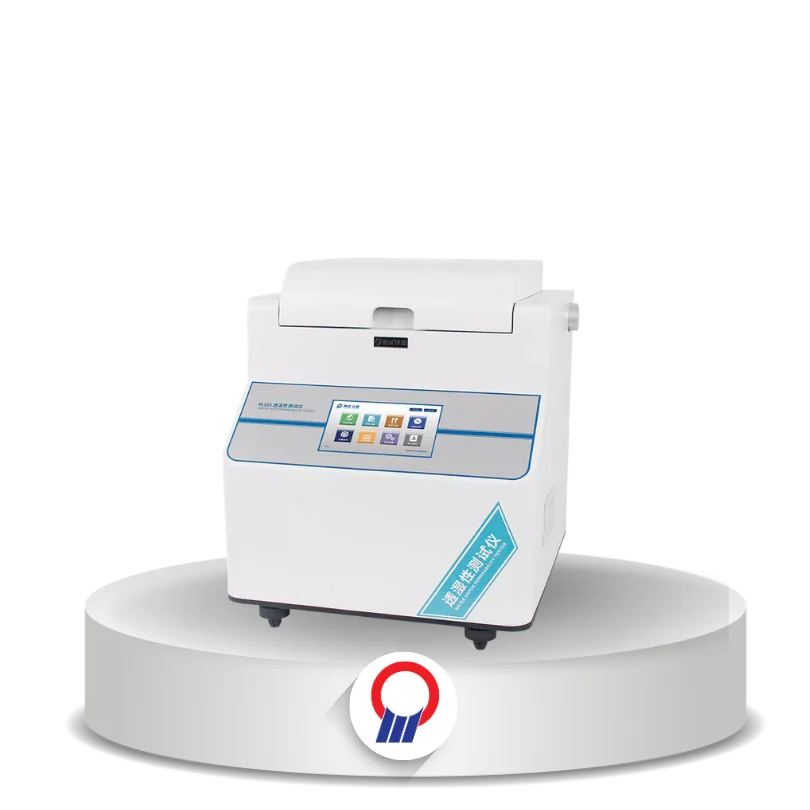

Water Vapor Permeability Tester W301
Saicheng

Water Vapor Permeability Tester W301

Overview

Alat uji laju transmisi uap air (WVTR) metode gravimetri satu spesimen untuk film plastik, film komposit, lembaran, dan bahan lainnya, sesuai ASTM E96.

Fitur Utama

  • Rentang uji film 0,1–10.000 g/m²·24h, resolusi 0,0001 g
  • Sistem penimbangan presisi tinggi dengan nol otomatis sebelum tiap pengukuran
  • Ruang uji melingkar untuk sebaran suhu dan kelembapan lebih merata
  • Dehumidifikasi sirkulasi dan kecepatan udara dapat diatur
  • Sistem kalibrasi mandiri otomatis
  • Layar sentuh warna 7 inci, printer mikro, dan antarmuka USB
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification (W301)
Test Range 0.1 ~ 10,000 g/m²·24h (film test); 0.0003318 ~ 33.18 g/pkg·24h (container test)
Resolution 0.0001 g
Number of Specimens 1
Temperature Range Ambient ~ 55°C (standard)
Temperature Accuracy ±0.1°C
Humidity Range 10%RH ~ 50%RH
Humidity Accuracy ±1%RH
Test Area 33.18 cm²
Sample Thickness ≤3 mm (customization available)
Sample Size Φ72 mm
Instrument Dimension 440 mm (W) x 560 mm (D) x 510 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 42 kg
Test Standards ASTM E96, ASTM D1653, ISO 2528, TAPPI T464, DIN 53122-1, JIS Z0208, GB/T 1037, GB/T 16928, YBB 00092003
Configuration
Standard Instrument, micro printer, professional software, network cable, test dishes, gas desiccant device, sample cutter, syringe
Optional Computer, reference film, desiccant container, 4A molecular sieve, container testing device
