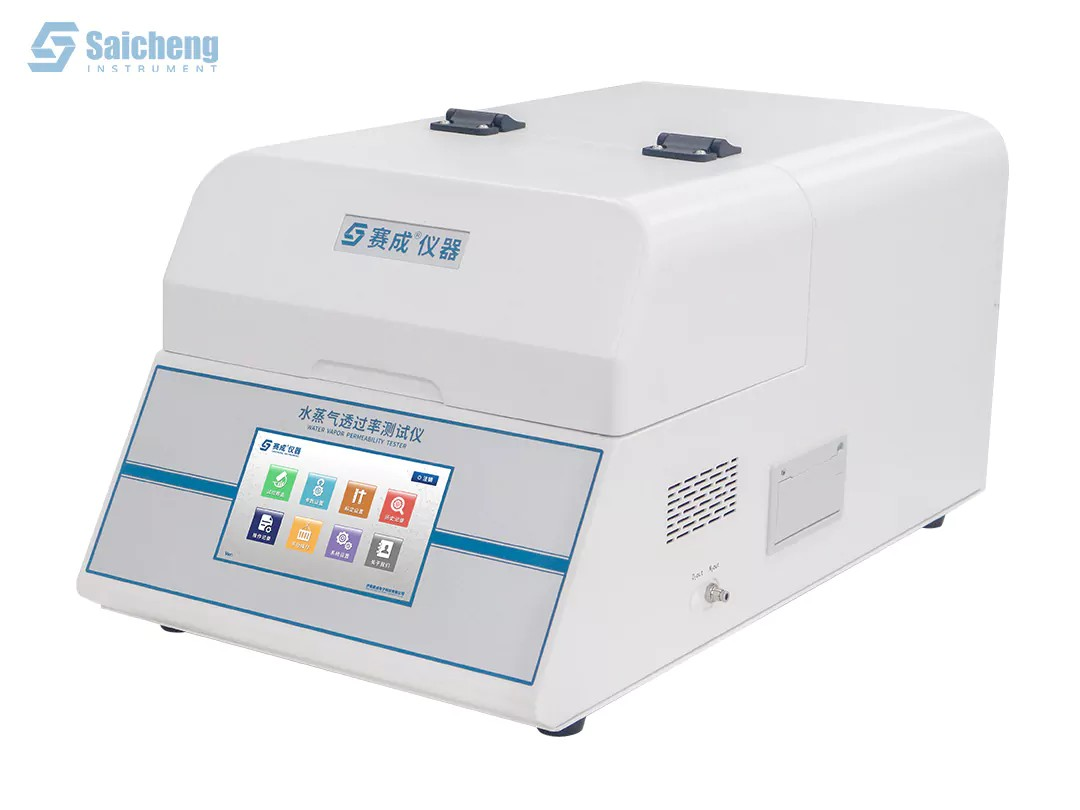

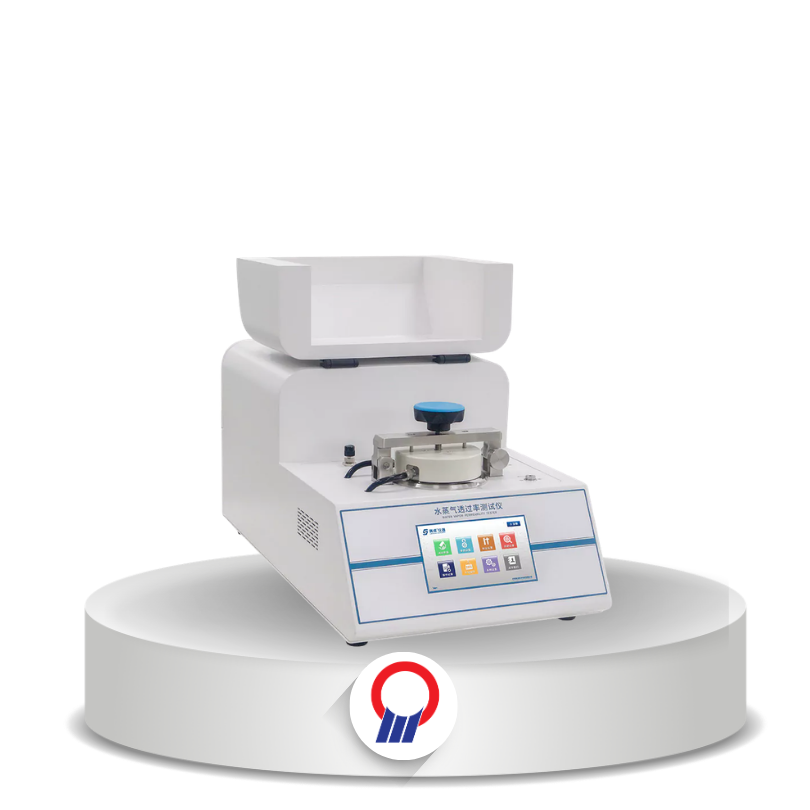

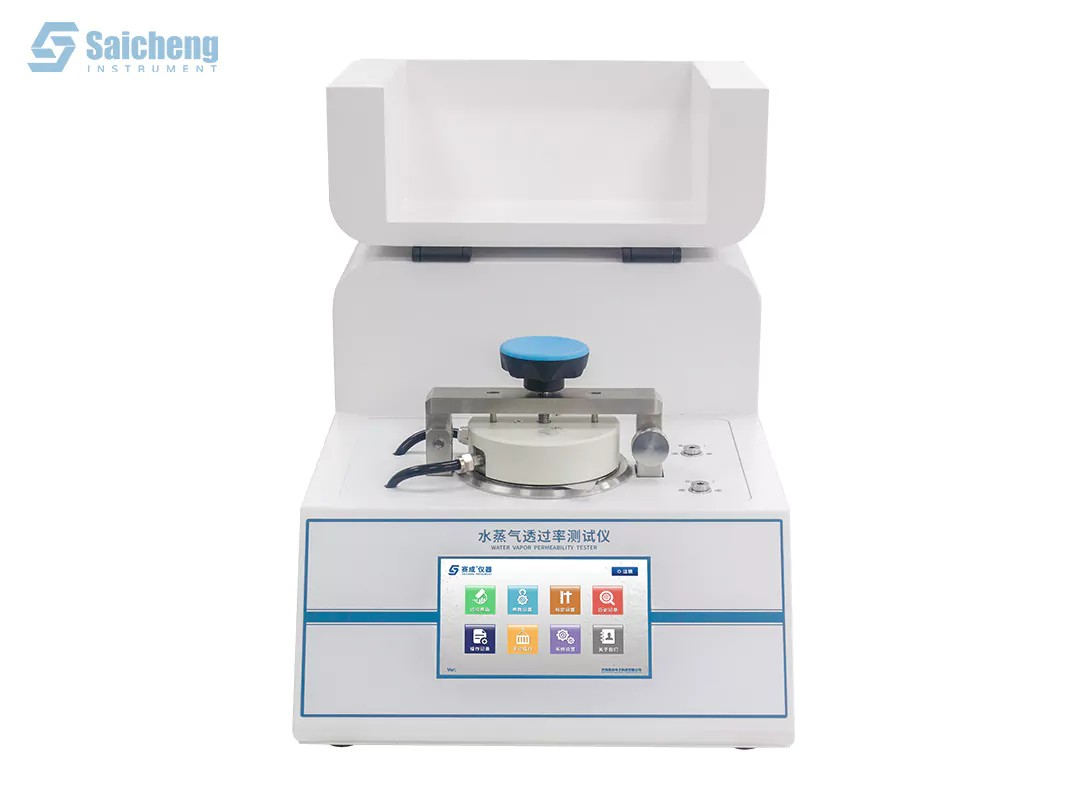

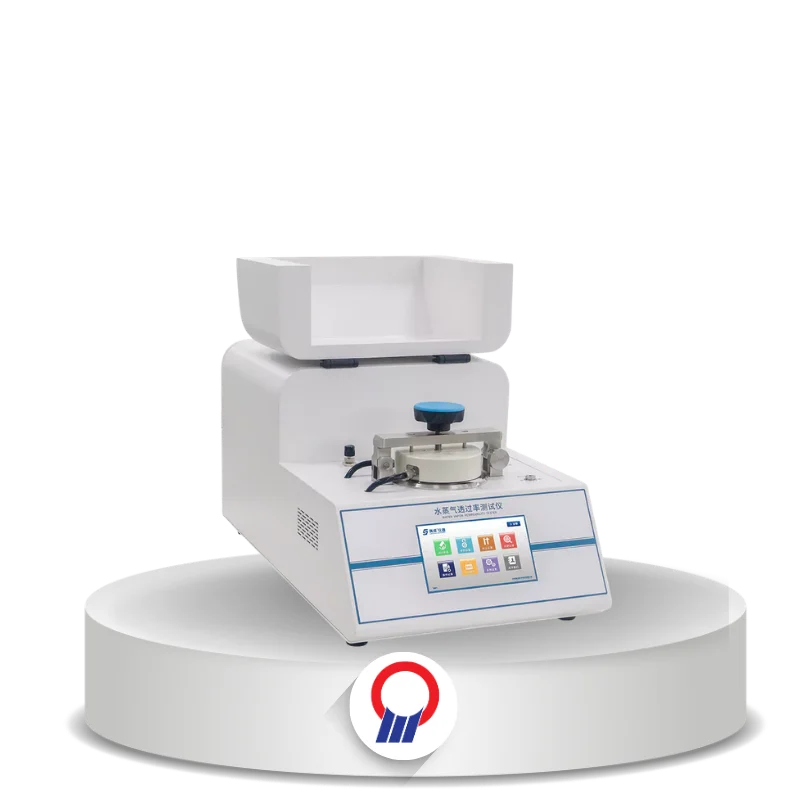

Water Vapor Permeability Tester W201
Saicheng

Water Vapor Permeability Tester W201

Overview

Alat uji laju transmisi uap air (WVTR) metode sensor inframerah untuk bahan penghalang tingkat menengah dan tinggi. Memenuhi ISO 15106-2 dan ASTM F1249.

Fitur Utama

  • Rentang uji film 0,01–50 g/m²·24h (standar), resolusi 0,0001
  • Suhu 10–60°C ±0,1°C dan kelembapan 35–90%RH serta 100%RH (±1%RH)
  • Kontrol kelembapan basah-kering aliran ganda dengan tiga tahap
  • Sensor presisi tinggi untuk akurasi dan repeatability
  • Layar sentuh warna 7 inci, printer mikro, dan antarmuka USB
  • Opsi uji kemasan (container) dan film referensi
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification
Test Range, Film 0.01 ~ 50 g/m²·24h (standard); 0.02 ~ 100 g/m²·24h (optional)
Test Range, Container 0.00005 ~ 0.25 g/(pkg·24h) (standard); 0.0001 ~ 0.5 g/(pkg·24h) (optional)
Resolution 0.0001 g/m²·24h
Number of Specimens 1
Temperature Range 10°C ~ 60°C (standard)
Temperature Accuracy ±0.1°C
Humidity Range 35%RH ~ 90%RH, 100%RH
Humidity Accuracy ±1%RH
Test Area 50 cm²
Sample Thickness ≤3 mm (customization available)
Carrier Gas 99.999% high-purity nitrogen (outside of supply scope)
Carrier Gas Pressure ≥0.20 MPa
Port Size 1/8-inch metal tubing
Instrument Dimension 370 mm (W) x 700 mm (D) x 300 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 36 kg
Test Standards ASTM F1249, ISO 15106-2, GB/T 26253, JIS K7129, YBB 00092003-2015
