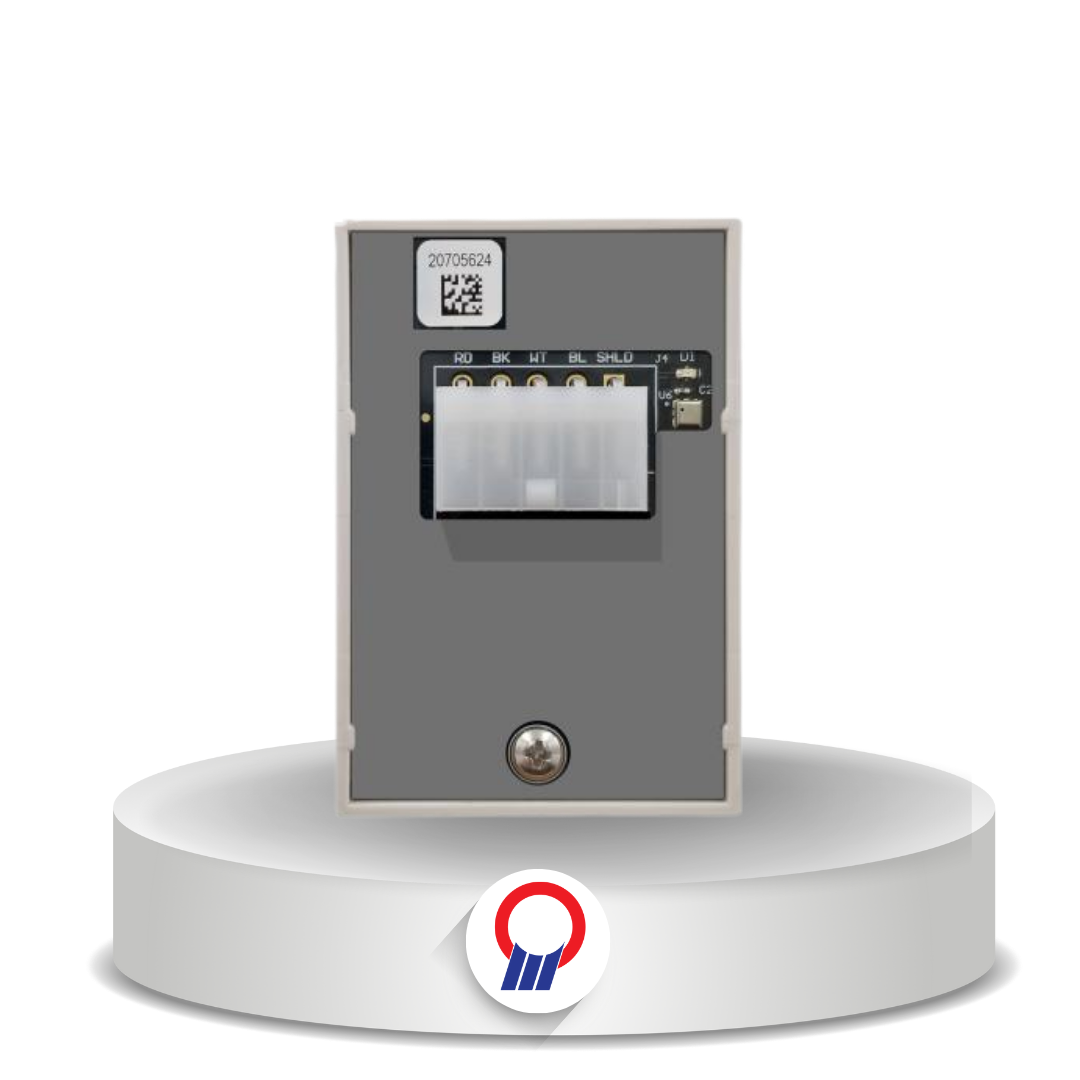

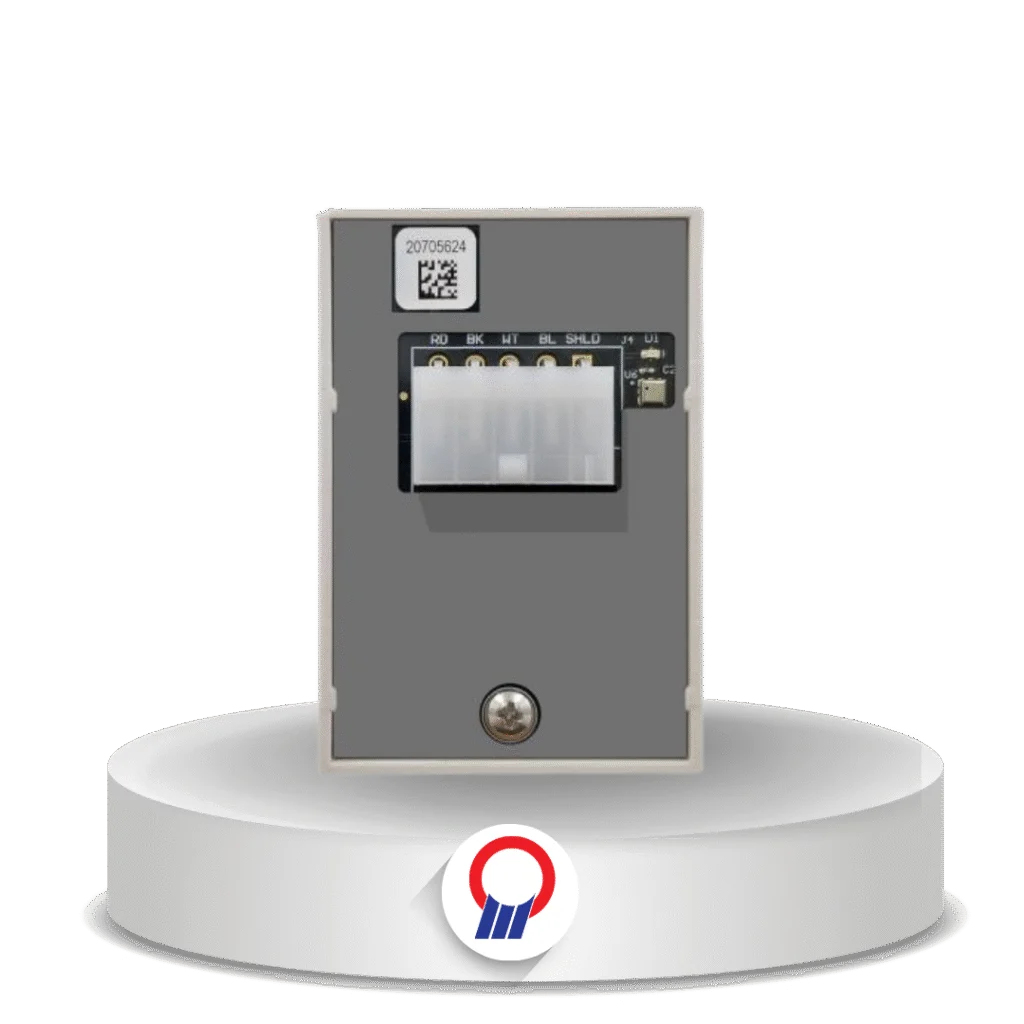

Water Level Sensor Module for RX3000
HOBO

Water Level Sensor Module for RX3000

Overview

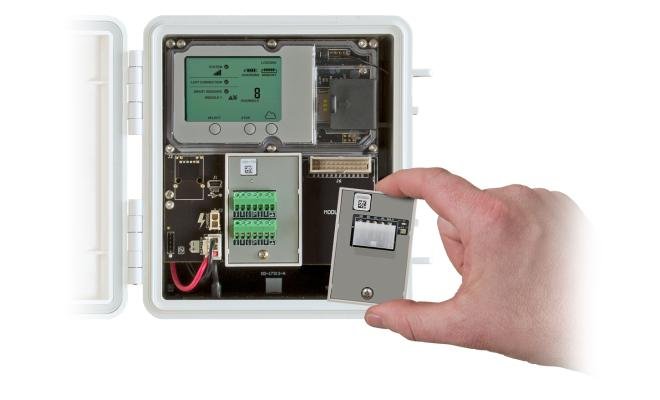

Modul untuk memantau level air, tekanan, dan suhu serta tekanan barometrik dengan HOBO RX3000 Remote Monitoring Station. Dikonfigurasi lewat HOBOlink.

Fitur Utama

  • Sensor tekanan barometrik terpadu
  • Plug-and-play untuk pemantauan level air dan aliran jarak jauh
  • Mendukung level air, suhu air, tekanan diferensial, dan aliran air
  • Dikonfigurasi lewat HOBOlink (software berbasis cloud)
  • Bekerja dengan sensor MX2001-0x-S atau MX2001-0x-Ti-S lewat kabel CABLE-RWLMOD-xxx
  • Akurasi sistem adalah jumlah akurasi barometrik dan akurasi sensor level air
Tanya via WhatsApp
Merk
HOBO
Kategori
Accessories

Detail Produk

Specification Value
Barometric Pressure
Operation Range 66 to 107 kPa; temperature calibrated -20° to 50°C
Accuracy ±0.2 kPa over full temperature range; max ±0.5% FS
Resolution <0.01 kPa
Response Time <1 second at stable temperature
Stability (Drift) <0.01 kPa per year
Water Level Sensor (MX2001-0x-S / -Ti-S)
Range 4 m (-04) 0-145 kPa; typical ±0.075% FS (0.3 cm), max ±0.15% FS (0.6 cm); resolution 0.14 cm
Range 9 m (-01) 0-207 kPa; typical ±0.05% FS (0.5 cm), max ±0.1% FS (1.0 cm); resolution 0.21 cm
Range 30 m (-02) 0-400 kPa; typical ±0.05% FS (1.5 cm), max ±0.1% FS (3.0 cm); resolution 0.41 cm
Range 76 m (-03) 0-850 kPa; typical ±0.05% FS (3.8 cm), max ±0.1% FS (7.6 cm); resolution 0.87 cm
Raw Pressure Accuracy ±0.3% FS maximum error
Sensor & Cable
Sensor Dimensions 2.54 cm diameter x 9.91 cm length
Cable CABLE-RWL-xxx: 0.47 cm diameter; 0.2 to 400 m length
Weight Stainless sensor approx. 106 g; titanium sensor approx. 80 g; cable 39 g per meter
