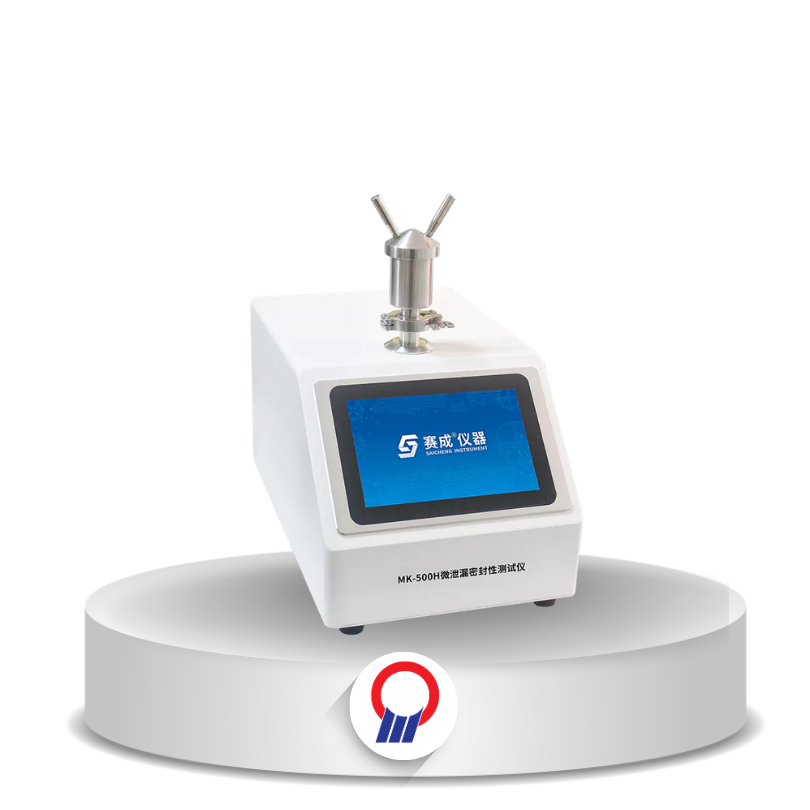

Vacuum Decay Leak Tester MK-500H
Saicheng

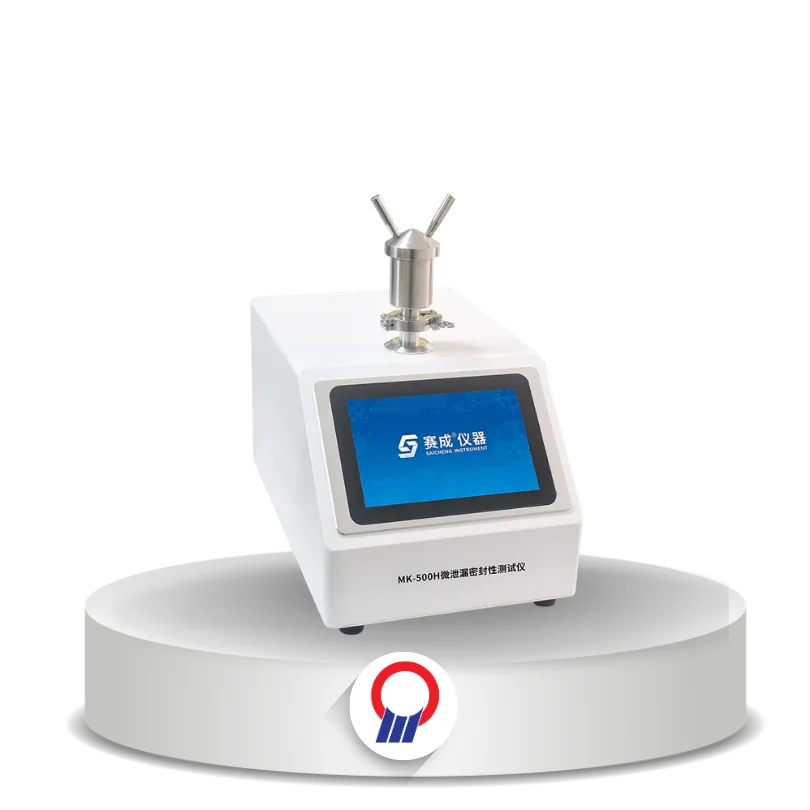

Vacuum Decay Leak Tester MK-500H

Overview

Alat uji kebocoran metode penurunan vakum non-destruktif MK-500H untuk ampul, vial, botol injeksi, botol injeksi bubuk liofilisasi, dan kemasan pra-isi, dengan antarmuka HMI.

Fitur Utama

  • Metode vacuum decay non-destruktif sesuai ASTM F2338-13 dan USP 1207
  • Teknologi dual-sensor dengan sensitivitas deteksi 1–2 µm
  • Waktu uji kurang dari 30 detik; kebocoran kecil dan besar dinilai otomatis
  • Pemantauan suhu dan kelembapan lingkungan
  • Pencetakan hasil otomatis, statistik, dan ekspor laporan Excel/PDF
  • Hak akses pengguna bertingkat dan jejak audit untuk GMP
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification
Application Ampoule, vial, injection bottle, freeze-dried powder bottle, pre-filled package
Test Method Vacuum decay method (non-destructive test)
Test Chamber Customization per samples
Vacuum Degree 0 ~ -100 kPa
Testing System Dual-sensor technology
Detection Sensitivity 1 ~ 2 µm in diameter
Test Time Less than 30 s
Equipment Operation HMI
Vacuum Source Vacuum pump
Environment Temperature 15°C ~ 30°C
Relative Humidity Up to 80%RH, no condensation
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension 320 mm (W) x 520 mm (D) x 350 mm (H)
Net Weight 20 kg
Test Standards ASTM F2338-13, USP 1207, YY/T 0681.18-2020
Configuration
Standard Instrument, vacuum pump, micro printer, test chamber
Optional Calibrated flow meter, customized test chamber, positive specimen, negative specimen
