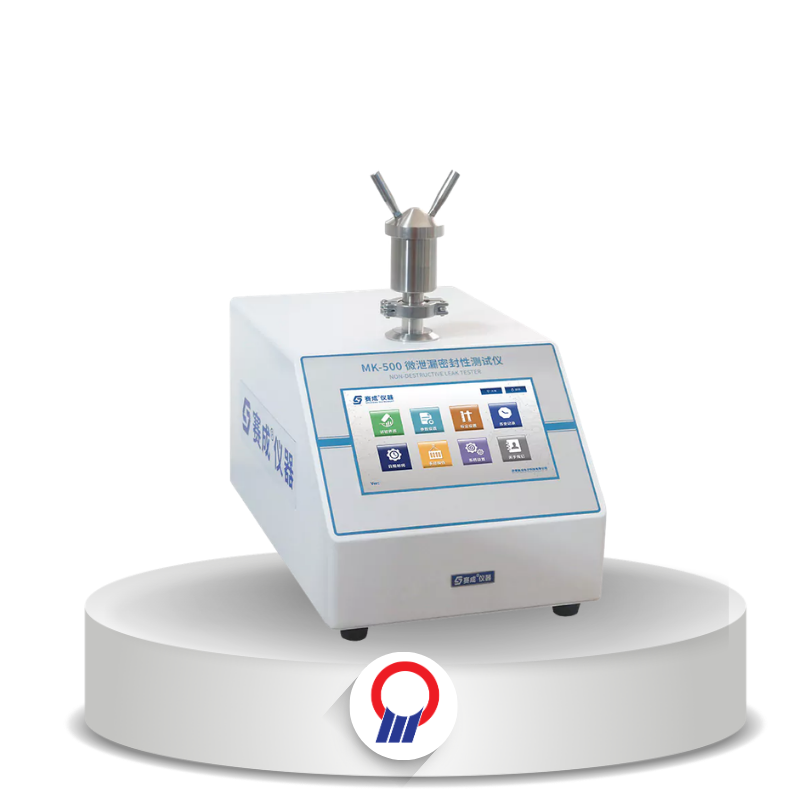

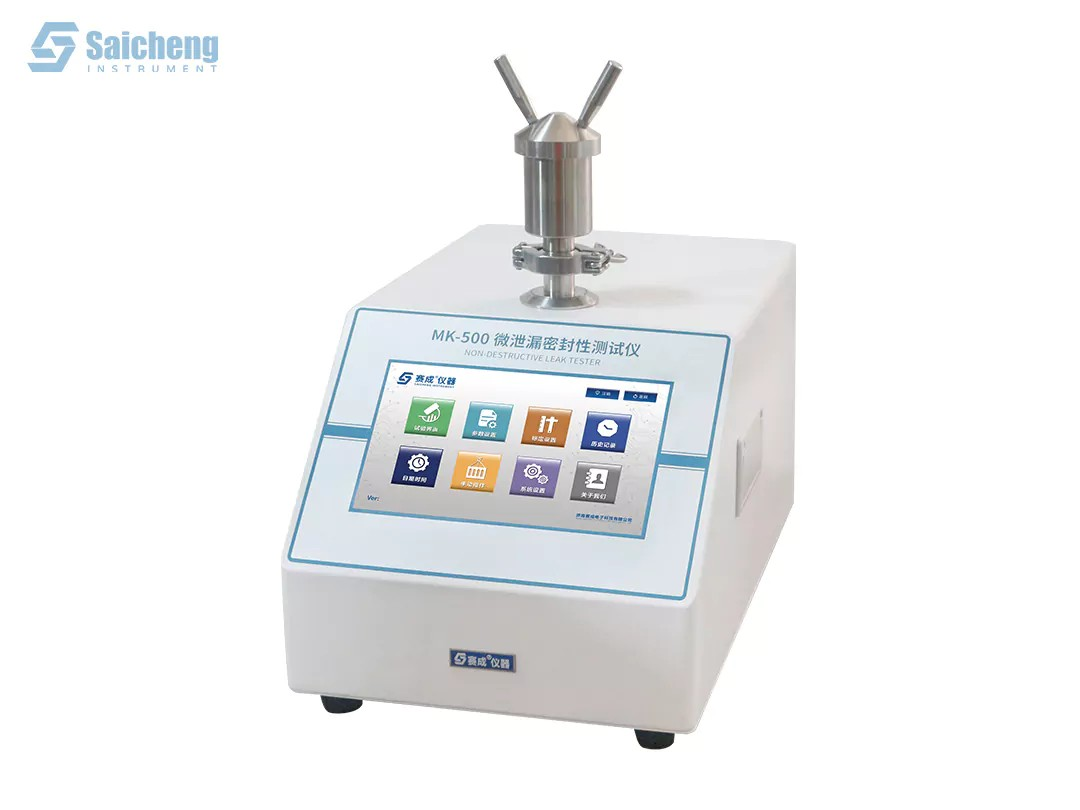

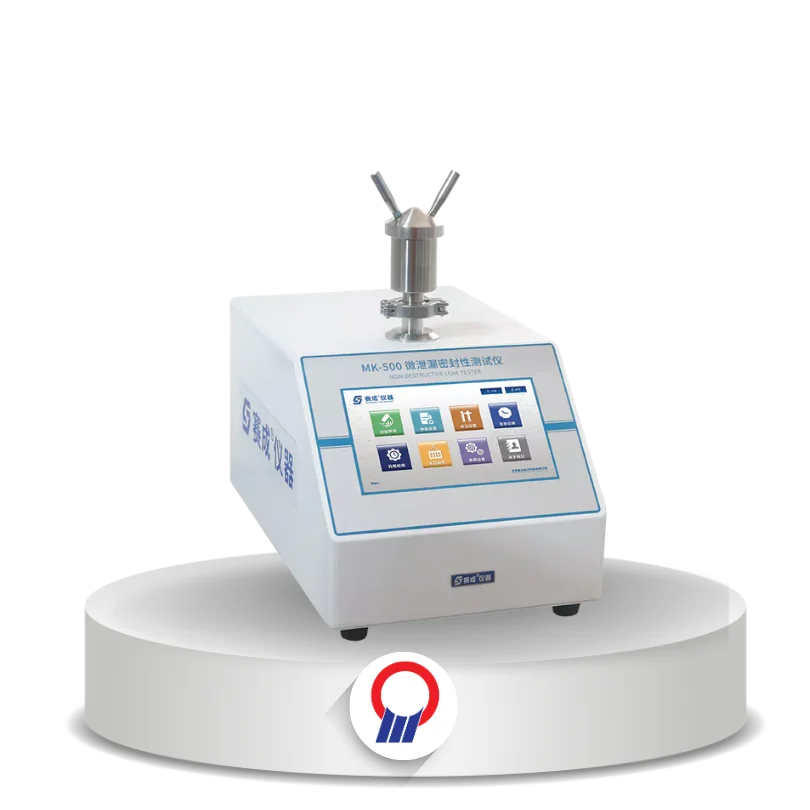

Vacuum Decay Leak Tester MK-500
Saicheng

Vacuum Decay Leak Tester MK-500

Overview

Alat uji kebocoran metode penurunan vakum (vacuum decay) non-destruktif untuk ampul, vial, botol injeksi, botol injeksi bubuk liofilisasi, dan kemasan pra-isi.

Fitur Utama

  • Metode vacuum decay non-destruktif: sampel dapat dipakai ulang
  • Teknologi dual-sensor dengan sensitivitas deteksi 1–2 µm
  • Waktu uji kurang dari 30 detik dengan penilaian lulus/gagal otomatis
  • Ruang uji dapat diganti sesuai sampel
  • Statistik hasil otomatis (yield dan distribusi normal); laporan dapat diekspor ke Excel dan PDF
  • Mendukung kebutuhan GMP: hak akses bertingkat dan jejak audit
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Specification
Application Ampoule, vial, injection bottle, pre-filled package
Test Method Vacuum decay method (non-destructive test)
Test Chamber Customization per samples
Vacuum Degree 0 ~ -100 kPa
Testing System Dual-sensor technology
Detection Sensitivity 1 ~ 2 µm in diameter
Test Time Less than 30 s
Vacuum Source Vacuum pump
Environment Temperature 15°C ~ 30°C
Relative Humidity Up to 80%RH, no condensation
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension 320 mm (W) x 520 mm (D) x 350 mm (H)
Net Weight 20 kg
Test Standards ASTM F2338-13, USP 1207, YY/T 0681.18-2020
Configuration
Standard Instrument, vacuum pump, micro printer, test chamber
Optional Professional software, 485 communication cable, calibrated flow meter, customized test chamber, positive specimen, negative specimen
