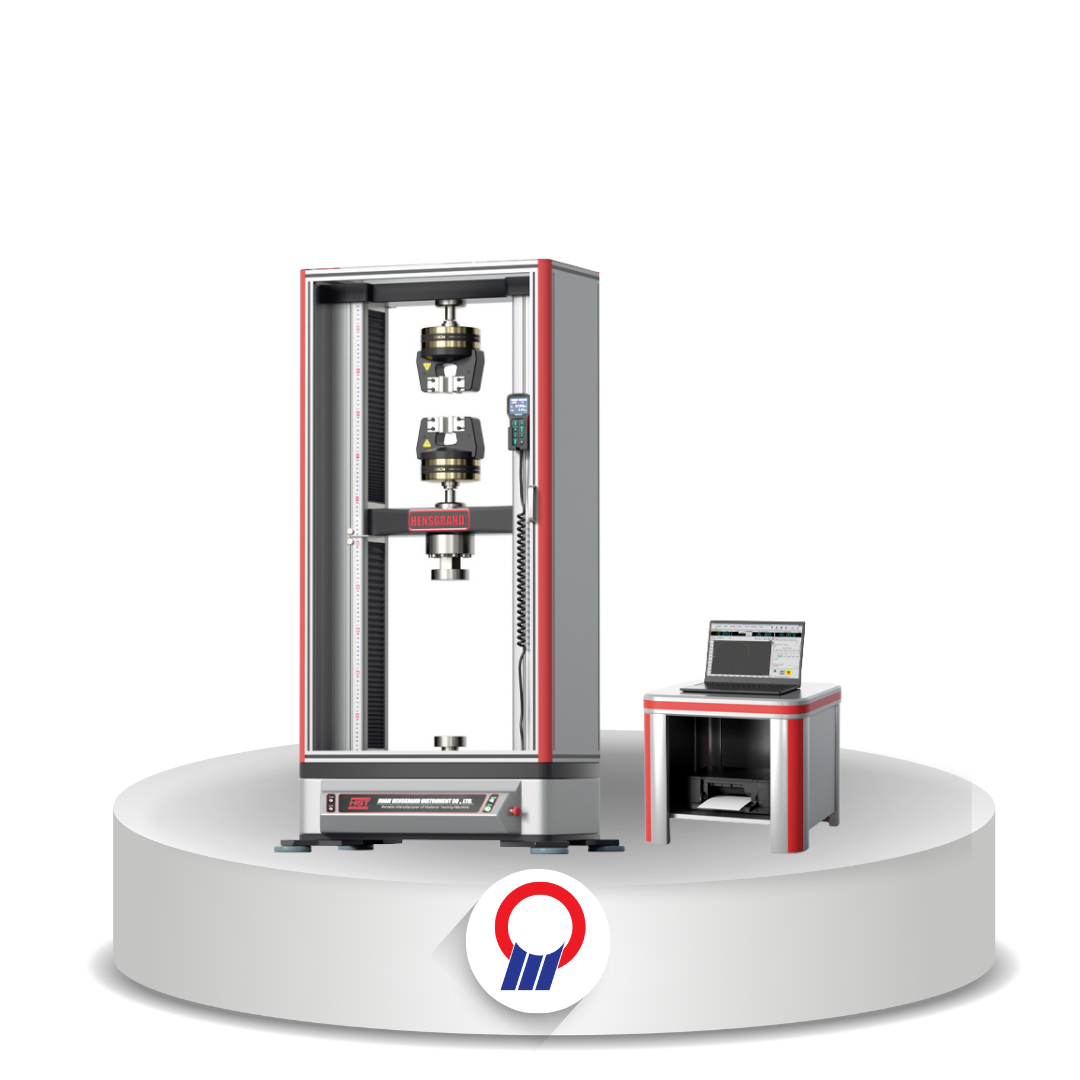

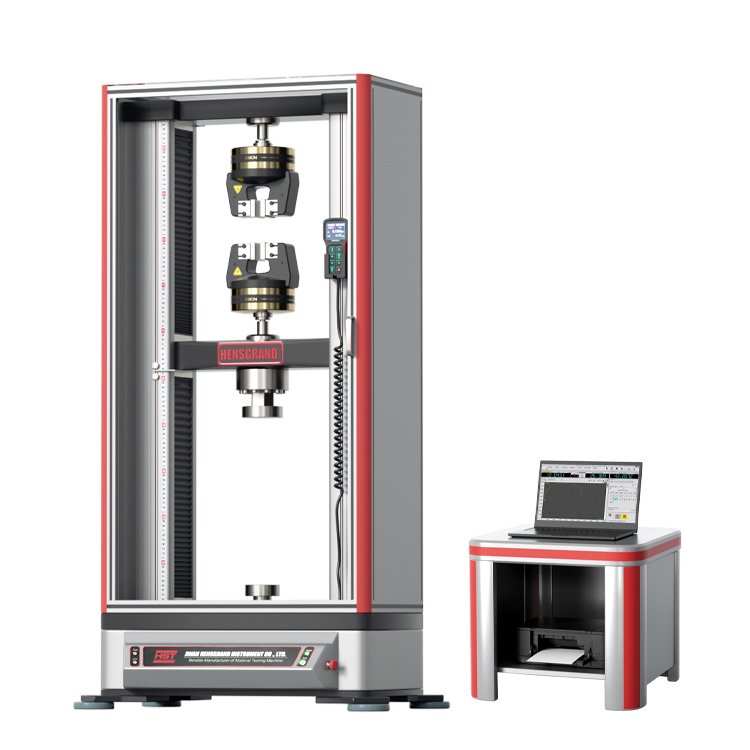

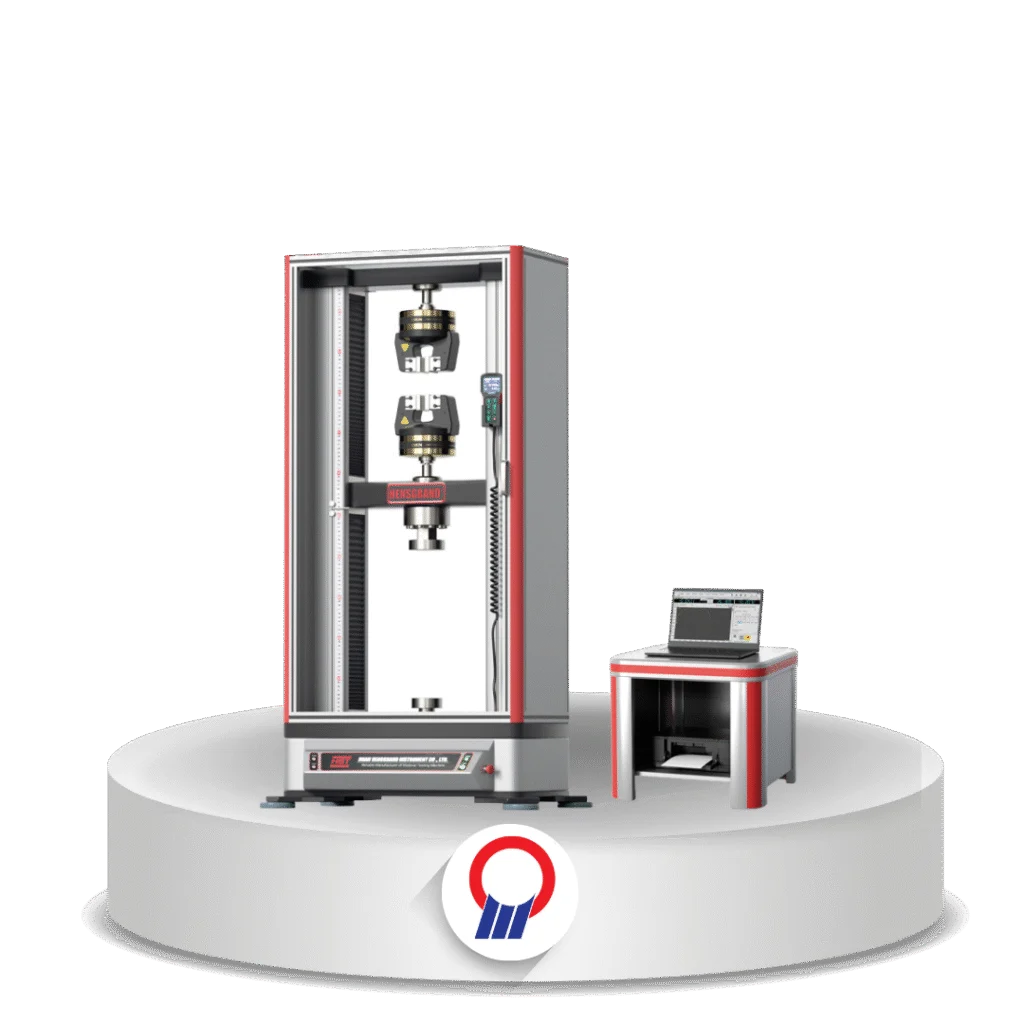

Tensile Compression Strength Tester For Fiberglass Pipe Tube
HST

Tensile Compression Strength Tester For Fiberglass Pipe Tube

Overview

Mesin uji kekuatan tarik dan tekan pipa/tabung fiberglass (WDW-50E dan WDW-100E) sesuai ASTM D2105.

Fitur Utama

  • Kapasitas 50 kN dan 100 kN
  • Kelas akurasi 0,5; rentang gaya 0,2–100% F·S; resolusi beban 1/300.000
  • Kecepatan uji 0,05–500 mm/menit (stepless)
  • Proteksi overload, over-travel, over-voltage, dan over-current
  • Standar ASTM D2105
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-50E, WDW-100E
Max. Load 50 kN, 100 kN
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/300000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed 0.05 ~ 500 mm/min (stepless arbitrary setting)
Speed Accuracy Within ±1% / ±0.5% of set speed
Tensile Space (mm) WDW-50E: 770
WDW-100E: 650
Compression Space (mm) 1000
Test Width (mm) WDW-50E: 450
WDW-100E: 550
Beam Travel Distance 1100 mm
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards ASTM D2105
Safety Protections Overload, over-travel, over-voltage, over-current
