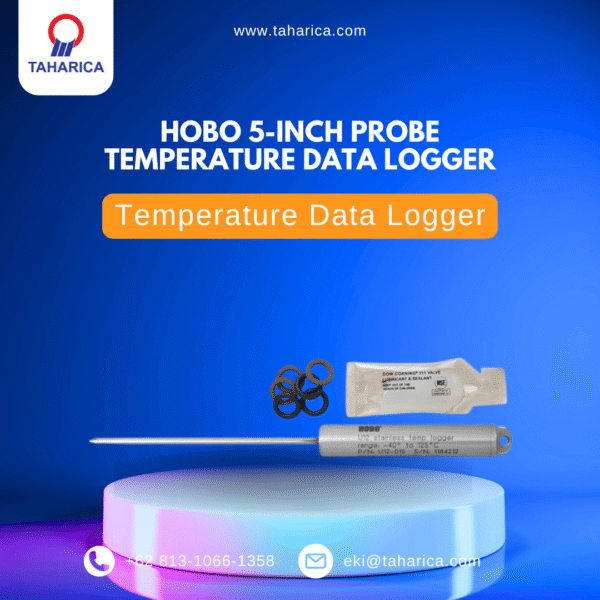

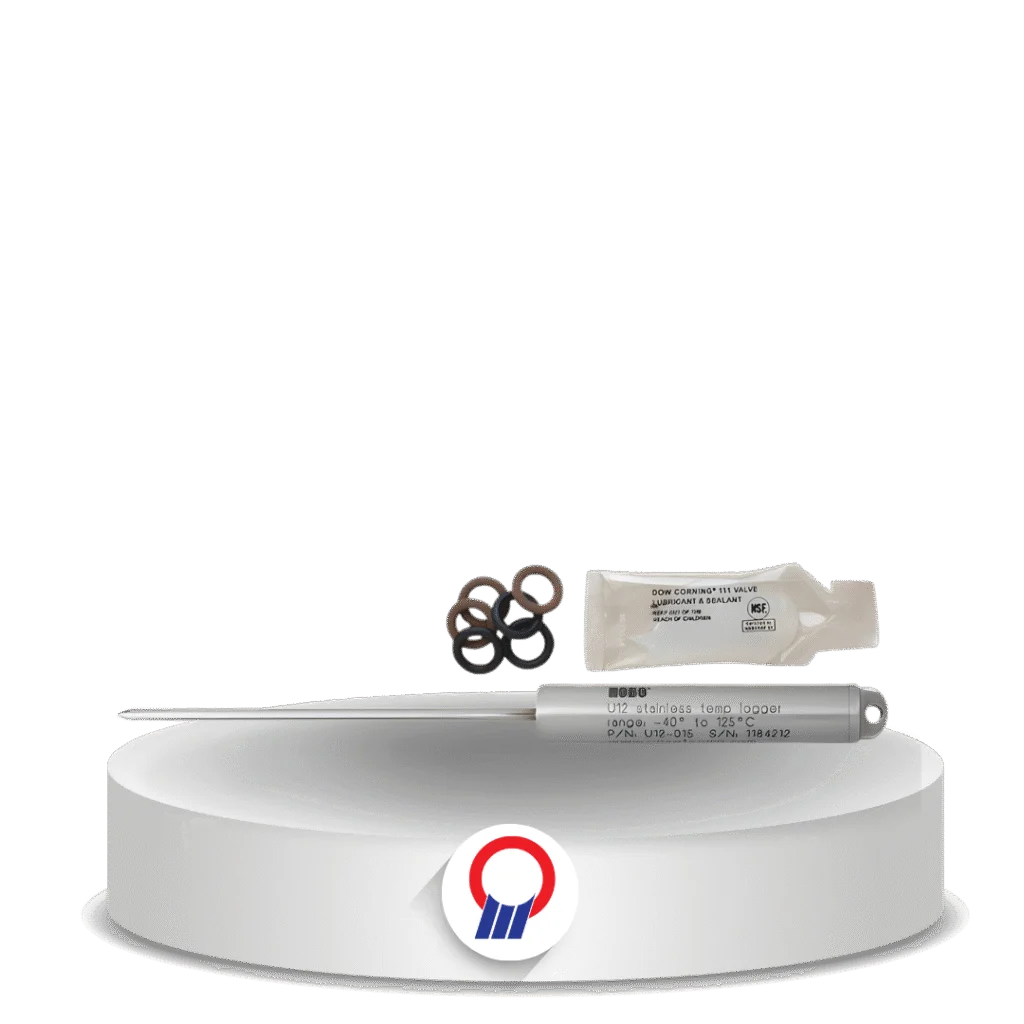

Temperature Data Logger HOBO 5-Inch Probe – U12-015-02
HOBO

Temperature Data Logger HOBO 5-Inch Probe – U12-015-02

Overview

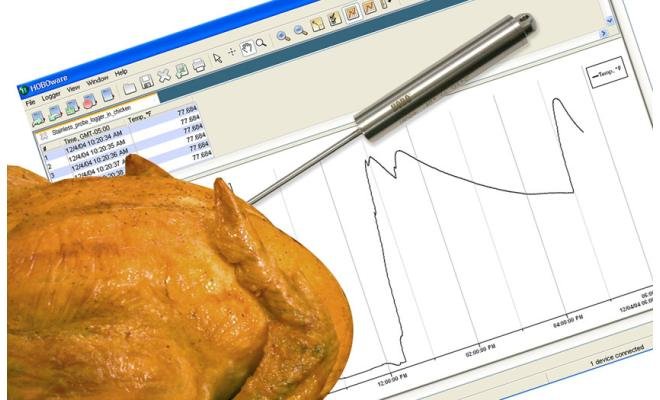

Data logger suhu stainless steel dengan probe 5 inci, untuk mengukur suhu di dalam bahan atau lokasi yang perlu ditusuk, misalnya pada aplikasi pangan dan farmasi.

Fitur Utama

  • Probe stainless steel 5 inci (4 x 124 mm) untuk respons cepat
  • Rentang suhu −40 sampai 125°C
  • Housing stainless steel 316, memenuhi pedoman FDA untuk aplikasi pangan
  • Resolusi 12-bit dan antarmuka USB langsung
  • Memori 43.000 pengukuran
  • Tahan tekanan sampai 2.200 psi (1.500 m)
Tanya via WhatsApp
Merk
HOBO
Kategori
Temperature & RH Logger

Spesifikasi & Penerapan

Aplikasi
Commercial Building Logistic & Storage

Detail Produk

Specification Value
Temperature
Measurement Range -40° to 125°C
Accuracy ±0.25°C from 0° to 50°C
Resolution 0.03°C at 25°C
Drift 0.05°C/year + 0.1°C/1000 hrs above 100°C
Time Accuracy ±2 minutes per month at 25°C
Operating Environment Air, water, steam, 0 to 100% RH
Response and Size — U12-015-02 (with 5-inch probe)
Response Time in Air 2.25 minutes typical to 90% in 1 m/s airflow
Response Time in Water 20 seconds typical to 90%
Weight 82 g
Logger Dimensions 17.5 x 101.6 mm
Probe Dimensions 4 x 124 mm
Logger
Memory 64 KB (43,000 12-bit measurements)
Battery Life 3 years typical use, factory replaceable
Operating Temperature Logging: -40° to 125°C; launch/readout: 0° to 50°C (USB)
Pressure/Depth Rating 2,200 psi (1,500 m / 4,900 ft) maximum
Construction 316 series stainless steel; EPDM or Viton O-ring
NIST Certificate Available for additional charge; -30° to 120°C
