HST

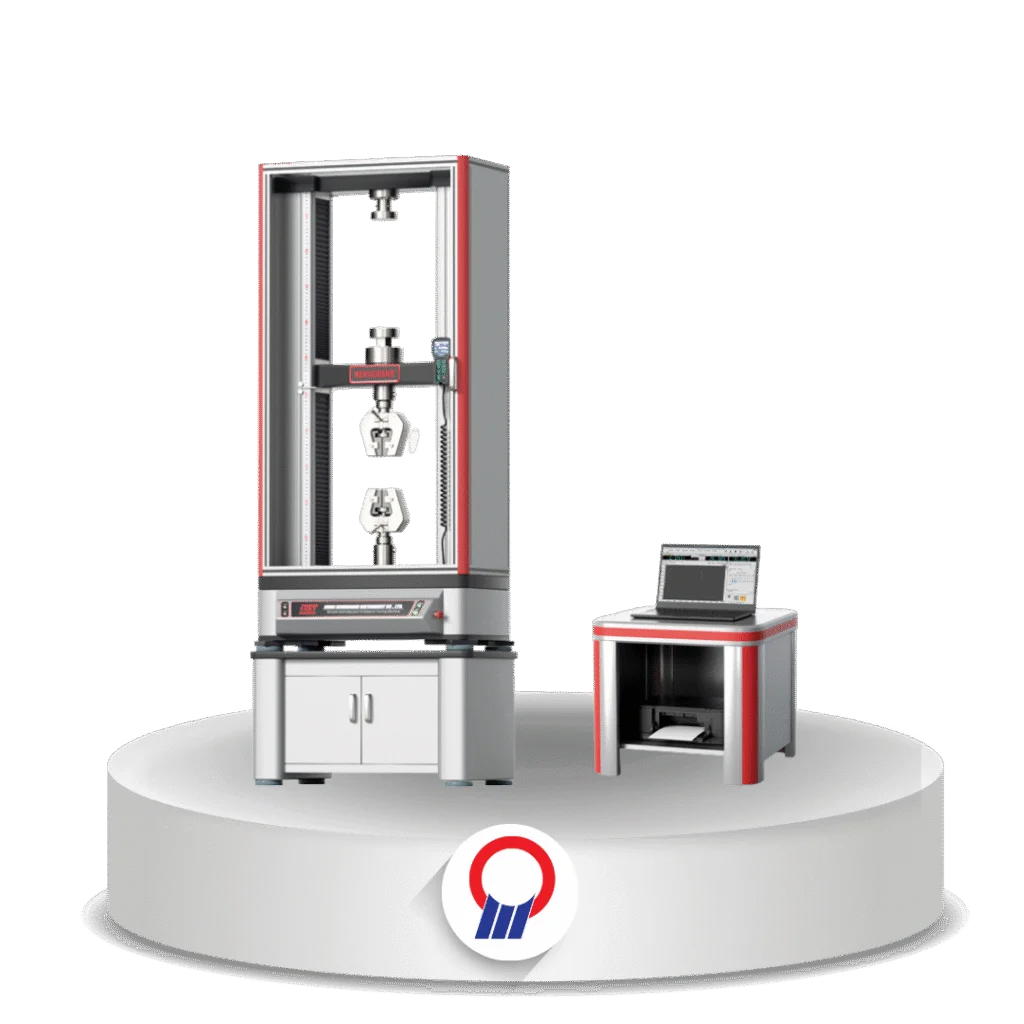

Table Type 5kN 10kN 20kN computer control electronic universal testing Machine with pneumatic side wedge grip

Overview

Mesin uji universal elektromekanis (komputer) untuk uji tarik, tekan, lentur, geser, sobek, dan kupas dengan kendali loop tertutup gaya, perpindahan, atau deformasi. Tipe meja (table type) dengan penjepit pneumatik side wedge.

Fitur Utama

Kapasitas 5 kN, 10 kN, 20 kN, 30 kN dan 50 kN
Kelas akurasi gaya 0.5, resolusi gaya 1/500000
Resolusi perpindahan 0,01 mm; kesalahan perpindahan dalam ±0,5% dari beban
Tipe meja dengan penjepit pneumatik side wedge
Kecepatan uji 0,05–1.000 mm/menit (stepless)

Tanya via WhatsApp

Merk: HST
Kategori: Electronic Universal Testing Machine

Detail Produk

Specification	Value
Specification
Models	WDW-5E, WDW-10E, WDW-20E, WDW-30E, WDW-50E
Max. Load	5 kN, 10 kN, 20 kN, 30 kN, 50 kN
Load Accuracy	Class 0.5
Load Range	0.2% ~ 100% F·S
Load Resolution	1/500000
Resolution of Deformation	0.04 µm
Accuracy of Displacement	Within ±0.5% of indicating load
Resolution of Displacement	0.01 mm
Test Speed (mm/min)	0.05-1000 (stepless)
Tensile Space (mm)	WDW-5E: 670 WDW-10E: 670 WDW-20E: 670 WDW-30E: 770 WDW-50E: 770
Compression Space (mm)	WDW-5E: 900 WDW-10E: 900 WDW-20E: 900 WDW-30E: 1000 WDW-50E: 1000
Test Width (mm)	WDW-5E: 450 WDW-10E: 450 WDW-20E: 450 WDW-30E: 550 WDW-50E: 550
Beam Travel Distance (mm)	WDW-5E: 1000 WDW-10E: 1000 WDW-20E: 1000 WDW-30E: 1100 WDW-50E: 1100
Power Supply	AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards	ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
