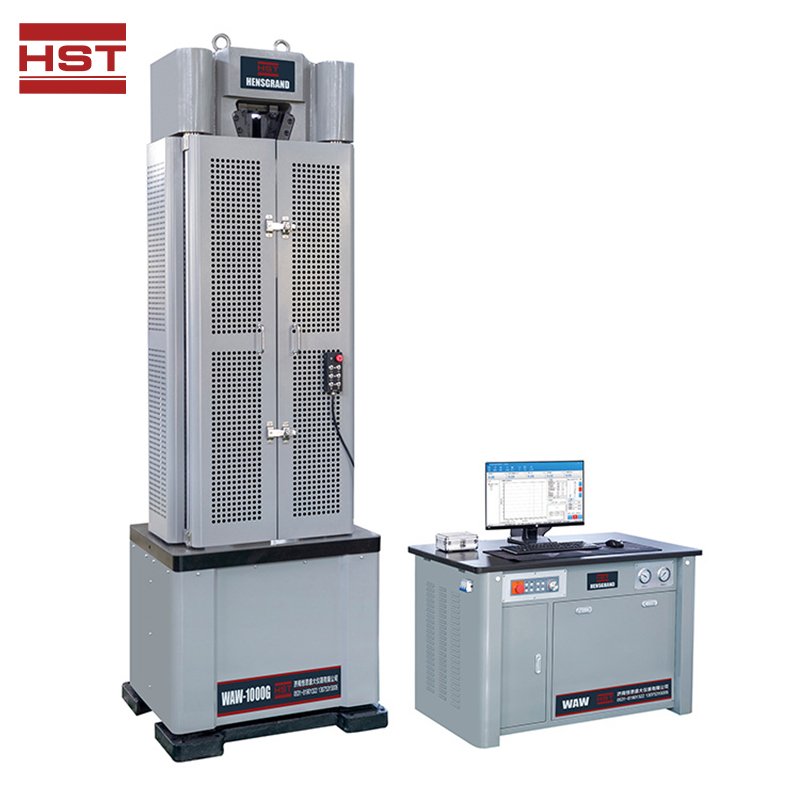

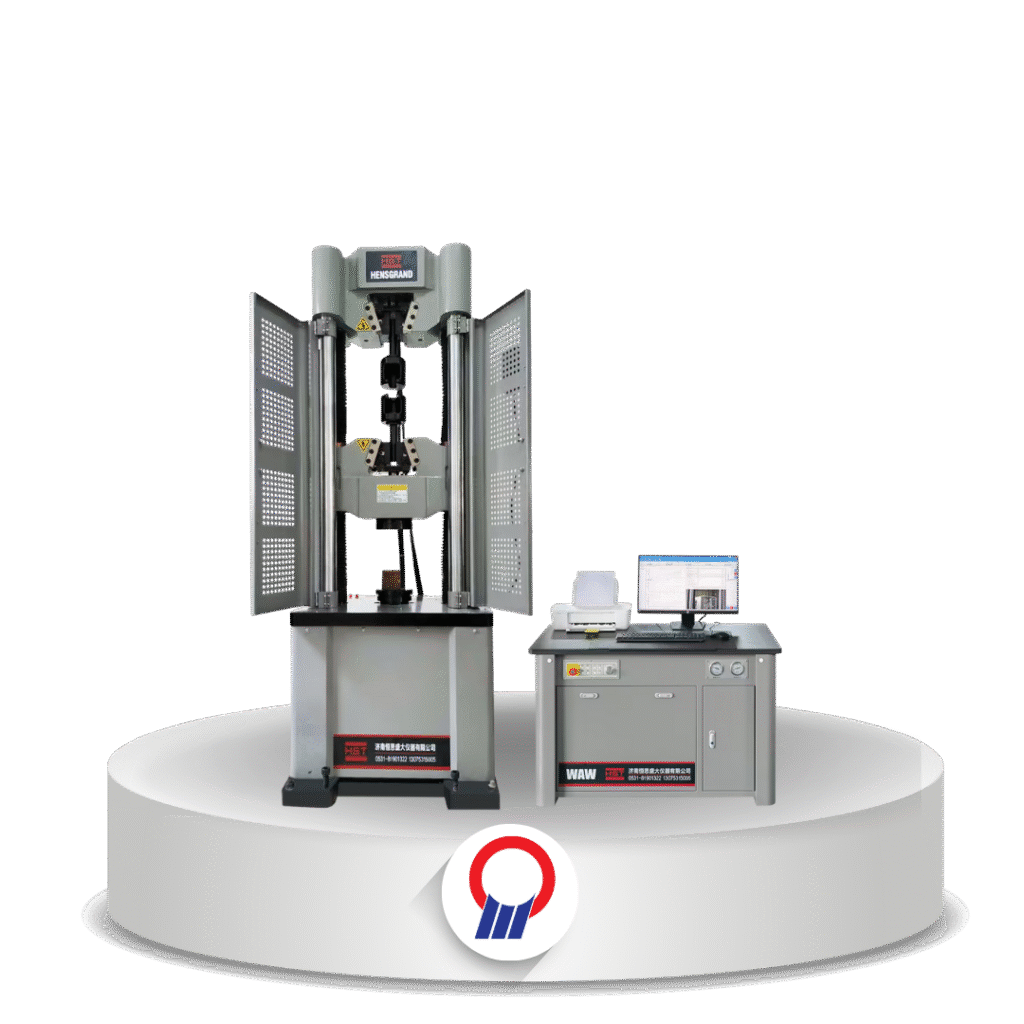

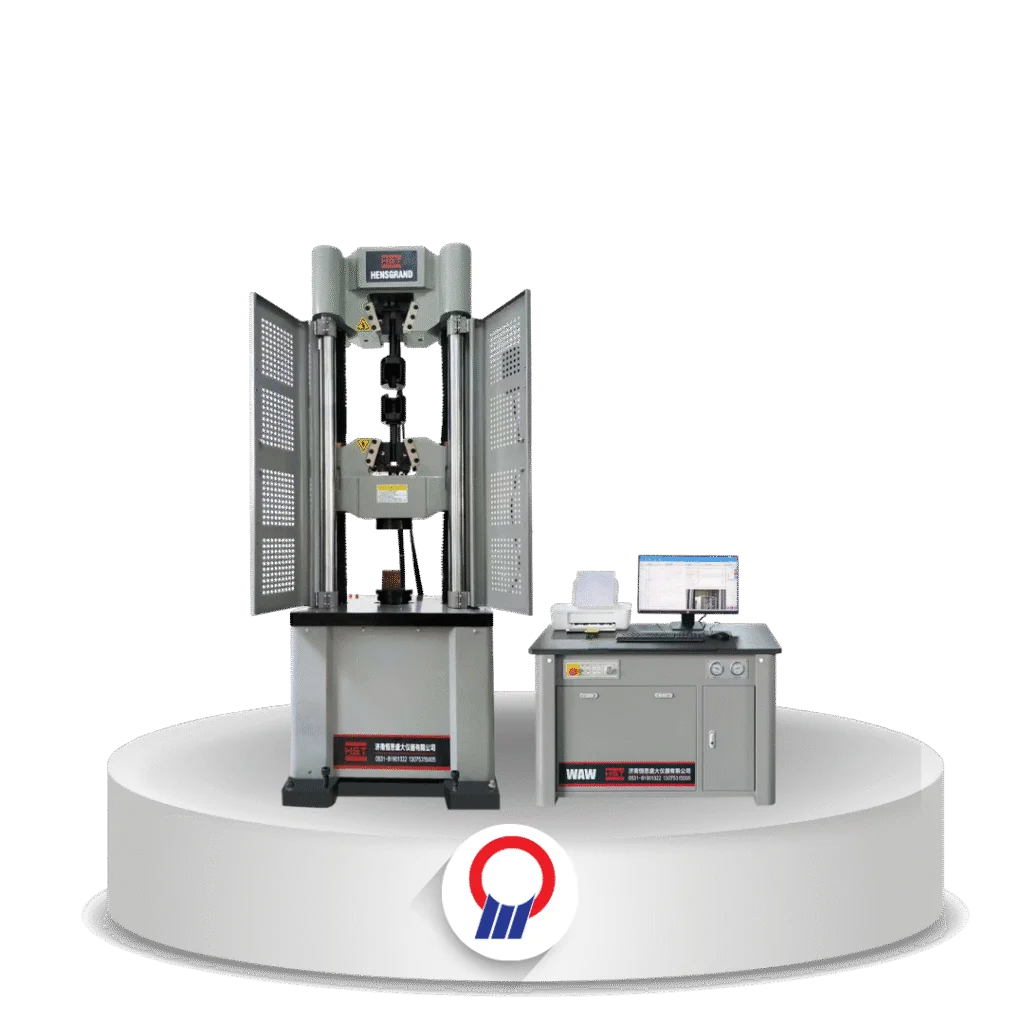

Servo Controlled Bolt Tensile Testing Machine
HST

Servo Controlled Bolt Tensile Testing Machine

Overview

Mesin uji universal hidrolik servo untuk uji tarik, tekan, lentur, dan geser material logam dengan kendali komputer. Mesin uji tarik baut terkendali servo, seri WAW dari 100 sampai 2.000 kN.

Fitur Utama

  • Enam kapasitas: 100, 300, 600, 1.000, 1.200, dan 2.000 kN
  • Kontrol tiga loop tertutup; akurasi beban ≤ ±0,5%
  • Resolusi beban 1/500.000; resolusi perpindahan 0,01 mm
  • Klem hidrolik otomatis; pelat tekan Φ160 mm
  • Kecepatan uji 0,1–123 mm/menit (100–600 kN) dan 0,1–70 mm/menit (1.000–2.000 kN)
  • Catu daya 3 fase AC 380 V 50 Hz
Tanya via WhatsApp
Merk
HST
Kategori
Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WAW-100E, WAW-300E, WAW-600E, WAW-1000E / WAW-1000G, WAW-1200E, WAW-2000E
Max. Load (kN) 100, 300, 600, 1000, 1200, 2000
Testing Speeds (mm/min) 100E: 0.1~118
300E: 0.1~123
600E: 0.1~123
1000E/1000G: 0.1~70
1200E: 0.1~70
2000E: 0.1~70
Adjustable Crosshead Speed (mm/min) 100E, 300E: 450
600E, 1000E: 350
1200E, 2000E: 320
Max. Piston Stroke (mm) 100E, 300E, 600E: 200
1000E/1000G: 200/250
1200E, 2000E: 250
Max. Tension Test Space (mm) 100E, 300E: 780
600E: 900
1000E/1000G: 950/980
1200E: 930
2000E: 1250
Max. Compression Test Space (mm) 100E, 300E: 550
600E: 650
1000E: 700
1200E: 640
2000E: 850
Column Effective Spacing (mm) 100E, 300E: 485
600E: 500
1000E/1000G: 560/580
1200E: 610
2000E: 800
Flat Specimen Clamping Width (mm) 100E, 300E: 80 x 80
600E: 90 x 90
1000E: 100 x 100
1200E: 120 x 110
2000E: 150 x 120
Control Way Constant stress, uniform deformation, constant displacement three closed loop control and program control
Number of Screw Drivers 4
Load Accuracy ≤ ±0.5%
Load Range 1% ~ 100% FS
Load Resolution 1/500000
Deformation Measurement Range 1% ~ 100% FS
Deformation Accuracy ≤ ±1%
Displacement Resolution 0.01 mm
Displacement Error ≤ ±0.5%
Clamping Method Hydraulic automatic clamp
Compression Plate Size Φ160 mm
Bending Roller Distance 450 mm
Width of Bending Rollers 120 mm
Power Supply 3-phase, AC 380V, 50Hz (can be customized)
Standards ISO 7500-1, ASTM A370, ASTM E4, ASTM E8, BS EN
