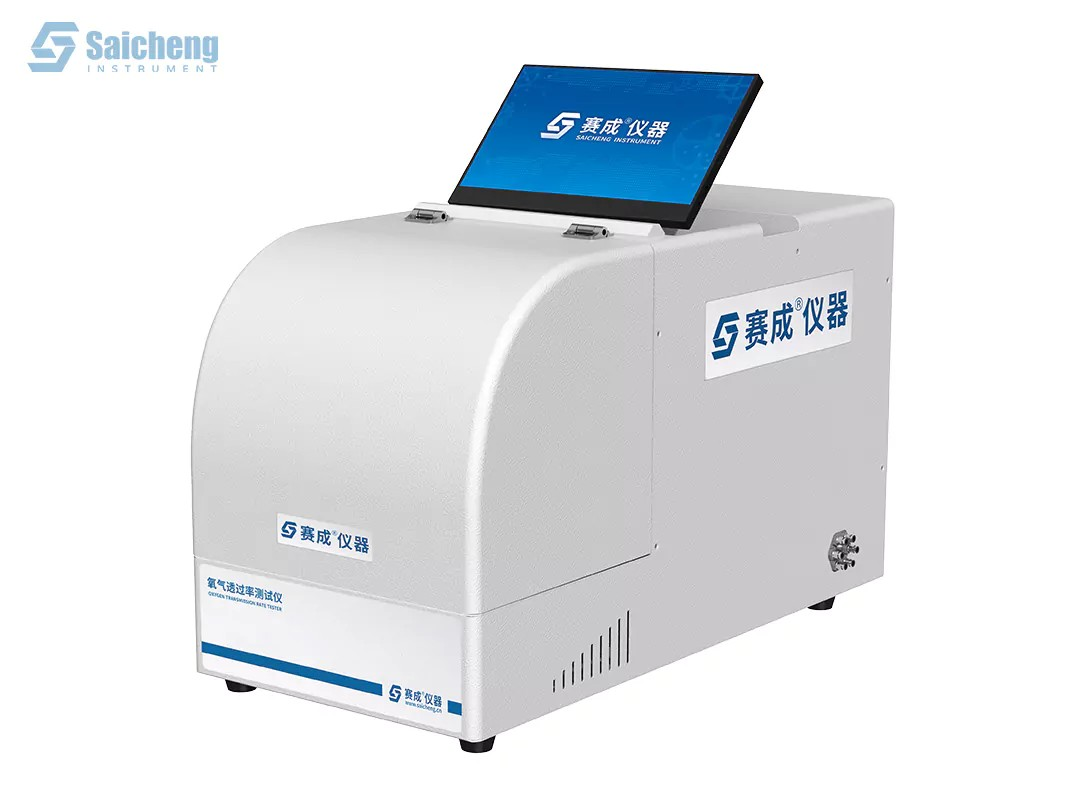

S403H Oxygen Transmission Rate Tester
Saicheng

S403H Oxygen Transmission Rate Tester

Overview

Alat uji laju transmisi oksigen (OTR) berbasis sensor coulometrik untuk bahan penghalang tingkat menengah dan tinggi, seperti film plastik, film komposit, lembaran, kertas, dan bahan kemasan untuk industri makanan, farmasi, alat kesehatan, produk konsumen, dan elektronik.

Fitur Utama

  • Tiga spesimen dapat diuji secara independen dalam satu kali operasi
  • Rentang uji film 0,01–200 cm³/(m²·hari) (standar), resolusi 0,001
  • Suhu uji 10–60°C dengan akurasi ±0,1°C; kelembapan 0%RH, 5–90%RH, dan 100%RH

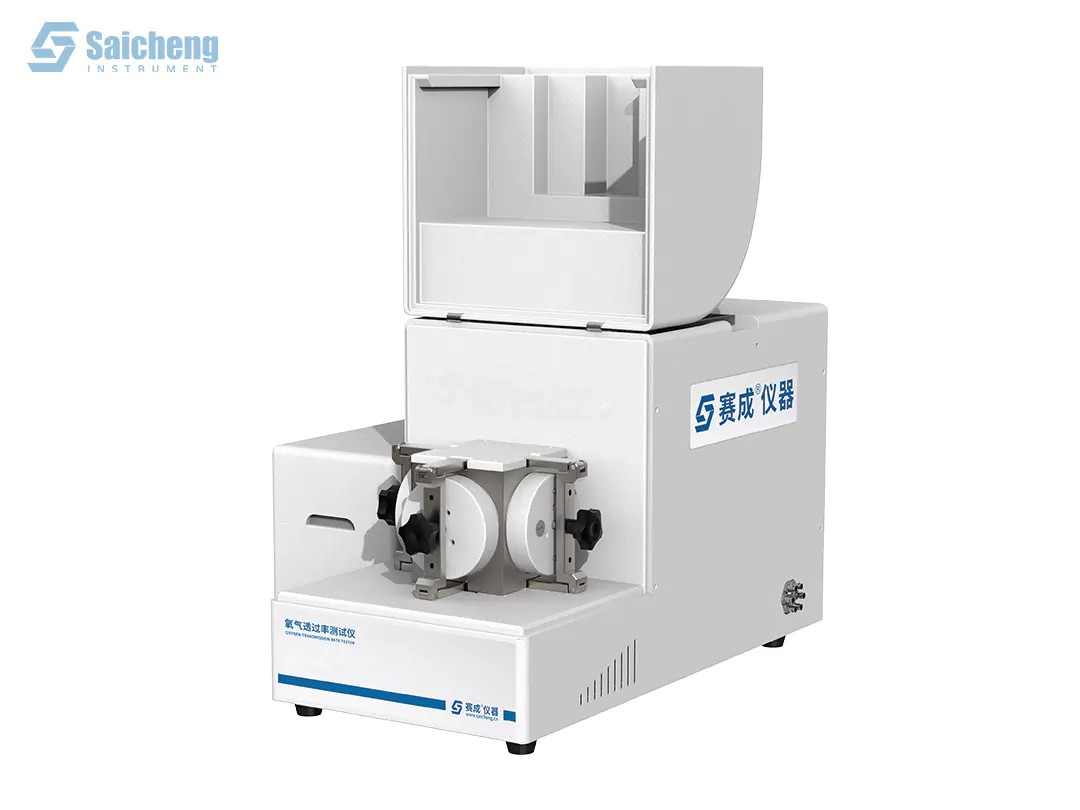

  • Tiga sel difusi dengan suhu dan kelembapan yang sama
  • Layar sentuh tablet 13 inci (Windows 10) dengan manajemen pengguna dan tanda tangan elektronik
  • Sesuai ASTM D3985; opsi pengujian kemasan (container) dan film referensi untuk kalibrasi cepat
Tanya via WhatsApp
Merk
Saicheng
Kategori
Barrier & Leak Tester

Detail Produk

Specification Value
Film Test
Test Range 0.01 ~ 200 cm³/(m²·day) (standard); 0.01 ~ 28,800 cm³/(m²·day) (optional); at least 400,000 cm³/(m²·day) (customization), standard area 50 cm²
Resolution 0.001 cm³/(m²·day)
Humidity Range 0%RH, 5% ~ 90%RH, 100%RH within the standard test temperature range
Temperature Range 10 ~ 60°C
Temperature Accuracy ±0.1°C
Package Test (Optional)
Test Range 0.00005 ~ 1 cm³/(pkg·day) (standard); 0.00005 ~ 144 cm³/(pkg·day) (optional); at least 2,000 cm³/(pkg·day) (customization)
Resolution 0.00001 cm³/(pkg·day)
Temperature Range Ambient ~ 60°C
Temperature Accuracy ±0.1°C
General
Number of Specimens 3
Sample Size 97 mm x 97 mm (customization available)
Sample Thickness ≤3 mm
Test Area 50 cm²
Test Gas 99.5% oxygen (outside of supply scope)
Carrier Gas 99.999% nitrogen (outside of supply scope)
Port Size 1/8-inch metal tubing
Instrument Dimension 580 mm (W) x 750 mm (D) x 460 mm (H)
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Net Weight 72 kg
Test Standards ASTM D3985, ASTM F1307, ASTM F1927, ISO 15105-2, DIN 53380-3, JIS K7126-2-B, GB/T 19789, GB/T 31354, YBB 00082003-2015
Configuration
Standard Instrument, tablet, professional software, network cable, diamond-shaped sampler, vacuum grease, 1/8-inch metal tubing, nitrogen pressure reducing valve, humidity control system

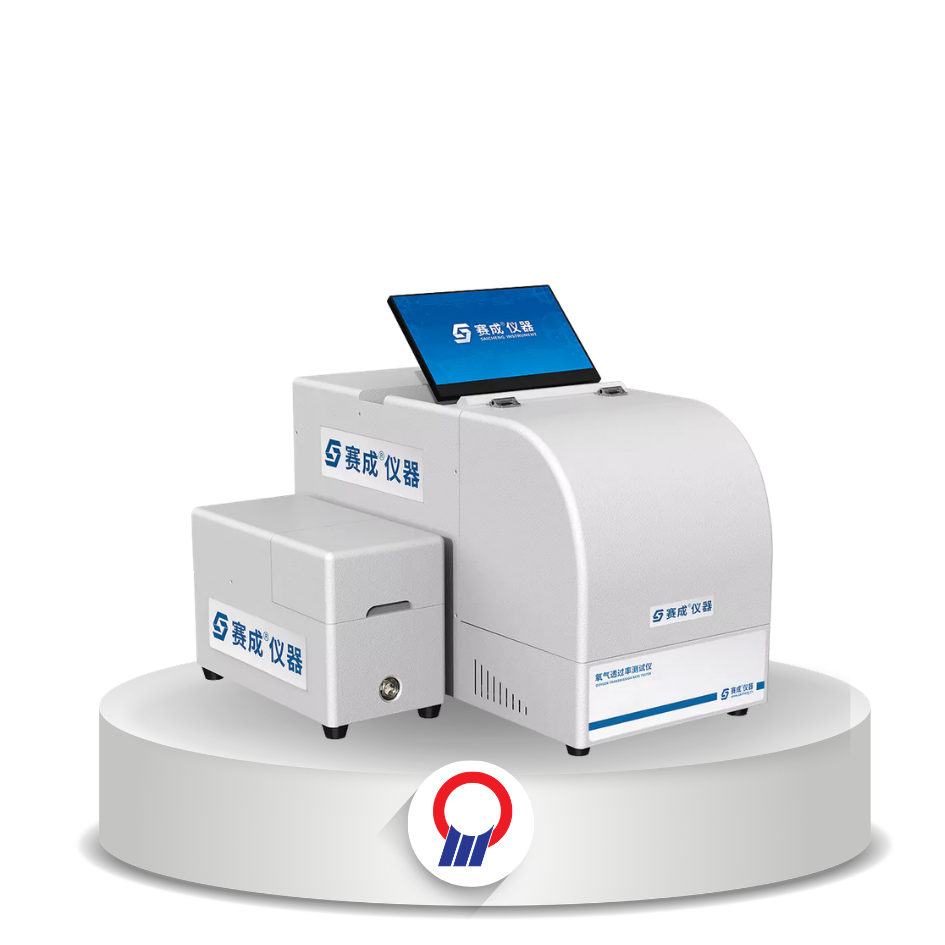

Optional Reference film, container testing device, container temperature control device
