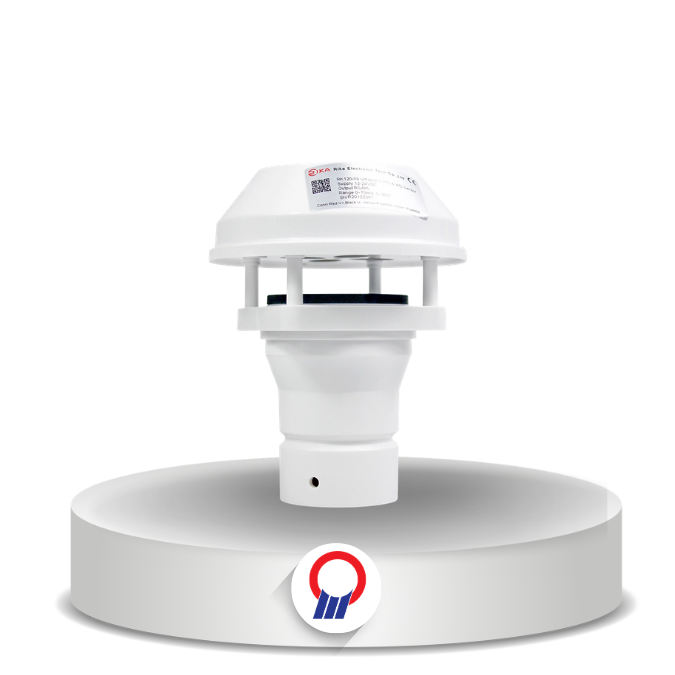

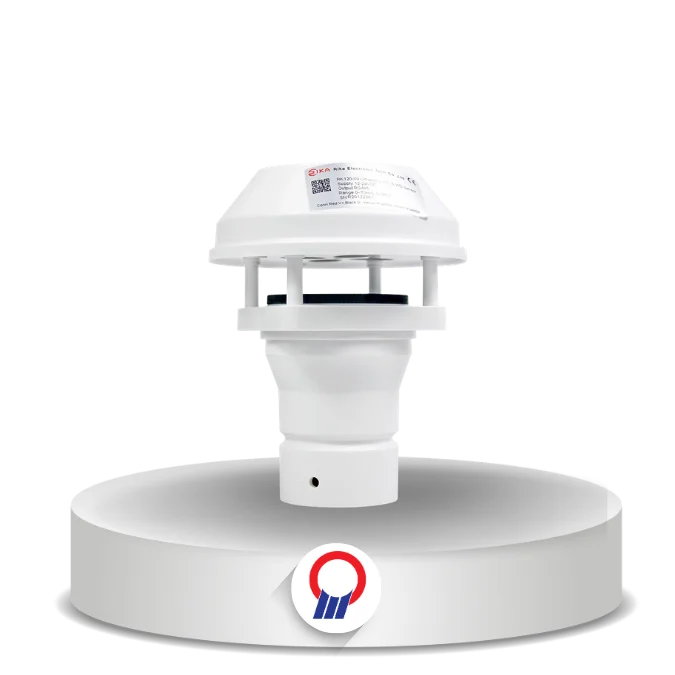

RK120-09 Ultrasonic Wind Speed Direction Sensor
Rika

RK120-09 Ultrasonic Wind Speed Direction Sensor

Overview

Sensor kecepatan dan arah angin ultrasonik berdaya rendah (0,3 W) dengan rentang hingga 70 m/s, cocok untuk sistem tenaga surya atau baterai.

Fitur Utama

  • Rentang kecepatan angin 0–70 m/s dan arah 0–359°
  • Konsumsi daya hanya 0,3 W
  • Tanpa bagian bergerak dan perlakuan anti-karat
  • Output RS232/RS485 (Modbus/NMEA-0183), 4–20 mA atau 0–5 V opsional
  • Rentang suhu operasi −40 sampai 80°C
  • Cocok untuk stasiun cuaca, kelautan, jembatan dan terowongan, serta pembangkit surya dan angin
Tanya via WhatsApp
Merk
Rika
Kategori
Wind Sensor

Spesifikasi & Penerapan

Aplikasi
Agriculture & Plantation Environment

Detail Produk

Specification Value
Measurement
Wind Speed Range 0-70 m/s
Wind Speed Resolution 0.1 m/s
Wind Speed Accuracy 3%
Wind Direction Range 0-359°
Wind Direction Resolution 1°
Wind Direction Accuracy ±3°
System
Power Supply 5 V, 12-24 VDC
Power Consumption 0.3 W
Output Signal RS232/RS485 (Modbus/NMEA-0183); 4-20 mA / 0-5 V optional (wind speed and direction only, 12-24 V supply)
Operating Temperature -40° to +80°C
Ingress Protection IP65
Dimension Ø110 x 140 mm
Weight 0.18 kg (unpacked)
Main Material ASA
