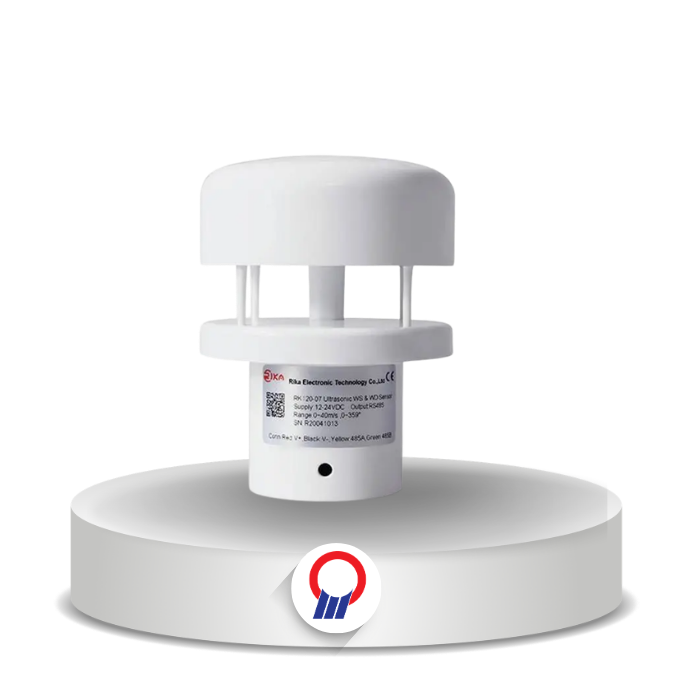

RK120-07 Mini Ultrasonic Anemometer, Ultrasonic Wind Speed Direction Sensor
Rika

RK120-07 Mini Ultrasonic Anemometer, Ultrasonic Wind Speed Direction Sensor

Overview

Anemometer ultrasonik mini untuk kecepatan dan arah angin, memakai selisih waktu gelombang ultrasonik di udara. Konsumsi daya hanya 0,2 W sehingga cocok untuk sistem tenaga surya atau baterai.

Fitur Utama

  • Konsumsi daya hanya 0,2 W
  • Tanpa bagian bergerak, perlakuan anti-karat pada permukaan
  • Output RS232/RS485 (Modbus/NMEA-0183) dan SDI-12
  • Modul suhu dan tekanan atmosfer opsional
  • Struktur kompak dan ringan
  • Cocok untuk stasiun cuaca, pertanian, kelautan, dan pemantauan sumber daya angin
Tanya via WhatsApp
Merk
Rika
Kategori
Wind Sensor

Spesifikasi & Penerapan

Aplikasi
Agriculture & Plantation Environment

Detail Produk

Specification Value
Wind Speed
Range 0-40 m/s
Resolution 0.1 m/s
Accuracy ≤10 m/s: ±0.2 m/s; >10 m/s: <±2% of current value
Starting Threshold 0.1 m/s
Extreme Wind Speed 60 m/s
Wind Direction
Range 0-360°
Resolution 1°
Accuracy ±3°
Atmospheric Pressure (optional)
Range 150-1100 hPa
Resolution 0.1 hPa
Accuracy ±1 hPa
System
Power Supply 12-24 VDC
Power Consumption 0.2 W
Output Signal RS232/RS485 (Modbus/NMEA-0183), SDI-12
Operating Temperature -30° to +60°C
Ingress Protection IP65
Heating Power 3 W max
Dimension Ø82 x 108 mm
Weight 0.8 kg (unpacked)
Main Material Anti-radiation ABS engineering plastic
