RK120-03 Ultrasonic Wind Sensor
Rika

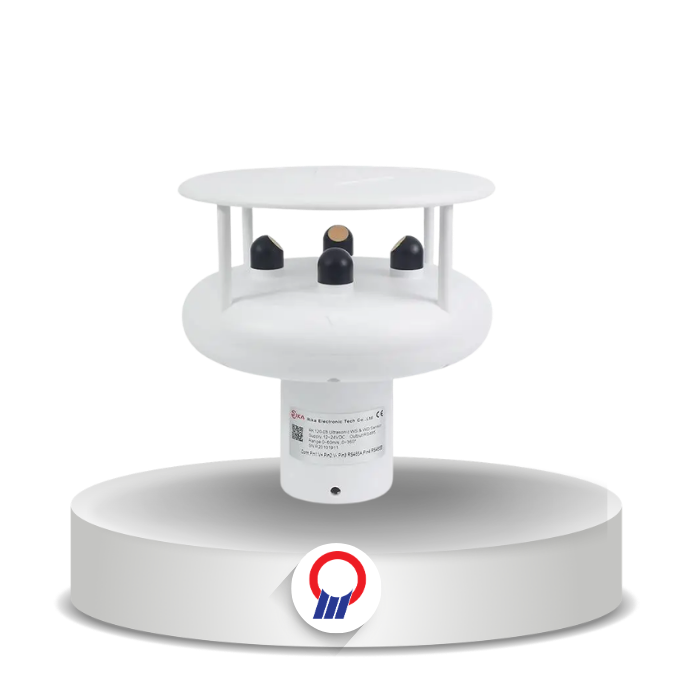

RK120-03 Ultrasonic Wind Sensor

Overview

Sensor kecepatan dan arah angin ultrasonik digital tanpa bagian bergerak, dengan unit pengolah sinyal bawaan. Dirancang tetap akurat di cuaca ekstrem dan perawatan rendah.

Fitur Utama

  • Tanpa bagian bergerak: umur pakai panjang
  • Perlakuan anti-karat pada permukaan dan tahan interferensi
  • Pemanas anti-beku otomatis
  • Output RS232/RS485 (Modbus/NMEA-0183), 4–20 mA opsional untuk kecepatan dan arah
  • Kompas elektronik dan sensor tekanan atmosfer opsional
  • Cocok untuk stasiun cuaca, pertanian, kelautan, jembatan dan terowongan, serta pembangkit surya dan angin
Tanya via WhatsApp
Merk
Rika
Kategori
Wind Sensor

Spesifikasi & Penerapan

Aplikasi
Agriculture & Plantation Environment

Detail Produk

Specification Value
Wind Speed
Range 0-45 m/s or 0-60 m/s
Resolution 0.01 m/s
Accuracy ≤10 m/s: ±0.2 m/s; >10 m/s: <±2% of current value
Starting Threshold 0.1 m/s
Extreme Wind Speed 60 m/s
Wind Direction
Range 0-360°
Resolution 1°
Accuracy ±3°
Starting Threshold 0.1 m/s
Atmospheric Pressure (optional)
Range 150-1100 hPa
Resolution 0.1 hPa
Accuracy ±1 hPa
System
Power Supply 12-24 VDC
Power Consumption <1 W (heating off); <3 W (heating on)
Output Signal RS232/RS485 (Modbus/NMEA-0183); 4-20 mA (wind speed and direction only) optional
Operating Temperature -30° to +70°C
Ingress Protection IP66
Heating Power 3 W max
Dimension Ø145 x 138 mm
Weight 0.8 kg (unpacked)
Main Material Anti-radiation ABS engineering plastic
