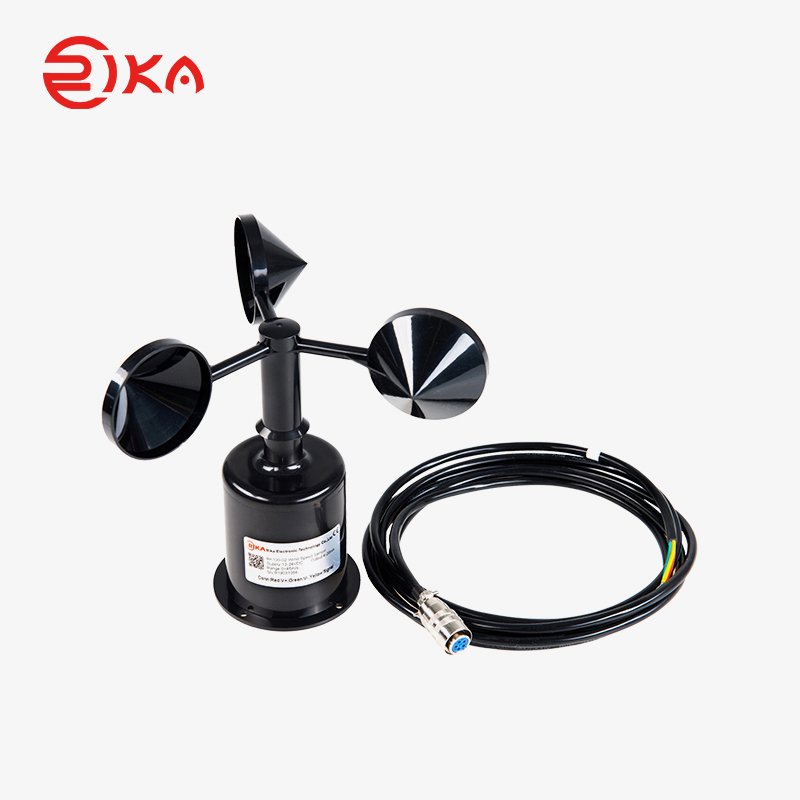

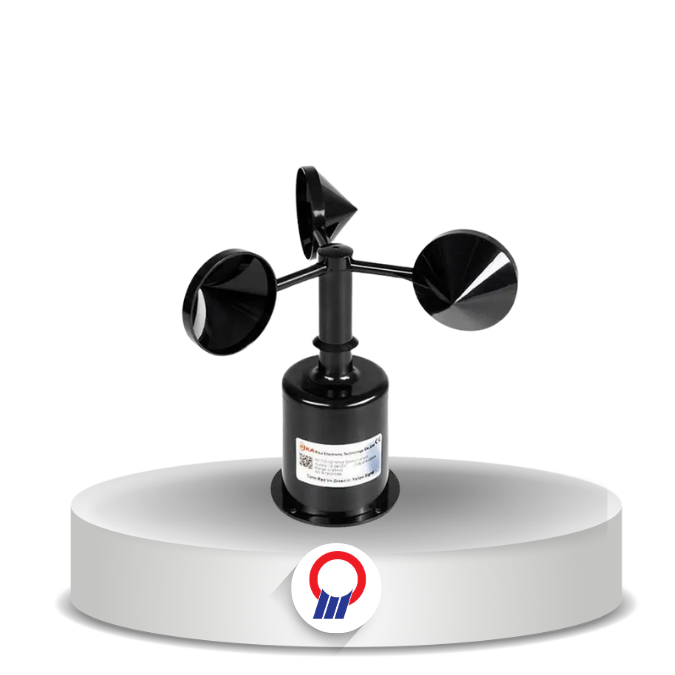

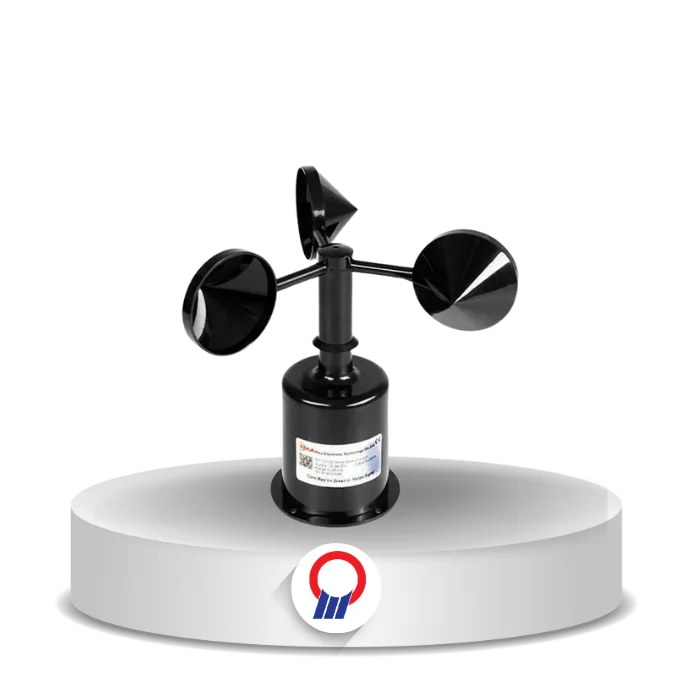

RK100-02 Plastic Wind Speed Sensor Wind Anemometer
Rika

RK100-02 Plastic Wind Speed Sensor Wind Anemometer

Overview

Sensor kecepatan angin cup berbahan plastik/serat karbon ringan, dengan beberapa pilihan keluaran sinyal.

Fitur Utama

  • Rentang kecepatan angin 0–45 m/s dan resolusi 0,1 m/s
  • Akurasi ±(0,3 + 0,03V) m/s dan ambang awal di bawah 0,5 m/s
  • Pilihan keluaran pulsa, 4–20 mA, 0–5 V, atau RS485
  • Proteksi IP65, suhu operasi −40 sampai 50°C
  • Cup serat karbon, bobot sekitar 170 g
  • Batas kecepatan angin 50 m/s
Tanya via WhatsApp
Merk
Rika
Kategori
Wind Sensor

Spesifikasi & Penerapan

Aplikasi
Agriculture & Plantation Environment

Detail Produk

Specification Value
Specification
Measuring Range 0-45 m/s
Accuracy ±(0.3 + 0.03V) m/s, V = current wind speed
Resolution 0.1 m/s
Starting Threshold <0.5 m/s
Limit Wind Speed 50 m/s
Output Pulse, 4-20 mA, 0-5 V, RS485
Supply 5 V or 12-24 V depending on output
Ingress Protection IP65
Operating Temperature -40° to +50°C
Cup Material Carbon fiber
Weight 170 g
