RK100-01G Wind Speed Sensor (High-Strength)
Rika

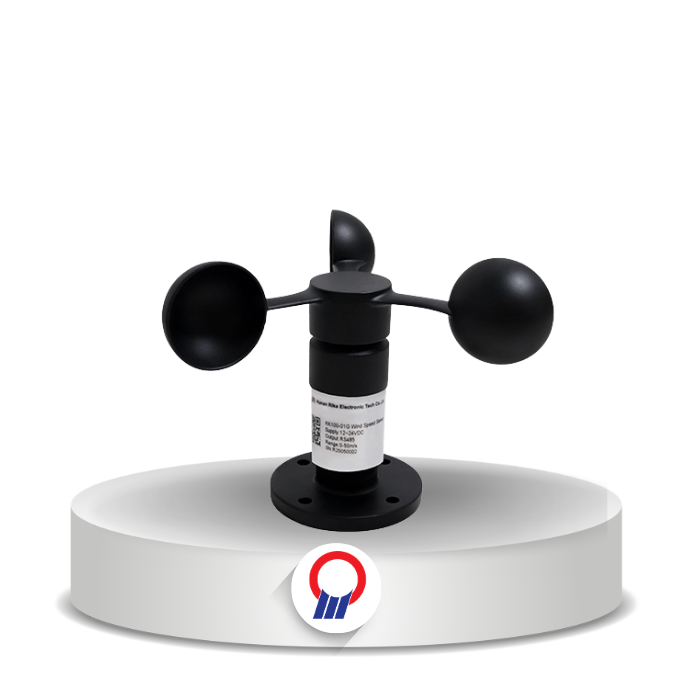

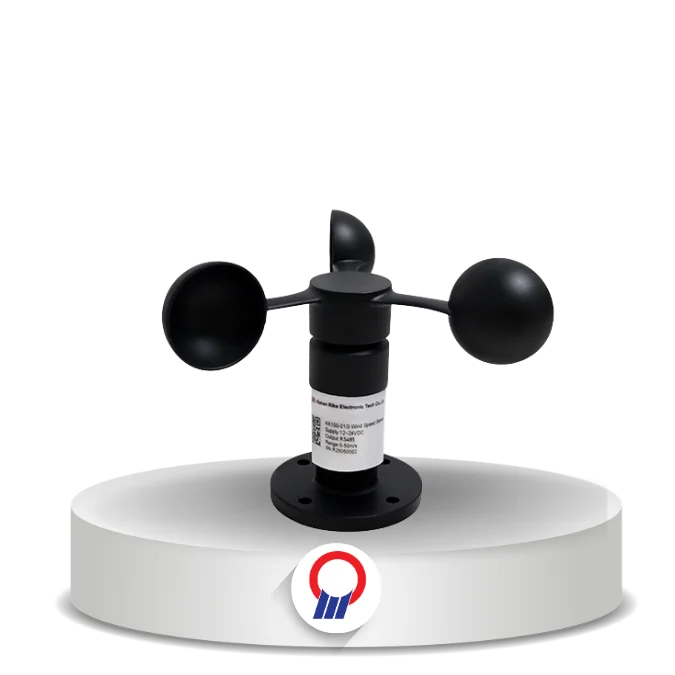

RK100-01G Wind Speed Sensor (High-Strength)

Overview

Sensor kecepatan angin cup (high-strength) berhousing aluminium, tahan beban angin tinggi, dengan beberapa pilihan keluaran.

Fitur Utama

  • Tiga pilihan rentang: 0–30, 0–50, atau 0–60 m/s
  • Akurasi ±(0,3 + 0,03V) m/s dengan ambang awal 0,2 m/s
  • Tahan kecepatan angin batas 70 m/s
  • Keluaran RS485, 4–20 mA, atau pulsa
  • Housing aluminium berlapis powder coating, konektor M12 tahan air
  • Proteksi IP65, suhu operasi −30 sampai 70°C
Tanya via WhatsApp
Merk
Rika
Kategori
Wind Sensor

Spesifikasi & Penerapan

Aplikasi
Agriculture & Plantation Environment

Detail Produk

Specification Value
Specification
Measuring Range 0-30 m/s, 0-50 m/s, or 0-60 m/s
Accuracy ±(0.3 + 0.03V) m/s, V = measured wind speed
Resolution 0.1 m/s
Starting Threshold 0.2 m/s
Limit Wind Speed 70 m/s
Response Time <1 s
Output Signal RS485, 4-20 mA, or pulse (pulse high level depends on supply voltage)
Supply Voltage 12-24 VDC (5-24 VDC for pulse output)
Ingress Protection IP65
Operating Temperature -30° to +70°C
Weight 410 g (unpacked, excluding wires)
Main Material / Finish Aluminum alloy; black polyester powder coating
Connector M12 waterproof
