PT HPC-30 | Compression Load Cell
PT Loadcell

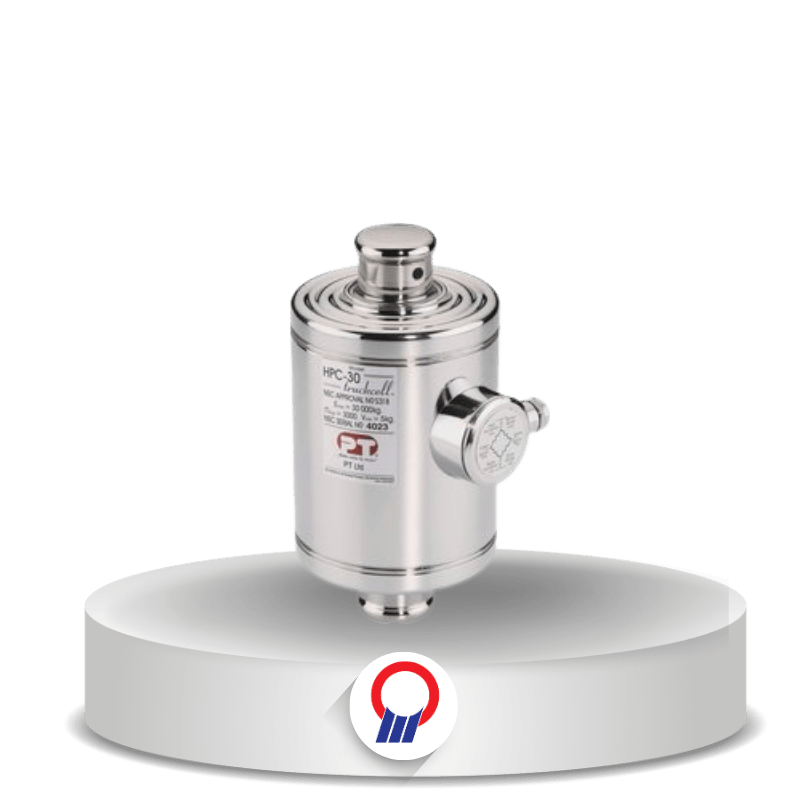

PT HPC-30 | Compression Load Cell

Overview

Load cell kompresi presisi tinggi PT HPC kapasitas 30 ton untuk jembatan timbang dan timbangan truk, dengan bodi stainless steel dan peredam lonjakan opsional.

Fitur Utama

  • Kapasitas 30 ton (varian 45 ton tersedia)
  • Bodi stainless steel las tahan korosi dengan mekanisme anti-rotasi dan gas inert
  • Keluaran 2 ±0,02 mV/V; error kombinasi < 0,023% FSO
  • Versi IP67 dan versi IP68 dengan peredam lonjakan (surge arrestor)
  • Kabel 6 inti berpelindung anyaman 12 m (sense line)
  • Garansi tiga tahun dan sertifikat akurasi yang dapat ditelusuri lewat nomor seri
Tanya via WhatsApp
Merk
PT Loadcell
Kategori
Load Cell

Spesifikasi & Penerapan

Aplikasi
Logistic & Storage

Detail Produk

Specification Value
Specification
Nominal Capacity 30 t and 45 t
Service Load 100% capacity
Signal Output at Capacity 2 ±0.02 mV/V
Safe Load 150% capacity
Ultimate Load 300% capacity
Linearity Error < 0.02% FSO
Non-Repeatability < 0.010% FSO
Combined Error < 0.023% FSO
Hysteresis < 0.023% FSO
Creep (30 mins.) < 0.020% FSO
Tilt (maximum sideways travel) 7.5 mm from centre
Zero Balance < 1% capacity
Temperature Effect on Span (/10°C) < 0.010% FSO
Temperature Effect on Zero (/10°C) < 0.015% FSO
Input Resistance 750 Ω ±10 Ω
Output Resistance 704 Ω matched ±0.2 Ω
Insulation Resistance > 5000 MΩ (@50 VDC)
Excitation Voltage (Rec.) 5 ~ 18 V AC/DC
Excitation Voltage (Max.) 20 V AC/DC
Operating Temperature Range -30 ~ 65°C
Compensated Temperature Range -10 ~ 50°C
Storage Temperature Range -50 ~ 85°C
Cable 12 m long, 7.5 mm dia., 6 core x 0.24 mm² (24 AWG) PE, braid screen, PUR sheath
Material Alloy / stainless steel
Sealing IP67 (HPM030TT); IP68 with surge arrestors (HPM030TS)
Ordering
HPC-30t HPM030TT000XXX (IP67); HPM030TS000XXX (IP68, surge arrestors)
Accessories Load receptors A-HPCREC, retainer plates A-HPCRET, earthing strap A-HPCETH, full mounting set A-HPCAR
