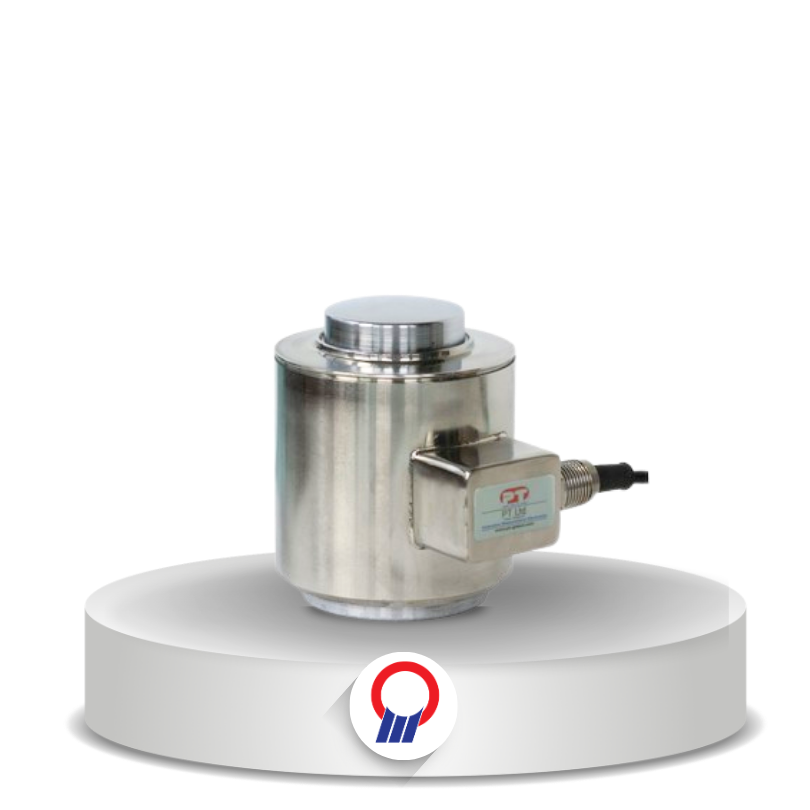

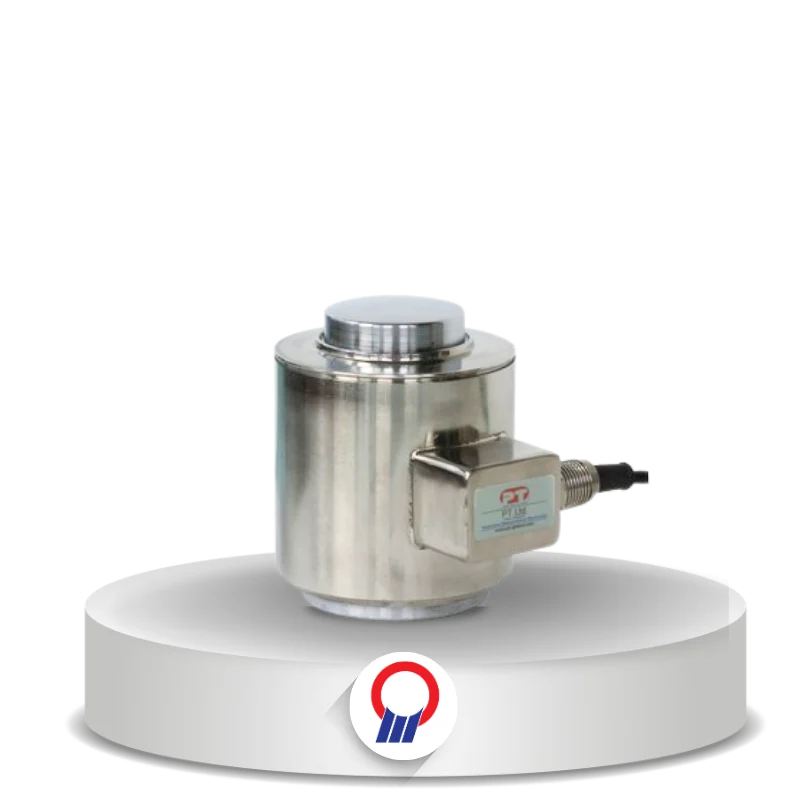

Load cell kompresi berkapasitas tinggi PT HCC berbodi stainless steel tertutup penuh (IP68), kapasitas 90 sampai 450 ton, untuk penimbangan tangki dan hopper.
| Specification | Value |
|---|---|
| Specification | |
| Capacity | 90 t, 180 t, 225 t, 450 t |
| Signal Output at Capacity | 2 ±0.01 mV/V |
| Service Load | 100% capacity |
| Safe Load | 120% capacity |
| Ultimate Load | 300% capacity |
| Safe Side Load | 10% of axial load |
| Linearity Error | < 0.03% FSO |
| Non-Repeatability | < 0.010% FSO |
| Combined Error | < 0.030% FSO |
| Hysteresis | < 0.030% FSO |
| Creep (30 mins.) | < 0.020% FSO |
| Zero Balance | < 1% capacity |
| Temperature Effect on Span (/10°C) | < 0.02% FSO |
| Temperature Effect on Zero (/10°C) | < 0.02% FSO |
| Input Resistance | 450 Ω ±5 Ω |
| Output Resistance | 480 Ω ±3 Ω |
| Insulation Resistance | > 5000 MΩ (@50 VDC) |
| Excitation Voltage (Rec.) | 9 ~ 12 V AC/DC |
| Excitation Voltage (Max.) | 15 V AC/DC |
| Operating Temperature Range | -35 ~ 65°C |
| Compensated Temperature Range | -10 ~ 50°C |
| Storage Temperature Range | -50 ~ 85°C |
| Cable | 9 m long, 6.0 mm dia. |
| Material | Alloy / stainless steel |
| Sealing | IP68 |
| Dimensions (mm) and Weight | |
| 90 t / 180 t | A 150.6, B 134.4, C 80.0, D 92.0, E 26.0, F 108.0, H 184.5, R 400, T M20x1.5 25 deep; 14 kg |
| 225 t | A 165.0, B 148.0, C 93.7, D 92.0, E 26.0, F 108.0, H 229.0, R 400, T M20x1.5 25 deep; 23 kg |
| 450 t | A 177.0, B 165.1, C 139.7, D 117.0, E 22.0, F 115.0, H 304.8, R 1143, T M20x1.5 32 deep; 62 kg |
