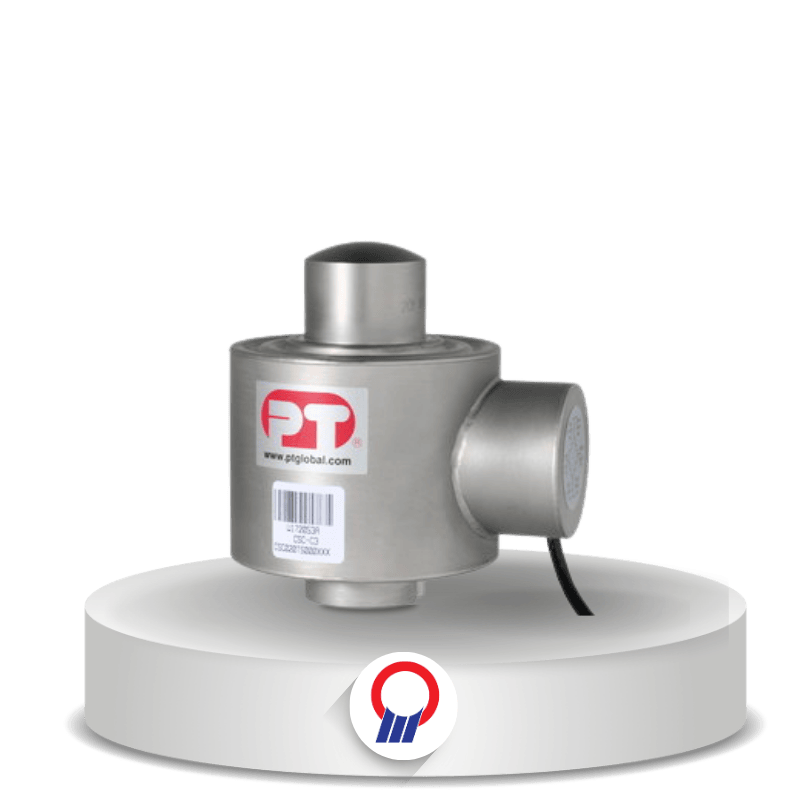

Load cell kompresi stainless steel kompak PT CSC-C3 (kelas C3, IP68) untuk penimbangan tangki, hopper, dan silo, dengan pilihan mounting yang lengkap.
| Specification | Value |
|---|---|
| Specification | |
| Capacity | 5 t, 10 t, 20 t, 25 t, 30 t, 40 t, 50 t |
| Accuracy Class | C3 |
| Signal Output at Capacity | 2 ±0.002 mV/V |
| Service Load | 100% capacity |
| Safe Load | 150% capacity |
| Ultimate Load | 300% capacity |
| Linearity Error | < 0.020% FSO |
| Non-Repeatability | < 0.020% FSO |
| Combined Error | < 0.020% FSO |
| Hysteresis | < 0.020% FSO |
| Creep (30 mins.) | < 0.016% FSO |
| Zero Balance | < 1.0% capacity |
| Temperature Effect on Span (/10°C) | < 0.011% FSO |
| Temperature Effect on Zero (/10°C) | < 0.015% FSO |
| Input Resistance | 700 Ω ±7 Ω |
| Output Resistance | 703 Ω ±4 Ω |
| Insulation Resistance | > 5000 MΩ (@50 VDC) |
| Excitation Voltage (Rec.) | 5 ~ 12 V AC/DC |
| Excitation Voltage (Max.) | 18 V DC |
| Operating Temperature Range | -35 ~ 65°C |
| Compensated Temperature Range | -10 ~ 40°C |
| Storage Temperature Range | -50 ~ 65°C |
| Cable | 15 m, 5 mm dia., 4 core shielded |
| Material | Stainless steel |
| Sealing | IP68 welded sealed |
| Dimensions (mm) and Weight | |
| 5 t to 30 t | A 40.0, B 14.0, C 22.0, D R37.5, E R150; 2.5 kg (5-20 t), 3.0 kg (25-30 t) |
| 40 t, 50 t | A 50.0, B 21.0, C 28.0, D R200, E R200; 3.5 kg |
| Mounting Accessories | |
| Type 1 (M-CSC1) | Ultimate restraining capacity 20 kN laterally |
| Type 2 (M-CSC2) | 50 kN laterally and 100 kN uplift |
| Type 3 (M-CSC3) | Top and bottom plates; moves in any direction |
| Earth Strap | A-HPCETH |
